Line distance protection REL670

Version 2.2

Product guide

Table of Contents

Summary of Contents for ABB Relion 670 Series

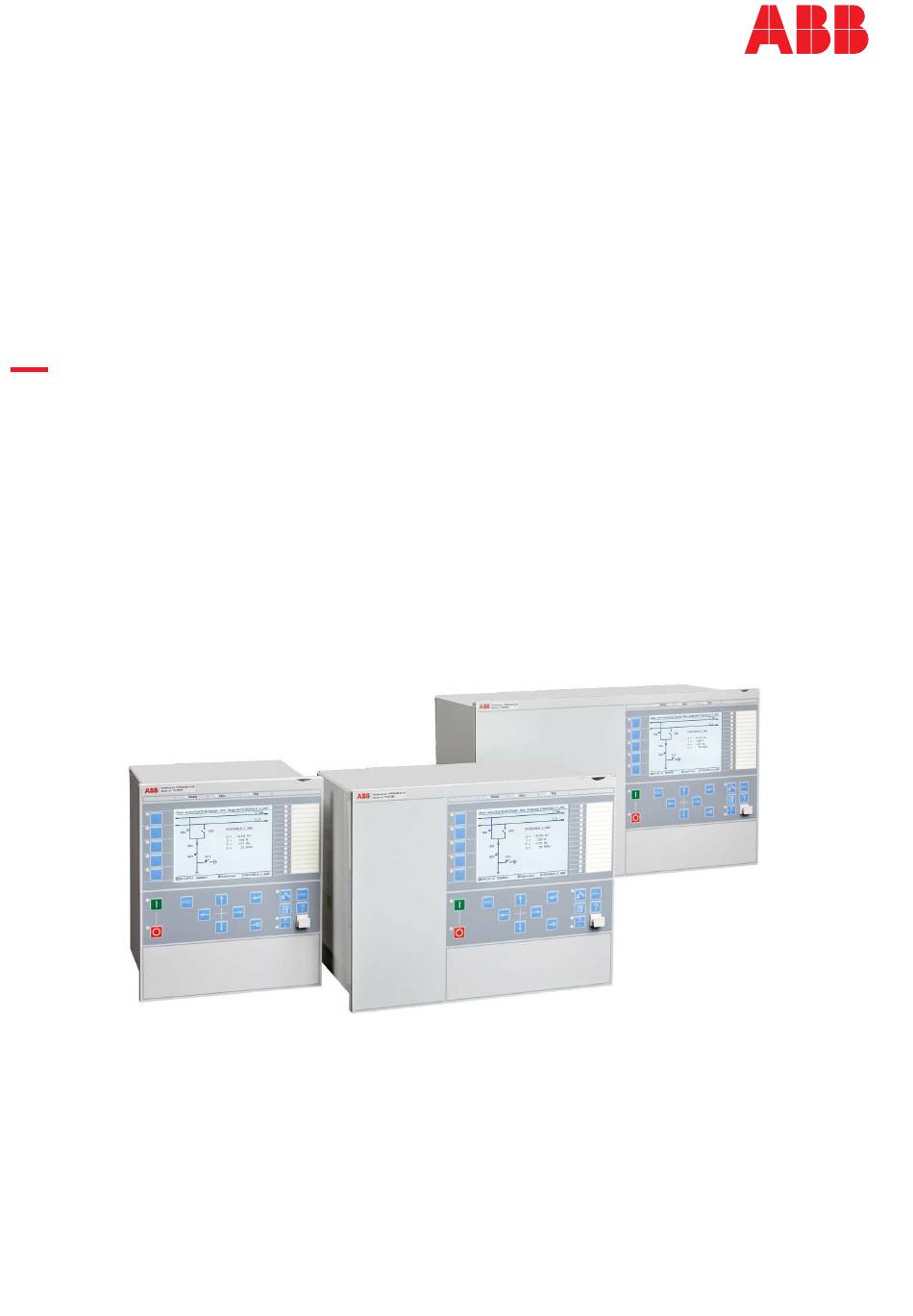

Page 1 ® Relion 670 SERIES Line distance protection REL670 Version 2.2 Product guide...
Page 2: Table Of Contents
The information in this document is subject to change without notice and should not be construed as a commitment by Hitachi Power Grids. Hitachi Power Grids assumes no responsibility for any errors that may appear in this document. Drawings and diagrams are not binding. ABB is a registered trademark of ABB Asea Brown Boveri Ltd.
Page 3: Document Revision History
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Issued: September 2020 Revision: M 1. Document revision history GUID-34B323E4-1319-4D42-80CE-29B0F2D36E2C v4 Table 1. Document revision history Document Date Product revision History revision 2017-07 2.2.0 First release for product version 2.2 2017-10 2.2.1 Ethernet ports with RJ45 connector added.
Page 4: Application
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 available per LDCM communication module in the communication between the IEDs. 2. Application M13636-3 v14 The Intelligent Electronic Device (IED) is used for the The IED can also be provided with full bay control and protection, control and monitoring of overhead lines interlocking functionality including co-operation with and cables in solidly, impedance earthed or isolated...
Page 5 On one binary output module, which is sufficient for the request, ABB is available to support the re-configuration default configured I/O to trip and close circuit breaker. work, either directly or to do the design checking.
Page 6 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Description of configuration A41 GUID-E5AFA7F9-AA08-48B1-9ABA-B6A9A0B9BE1E v2 REL670 A41 – Single breaker with three phase tripping for high ohmic and REL670 A41 – Single breaker with three phase tripping for high ohmic and resonance earthed systems 12AI (6I+6U) resonance earthed systems 12AI (6I+6U) WA2_VT...
Page 7 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Description of configuration A42 GUID-8BA33493-DB51-4FCC-A9C6-39E6F78A2606 v2 REL670 A42 – Single breaker with single or three phase tripping 12AI (6I+6U) WA2_VT Control Control Control Control Control Control Control Control Control S SCBR S SCBR S SCBR S SCBR...
Page 8 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Description of configuration B42 GUID-1F828D7F-B53B-418D-8A14-A11D3224B8C8 v2 REL670 B42 – Multi breaker with single or three phase tripping 12AI (6I+6U) WA1_VT WA1_CT Control Control Control Control 50BF 3I>BF 50BF 3I>BF 52PD 52PD Control Control...
Page 9 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Description of configuration D42 GUID-C0623D78-EE13-44E9-BE02-951B54878879 v2 REL670 D42 – Single breaker with single or three phase tripping with PMU functionality 12AI (6I+6U) Pha sor data df/dt<> df/dt<> f> f> f> f>...
Page 10 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD51303-4 v7 BUS B BUS A TRIP BUSBAR CLOSE O->I SC/VC 94/86 TRIP I->O 50BF 3I> Z < 51/67 3I> 51N/67N IN> 3U> 3U< en05000276.vsd IEC05000276-1 V1 EN-US Figure 5. The single breaker packages for single- and three phase tripping typical arrangement for one protection sub-system is shown here.
Page 11 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 BUS A TRIP BUSBAR & CB2 CLOSE O->I SC/VC 94/86 TRIP I->O SC/VC O->I 50BF 3I> TRIP 50BF Z < 3I> CB1/3 94/86 I->O 51/67 3I> 3U> 51N/67N 3U< IN> IEC05000317-2-en.vsd IEC05000317 V2 EN-US Figure 6.
Page 12: Available Functions
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 3. Available functions GUID-F5776DD1-BD04-4872-BB89-A0412B4B5CC3 v1 The following tables list all the functions available in the IED. Those functions that are not exposed to the user or do not need to be configured are not described in this manual.
Page 13: Differential Protection
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Differential protection HZPDIF High impedance differential protection, single 3-A02 3-A02 3-A02 phase LDRGFC 11REL Additional security logic for differential protection Impedance protection ZMQPDIS,...
Page 14 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) PSPPPAM Poleslip/out-of-step protection 1-B24 1-B24 1-B24 OOSPPAM Out-of-step protection ZCVPSOF Automatic switch onto fault logic, voltage and current based Hitachi Power Grids ©...
Page 15: Current Protection
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Back-up protection functions GUID-A8D0852F-807F-4442-8730-E44808E194F0 v16 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Current protection PHPIOC Instantaneous phase overcurrent protection OC4PTOC Directional phase overcurrent protection, four 51_67 steps EFPIOC...
Page 16: Frequency Protection
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Frequency protection SAPTUF Underfrequency protection 3-E04 3-E04 3-E04 3-E04 SAPTOF Overfrequency protection 3-E04 3-E04 3-E04 3-E04 SAPFRC Rate-of-change of frequency protection 3-E04 3-E04 3-E04...
Page 17 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Control and monitoring functions GUID-E3777F16-0B76-4157-A3BF-0B6B978863DE v20 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Control SESRSYN Synchrocheck, energizing check and synchronizing SMBRREC Autorecloser 1-H04 2-H05 1-H04 APC10 Control functionality for a 1-H37...
Page 18: Secondary System Supervision
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) I103POSCMDV IED direct commands with position for IEC 60870-5-103 I103IEDCMD IED commands for IEC 60870-5-103 I103USRCMD Function commands user defined for IEC 60870-5-103 Secondary...
Page 19 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) ANDQT, Configurable logic blocks Q/T INDCOMBSPQT, (see Table 6) INDEXTSPQT, INVALIDQT, INVERTERQT, ORQT, PULSETIMERQT, RSMEMORYQT, SRMEMORYQT, TIMERSETQT, XORQT AND, GATE, INV, Extension logic package (see LLD, OR,...
Page 20 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Monitoring CVMMXN Power system measurement CMMXU Current measurement VMMXU Voltage measurement phase-phase CMSQI Current sequence measurement VMSQI Voltage sequence measurement VNMMXU Voltage measurement...
Page 21 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) I103AR Function status auto- recloser for IEC 60870-5-103 I103EF Function status earth-fault for IEC 60870-5-103 I103FLTPROT Function status fault protection for IEC 60870-5-103 I103IED...
Page 22 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 3. Total number of instances for basic configurable logic blocks Basic configurable logic block Total number of instances GATE PULSETIMER RSMEMORY SRMEMORY TIMERSET Table 4. Number of function instances in APC10 Function name Function description Total number of instances...
Page 23 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 5. Number of function instances in APC15 Function name Function description Total number of instances SCILO Interlocking BB_ES A1A2_BS A1A2_DC ABC_BC BH_CONN BH_LINE_A BH_LINE_B DB_BUS_A DB_BUS_B DB_LINE ABC_LINE AB_TRAFO SCSWI Switch controller SXSWI...
Page 24 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 7. Total number of instances for extended logic package Extended configurable logic block Total number of instances GATE PULSETIMER RSMEMORY SLGAPC SRMEMORY TIMERSET VSGAPC Hitachi Power Grids © Copyright 2017 Hitachi Power Grids. All rights reserved...
Page 25 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Communication GUID-5F144B53-B9A7-4173-80CF-CD4C84579CB5 v18 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) Station communication LONSPA, SPA SPA communication protocol LON communication protocol HORZCOMM Network variables via LON PROTOCOL Operation selection between SPA and IEC60870-5-103 for SLM...
Page 26 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) AGSAL Generic security application component LD0LLN0 IEC 61850 LD0 LLN0 SYSLLN0 IEC 61850 SYS LLN0 LPHD Physical device information PCMACCS IED configuration protocol SECALARM...
Page 27 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) BinSignTrans1_1 Binary signal transfer, transmit 3/3/6 3/3/6 3/3/6 3/3/6 3/3/6 BinSignTrans1_2 BinSignTransm2 BSR2M_305 Binary signal transfer, 2Mbit receive BSR2M_312 BSR2M_322 BSR2M_306...
Page 28 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 IEC 61850 or ANSI Function description Line Distance function name REL670 (Customized) ECPSCH Scheme communication logic for residual overcurrent protection ECRWPSCH Current reversal and weak-end infeed logic for residual overcurrent protection Direct transfer trip Table 8.
Page 29 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Basic IED functions GUID-C8F0E5D2-E305-4184-9627-F6B5864216CA v14 Table 9. Basic IED functions IEC 61850 or function Description name INTERRSIG Self supervision with internal event list SELFSUPEVLST TIMESYNCHGEN Time synchronization module BININPUT, SYNCHCAN, Time synchronization SYNCHGPS, SYNCHCMPPS,...
Page 30 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 9. Basic IED functions, continued IEC 61850 or function Description name ALTMS Time master supervision ALTIM Time management CAMCONFIG Central account management configuration CAMSTATUS Central account management status TOOLINF Tools information COMSTATUS Protocol diagnostic...
Page 31 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 current variation function is a major one to fulfill the objectives of the startup element. Zero sequence criterion takes the zero sequence current Forward as input. It increases the security of protection during operation the high impedance fault conditions.
Page 32 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 built-in algorithm for load encroachment, which gives the possibility to enlarge the resistive setting of both the phase selection and the measuring zones without interfering with the load. Forward operation The extensive output signals from the phase selection gives also important information about faulty phase(s), which can be used for fault analysis.
Page 33 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Forward operation Operation area Operation area Operation area Reverse No operation area No operation area operation IEC07000117-2-en.vsd IEC07000117 V2 EN-US Figure 9. Load encroachment influence on the offset mho characteristic en05000034.vsd IEC05000034 V1 EN-US Figure 10.
Page 34 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Faulty phase identification with load encroachment FMPSPDIS SEMOD153825-5 v7 The ability to accurately and reliably classify different Forward types of fault so that single phase tripping and operation autoreclosing can be used plays an important roll in today's power systems.
Page 35 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 the possibility to enlarge the resistive setting of both High speed distance protection ZMFCPDIS is the phase selection and the measuring zones without fundamentally the same function as ZMFPDIS but interfering with the load.
Page 36 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 fault type and thereby, reliable fault clearance can be Two current channels I3P1 and I3P2 are available in achieved for faults during power swing. OOSPPAM function to allow the direct connection of two groups of three-phase currents;...
Page 37 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Synchrophasor data can be reported to up to 8 clients Automatic switch onto fault logic, voltage and over TCP and/or 6 UDP group clients for multicast or current based ZCVPSOF unicast transmission of phasor data from the IED.
Page 38 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 protection being out of service due to communication or directional zero sequence current can be used. Current voltage transformer circuit failure. reversal and weak-end infeed functionality are available. Sensitive directional residual overcurrent and power EF4PTOC has an inverse or definite time delay protection SDEPSDE independent for each step.
Page 39 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 CCRBRF provides three different options to select how flow in the power system. There are a number of t1 and t2 timers are run: applications where such functionality is needed. Some 1.
Page 40 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 selective tripping of a faulty line. Alternatively, the Overexcitation protection OEXPVPH function can be used solely for signaling of the earth- M13319-3 v9 When the laminated core of a power transformer or fault location to the SCADA system when the power generator is subjected to a magnetic flux density network is allowed to operate for a longer time with an...
Page 41 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 phase(s) in which the phase selection function has shedding and remedial action schemes. SAPFRC can operated. discriminate between a positive or negative change of frequency. A definite time delay is provided for operate. For delayed tripping, single pole and three pole delays are separately and independently settable.
Page 42: Control
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 and islanding in grid networks. Voltage based delta Fuse failure supervision FUFSPVC supervision (DELVSPVC) is needed at the grid SEMOD113820-4 v13 The aim of the fuse failure supervision function interconnection point. (FUFSPVC) is to block voltage measuring functions at failures in the secondary circuits between the voltage Current based delta supervision DELISPVC...
Page 43 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 asynchronous systems are in phase and can be evaluated with an additional supervision of the status connected. The synchronizing feature evaluates voltage value of the control object. The command sequence with difference, phase angle difference, slip frequency and enhanced security is always terminated by a frequency rate of change before issuing a controlled...
Page 44: Scheme Communication
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Hardware switches are however sources for Reservation function QCRSV maintenance issues, lower system reliability and an M13506-3 v5 The purpose of the reservation (QCRSV) function is extended purchase portfolio. The selector switch primarily to transfer interlocking information between function eliminates all these problems.
Page 45 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 types of communication schemes for permissive On verification of a weak end infeed condition, the weak underreaching, permissive overreaching, blocking, delta end infeed logic provides an output for sending the based blocking, unblocking and intertrip are available.
Page 46 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 logic for weak-end infeed and current reversal, included • Low active power trip with 2 selection modes '1 out of in Current reversal and weak-end infeed logic for 3' and '2 out of 3' residual overcurrent protection (ECRWPSCH) function.
Page 47: Logic
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Zero sequence overcurrent protection LCZSPTOC Trip matrix logic TMAGAPC GUID-F0C38DA1-2F39-46DE-AFFE-F919E6CF4A57 v2 Zero sequence components are present in all abnormal M15321-3 v14 The trip matrix logic (TMAGAPC) function is used to conditions involving earth.
Page 48 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 • PULSETIMER function block can be used, for example, inputs signal are copied to the corresponding quality for pulse extensions or limiting of operation of output. outputs, settable pulse time. •...
Page 49: Monitoring
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 certain logic. Boolean, integer, floating point, string be used for monitoring, supervision, interlocking and types of signals are available. other logics. One FXDSIGN function block is included in all IEDs. 16.
Page 50 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 The Disturbance report function is characterized by The event recorder information is available for the great flexibility regarding configuration, starting disturbances locally in the IED. conditions, recording times, and large storage capacity. The event recording information is an integrated part of A disturbance is defined as an activation of an input to the disturbance record (Comtrade file).
Page 51 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Analog, integer and double indication values are also Circuit breaker condition monitoring SSCBR transferred through the EVENT function. GUID-E1FD74C3-B9B6-4E11-AA1B-7E7F822FB4DD v14 The circuit breaker condition monitoring function Generic communication function for Single Point (SSCBR) is used to monitor different parameters of the indication SPGAPC breaker condition.
Page 52: Metering
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 • Applicable to very long time accumulation (≤ 99999.9 Voltage harmonic monitoring VHMMHAI hours) GUID-868ED1BB-A921-45DE-94C4-0CF23ECD9ADA v1 Voltage harmonic monitoring function VHMMHAI is used • Supervision of limit transgression conditions and to monitor the voltage part of the power quality of a rollover/overflow system.
Page 53: Human Machine Interface
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 reverse directions. These energy values are available as The LHMI is used for setting, monitoring and controlling. output signals and also as pulse outputs. Integration of energy values can be controlled by inputs (STARTACC 19.
Page 54: Station Communication
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 communication. SCHLCCH is used for communication Substation Automation (SA) bus or Substation over the rear Ethernet ports, RCHLCCH is used for Monitoring (SM) bus. redundant communications over the rear Ethernet ports Available communication protocols are: and FRONTSTATUS is used for communication over the front port.
Page 55 SPA communication protocol Supervison status for IEC 60870-5-103 I103SUPERV SEMOD120134-5 v1 A single glass or plastic port is provided for the ABB SPA I103SUPERV is a function block with defined functions protocol. This allows extensions of simple substation for supervision indications in monitor direction. This automation systems but the main use is for Substation FunctionType parameter;...
Page 56: Remote Communication
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 as interface for horizontal peer-to-peer communication IED commands for IEC 60870-5-103 I103IEDCMD (over LON only). I103IEDCMD is a command block in control direction with defined IED functions. All outputs are pulsed and 22.
Page 57: Hardware Description
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 designed for 64 kbit/s resp 2Mbit/s operation. The transducers. The module has six independent, converter is delivered with 19” rack mounting galvanically separated channels. accessories. Optical Ethernet module M16073-3 v9 The optical Ethernet module (OEM) provides two 23.
Page 58 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Transformer input module TRM M14875-3 v10 The transformer input module is used to galvanically separate and adapt the secondary currents and voltages generated by the measuring transformers. The module has twelve inputs in different combinations of currents and voltage inputs.
Page 59 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 11. Case dimensions, continued Case size (mm)/ (inches) The G and H dimensions are defined by the 19” rack mounting kit. Mounting alternatives M16079-3 v14 • 19” rack mounting kit •...
Page 60: Connection Diagrams
1446-18 IEC 61850 Ed2 level A1 10175313-INC 20-2185rev1 certificate issued by DNV GL IEC 61850 Ed1 level B1 1KHL050130 certificate issued by ABB Power Grids Switzerland Ltd, System Verification and Validation Center, SVC Baden IEC 60870-5-103 certificate 10021419-OPE/INC 16-2490 issued by DNV GL DNP 3.0 certificate issued by...
Page 61: Technical Data
Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 26. Technical data General M10993-1 v4 IP11376-1 v3 Definitions Reference value The specified value of an influencing factor to which are referred the characteristics of the equipment Nominal range The range of values of an influencing quantity (factor) within which, under specified conditions, the equipment meets the specified requirements Operative range The range of values of a given energizing quantity for which the equipment, under specified conditions, is able to...
Page 62 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Energizing quantities, rated values and limits Analog inputs M16988-1 v11 IP15842-1 v1 Table 12. TRM - Energizing quantities, rated values and limits for protection transformer Description Value Frequency Rated frequency f 50/60 Hz Operating range ±...
Page 63 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 13. TRM - Energizing quantities, rated values and limits for measuring transformer Description Value Frequency Rated frequency f 50/60 Hz Operating range ± 10% Current inputs Rated current I Operating range (0-1.8) ×...
Page 64 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Binary inputs and outputs M12576-1 v13 IP15844-1 v1 Table 16. BIM - Binary input module Quantity Rated value Nominal range Binary inputs DC voltage, RL 24/30 V RL ±20% 48/60 V RL ±20% 110/125 V RL ±20%...
Page 65 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 18. IOM - Binary input/output module Quantity Rated value Nominal range Binary inputs DC voltage, RL 24/30 V RL ±20% 48/60 V RL ±20% 110/125 V RL ±20% 220/250 V RL ±20% Power consumption 24/30 V, 50 mA...
Page 66 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12318-1 v11 Table 19. IOM - Binary input/output module contact data (reference standard: IEC 61810-1) Function or quantity Trip and signal relays Fast signal relays (parallel reed relay) Binary outputs Max system voltage 250 V AC/DC 250 V DC...
Page 67 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12584-1 v11 Table 20. IOM with MOV and IOM 220/250 V, 110mA - contact data (reference standard: IEC 61810-1) Function or quantity Trip and Signal relays Fast signal relays (parallel reed relay) Binary outputs IOM: 10 IOM: 2...
Page 68 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD175395-2 v11 Table 21. SOM - Static Output Module data (reference standard: IEC 61810-1): Heavy duty static binary outputs Function of quantity Static binary output trip Max system voltage 250 V DC Number of outputs Impedance open state High impedance...
Page 69 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 22. SOM - Static Output module data (reference standard: IEC 61810-1): Electromechanical relay outputs Function of quantity Trip and signal relays Max system voltage 250 V AC/DC Min load voltage 24 V DC Number of outputs Test voltage across open contact, 1 min...
Page 70 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12441-1 v11 Table 23. BOM - Binary output module contact data (reference standard: IEC 61810-1) Function or quantity Trip and Signal relays Binary outputs Max system voltage 250 V AC/DC Min load voltage 24V DC Test voltage across open contact, 1 min...
Page 71 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 25. Auxiliary DC supply voltage influence on functionality during operation Dependence on Reference value Within nominal Influence range Ripple, in DC auxiliary voltage max. 2% 15% of EL 0.01%/% Operative range Full wave rectified...
Page 72 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Type tests according to standards M16706-1 v15 IP15778-1 v1 Table 27. Electromagnetic compatibility Test Type test values Reference standards 1 MHz burst disturbance 2.5 kV IEC 60255-26 100 kHz slow damped oscillatory wave immunity test 2.5 kV IEC 61000-4-18, Level 3 Ring wave immunity test, 100 kHz...
Page 73 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 29. Environmental conditions Description Value Operating temperature range -25°C to +55°C (continuous) Short-time service temperature range -40°C to +70°C (<16h) Note: Degradation in MTBF and HMI performance outside the temperature range of -25°C to +55°C Relative humidity <93%, non-condensing...
Page 74 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Differential protection M13081-1 v13 Table 33. High impedance differential protection, single phase HZPDIF Function Range or value Accuracy Operate voltage (10-900) V ±1.0% of I at I ≤ I I=U/R ±1.0% of I at I >...
Page 75 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Impedance protection M13842-1 v15 Table 35. Distance measuring zone, Quad ZMQPDIS Function Range or value Accuracy Number of zones Max 5 with selectable direction Minimum operate residual (5-1000)% of IBase current, zone 1 Minimum operate current, (10-1000)% of IBase...
Page 76 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD173239-2 v10 Table 36. Distance measuring zone, quadrilateral characteristic for series compensated lines ZMCPDIS, ZMCAPDIS Function Range or value Accuracy Number of zones Max 5 with selectable direction IBase Minimum operate residual (5-1000)% of current, zone 1 IBase...
Page 77 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD173242-2 v14 Table 38. Full-scheme distance protection, Mho characteristic ZMHPDIS Function Range or value Accuracy Number of zones, Ph-E Max 5 with selectable direction Minimum operate current (10–30)% of IBase Positive sequence impedance, (0.005–3000.000) W/phase ±2.0% static accuracy...
Page 78 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD153649-2 v8 Table 40. Faulty phase identification with load encroachment FMPSPDIS Function Range or value Accuracy Load encroachment criteria: ±2.0% static accuracy (1.00–3000.00) W/ Load resistance, forward and phase Conditions: reverse Voltage range: (0.1–1.1) x U (5–70) degrees...
Page 79 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-9E13C38A-3B6D-402B-98A6-6CDA20632CE7 v5 Table 42. Phase selection, quadrilateral characteristic with settable angle FRPSPDIS Function Range or value Accuracy Minimum operate current (5-500)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I >...
Page 80 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-6C2EF52A-8166-4A23-9861-38931682AA7D v8 Table 43. High speed distance protection ZMFPDIS, ZMFCPDIS Function Range or value Accuracy Number of zones 5 selectable directions, 2 fixed directions Minimum operate current, Ph- (5-6000)% of IBase ±1.0% of I Ph and Ph-E Positive sequence reactance...
Page 81 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-E65CE996-C0CE-4620-8E01-A96896E62802 v1 Table 44. Power swing detection, blocking and unblocking ZMBURPSB Function Range or value Accuracy Reactive reach ±2.0% static accuracy (0.10-3000.00) W/phase Conditions: Voltage range: (0.1-1.1) x U Current range: (0.5-30) x I Angle: at 0 degrees and 85 degrees Resistive reach (0.10–1000.00) W/loop...
Page 82 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-BACA37F7-E945-40BC-BF9D-A65BFC96CA91 v9 Table 48. Phase preference logic PPLPHIZ Function Range or value Accuracy Operate value, phase-to-phase and (10 - 90)% of UBase ±0.5% of U UPN< phase-to-neutral undervoltage, UPP< Reset ratio, undervoltage <...
Page 83 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-42119BFF-1756-431C-A5A1-0AB637213E96 v2 Table 49. Phase preference logic PPL2PHIZ Function Range or value Accuracy Operate value, phase-to-phase and (10 - 90)% of UBase ±0.5% of U UPN< phase-to-neutral undervoltage, UPP< Reset ratio, undervoltage <...
Page 84 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Wide area measurement system GUID-F0BAEBD8-E361-4D50-9737-7DF8B043D66A v5 Table 51. Protocol reporting via IEEE 1344 and IEC/IEEE 60255-118 (C37.118) PMUREPORT Influencing quantity Range Accuracy Signal frequency ± 0.1 x f ≤ 1.0% TVE Signal magnitude: Voltage phasor (0.1–1.2) x U...
Page 85 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Current protection M12336-1 v14 Table 52. Instantaneous phase overcurrent protection PHPIOC Function Range or value Accuracy Operate current (5-2500)% of lBase ±1.0% of I at I ≤ I ±1.0% of I at I > I Reset ratio >...
Page 86 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12342-1 v22 Table 53. Directional phase overcurrent protection, four steps OC4PTOC Function Range or value Accuracy lBase Operate current, step 1-4 (5-2500)% of ±1.0% of I at I ≤ I ±1.0% of I at I >...
Page 87 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12340-2 v9 Table 54. Instantaneous residual overcurrent protection EFPIOC Function Range or value Accuracy Operate current (5-2500)% of lBase ±1.0% of I at I ≤ I ±1.0% of I at I > I Reset ratio >...
Page 88 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M15223-1 v18 Table 55. Directional residual overcurrent protection, four steps EF4PTOC Function Range or value Accuracy Operate current, step 1-4 (1-2500)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I >...
Page 89 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-E83AD807-8FE0-4244-A50E-86B9AF92469E v6 Table 56. Four step directional negative phase sequence overcurrent protection NS4PTOC Function Range or value Accuracy lBase Operate current, step 1 - 4 (1-2500)% of ±1.0% of I at I £...
Page 90 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD173350-2 v16 Table 57. Sensitive directional residual overcurrent and power protection SDEPSDE Function Range or value Accuracy (0.25-200.00)% of IBase Operate level for 3I ·cosj directional ±1.0% of I at I £ I residual overcurrent ±1.0% of I at I >...
Page 91 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12352-1 v15 Table 58. Thermal overload protection, one time constant LCPTTR/LFPTTR Function Range or value Accuracy Reference current (2-400)% of IBase ±1.0% of I Reference temperature (0-300)°C, (0 - 600)°F ±1.0°C, ±2.0°F Operate time: IEC 60255-149, ±5.0% or ±200 ms whichever is greater...
Page 92 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12353-1 v15 Table 59. Breaker failure protection CCRBRF Function Range or value Accuracy lBase Operate phase current (5-200)% of ±1.0% of I at I £ I ±1.0% of I at I > I Reset ratio, phase current >...
Page 93 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD175152-2 v11 Table 62. Directional underpower protection GUPPDUP Function Range or value Accuracy SBase Power level (0.0–500.0)% of ±1.0% of S at S ≤ S for Step 1 and Step 2 ±1.0% of S at S >...
Page 94 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-7EA9731A-8D56-4689-9072-D72D9CDFD795 v8 Table 65. Voltage-restrained time overcurrent protection VRPVOC Function Range or value Accuracy Start overcurrent (2.0 - 5000.0)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I > I Reset ratio, overcurrent >...
Page 95 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-BCCA5F2D-9FF7-4188-9B5D-DA05E8E80CC0 v1 Table 66. Average Power Transient Earth Fault Protection APPTEF Function Range or value Accuracy Minimum operate level for residual (5-80)% of UBase ±0.5% of Ur overvoltage 3Uo> start condition "UN>" Reset ratio for residual overvoltage 3Uo>...
Page 96 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Voltage protection M13290-1 v15 Table 67. Two step undervoltage protection UV2PTUV Function Range or value Accuracy UBase Operate voltage, low and high step (1.0–100.0)% of ±0.5% of U UBase Absolute hysteresis (0.0–50.0)% of ±0.5% of U UBase...
Page 97 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M13304-1 v15 Table 68. Two step overvoltage protection OV2PTOV Function Range or value Accuracy UBase Operate voltage, step 1 and 2 (1.0-200.0)% of ±0.5% of U at U ≤ U ±0.5% of U at U >...
Page 98 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M13317-2 v15 Table 69. Residual overvoltage protection, two steps ROV2PTOV Function Range or value Accuracy UBase Operate voltage, step 1 - step 2 (1.0-200.0)% of ± 0.5% of U at U ≤ U ±...
Page 99 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD166919-2 v7 Table 71. Voltage differential protection VDCPTOV Function Range or value Accuracy UBase Voltage difference for alarm and trip (2.0–100.0) % of ±0.5% of U Under voltage level (1.0–100.0) % of UBase ±0.5% of U Independent time delay for voltage...
Page 100 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Frequency protection M13360-1 v16 Table 74. Underfrequency protection SAPTUF Function Range or Value Accuracy Operate value, start function, at (35.00 - 75.00) Hz ±2.0 mHz symmetrical three phase voltage, StartFrequency Reset hysteresis 10.0 mHz fixed ±2.0 mHz...
Page 101 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M14964-1 v13 Table 75. Underfrequency protection SAPTOF Function Range or Value Accuracy Operate value, start function, (35.00 - 90.00) Hz ±2.0 mHz at symmetrical three phase voltage, StartFrequency 10.0 mHz fixed ±2.0 mHz Reset hysteresis Start time measurement with...
Page 102 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Multipurpose protection M13095-2 v11 Table 77. General current and voltage protection CVGAPC Function Range or value Accuracy Measuring current input phase1, phase2, phase3, PosSeq, - NegSeq, -3*ZeroSeq, MaxPh, MinPh, UnbalancePh, phase1- phase2, phase2-phase3, phase3- phase1, MaxPh-Ph, MinPh-Ph, UnbalancePh-Ph...
Page 103 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 77. General current and voltage protection CVGAPC, continued Function Range or value Accuracy Start undervoltage, step 1 - 2 (2.0 - 150.0)% of UBase ±0.5% of U at U ≤ U ±0.5% of U at U >...
Page 104 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 77. General current and voltage protection CVGAPC, continued Function Range or value Accuracy Impulse margin time 15 ms typically Undervoltage: Critical impulse time 10 ms typically at 1.2 x U to 0.8 x Impulse margin time 15 ms typically...
Page 105 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Secondary system supervision M12358-1 v10 Table 78. Current circuit supervision CCSSPVC Function Range or value Accuracy Operate current (10-200)% of IBase ±10.0% of I at I ≤ I ±10.0% of I at I > I Reset ratio, Operate current >90% Block current...
Page 106 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-E2EA8017-BB4B-48B0-BEDA-E71FEE353774 v5 Table 80. Fuse failure supervision VDSPVC Function Range or value Accuracy Operate value, block of main fuse failure (10.0-80.0)% of UBase ±0.5% of Ur Reset ratio <110% Operate time, block of main fuse failure at 1 x U Min.
Page 107 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Control M12359-1 v15 Table 83. Synchronizing, synchrocheck and energizing check SESRSYN Function Range or value Accuracy Phase shift, j (-180 to 180) degrees line Voltage high limit for synchronizing and synchrocheck (50.0-120.0)% of UBase ±0.5% of U at U ≤...
Page 108 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12379-1 v13 Table 84. Autorecloser SMBRREC Function Range or value Accuracy Dead time: shot 1 “t1 1Ph” (0.000-120.000) s ±0.2% or ±35 ms shot 1 “t1 2Ph” whichever is greater shot 1 “t1 3Ph “...
Page 109 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Scheme communication M16038-1 v14 Table 85. Scheme communication logic with delta based blocking scheme signal transmit ZCPSCH Function Range or value Accuracy Scheme type Intertrip Permissive UR Permissive OR Blocking DeltaBlocking Operate voltage, Delta U (0–100)% of UBase...
Page 110 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M16039-1 v16 Table 87. Current reversal and weak-end infeed logic for distance protection ZCRWPSCH Function Range or value Accuracy Detection level phase-to- (10-90)% of UBase ±0.5% of U neutral voltage Detection level phase-to-phase (10-90)% of UBase ±0.5% of U...
Page 111 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M16051-2 v11 Table 91. Current reversal and weak-end infeed logic for residual overcurrent protection ECRWPSCH Function Range or value Accuracy Operate mode of WEI logic Echo Echo & Trip Operate voltage 3U0 for WEI (5-70)% of UBase ±0.5% of U trip...
Page 112 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Direct transfer trip GUID-B5714FAE-A87D-4C2D-A167-6CB3522CE1D5 v5 Table 92. Low active power and power factor protection LAPPGAPC Function Range or value Accuracy Operate value, low active power (2.0-100.0)% of SBase ±1.0% of S Reset ratio, low active power <105% Operate value, low power factor...
Page 113 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-C99E063D-B377-40D5-8481-9F46D4166AED v3 Table 95. Carrier receive logic LCCRPTRC Function Range or value Accuracy Operation mode 1 Out Of 2 2 Out Of 2 Independent time delay (0.000-60.000) s ±0.2% or ±35 ms whichever is greater GUID-122A206E-27D2-4D15-AD5A-86B68F1ED559 v6 Table 96.
Page 114 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-0E964441-43DE-43B6-B454-485FBBF66B5C v5 Table 98. Negative sequence overcurrent protection LCNSPTOC Function Range or value Accuracy Operate value, negative sequence (3 - 2500)% of IBase ±1.0% of Ir at I ≤ I overcurrent ±1.0% of I at I >...
Page 115 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-C4ACE306-2A54-483D-B247-A479D48CBF5F v5 Table 100. Three phase overcurrent LCP3PTOC Function Range or value Accuracy Operate value, overcurrent (5-2500)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I > I Reset ratio, overcurrent >...
Page 116 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Logic M12380-1 v15 Table 102. Tripping logic common 3-phase output SMPPTRC Function Range or value Accuracy Program Trip action, 3 phase, 1ph/2ph, 1ph/2ph/3ph Minimum trip pulse (0.000-60.000) s ±0.2% or ±15 ms whichever is greater length , tTripMin tWaitForPHS...
Page 117 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-EAA43288-01A5-49CF-BF5B-9ABF6DC27D85 v2 Table 108. Number of INDCALH instances Function Quantity with cycle time 3 ms 8 ms 100 ms INDCALH GUID-D1179280-1D99-4A66-91AC-B7343DBA9F23 v3 Table 109. Number of AND instances Logic block Quantity with cycle time 3 ms 8 ms...
Page 118 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-BE6FD540-E96E-4F15-B2A2-12FFAE6C51DB v2 Table 115. Number of RSMEMORY instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms RSMEMORY GUID-7A0F4327-CA83-4FB0-AB28-7C5F17AE6354 v2 Table 116. Number of SRMEMORY instances Logic block Quantity with cycle time 3 ms 8 ms...
Page 119 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-77FEBE9B-0882-4E85-8B1A-7671807BFC02 v2 Table 122. Number of INVALIDQT instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms INVALIDQT GUID-F25B94C6-9CC9-48A0-A7A3-47627D2B56E2 v1 Table 123. Number of INVERTERQT instances Logic block Quantity with cycle time 3 ms 8 ms...
Page 120 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-1C381E02-6B9E-44DC-828F-8B3EA7EDAA54 v1 Table 129. Number of XORQT instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms XORQT GUID-19810098-1820-4765-8F0B-7D585FFC0C78 v8 Table 130. Number of instances in the extension logic package Logic block Quantity with cycle time 3 ms...
Page 121 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-A339BBA3-8FD0-429D-BB49-809EAC4D53B0 v2 Table 134. Number of ITBGAPC instances Function Quantity with cycle time 3 ms 8 ms 100 ms ITBGAPC GUID-B258726E-1129-47C9-94F9-BE634A2085FA v4 Table 135. Elapsed time integrator with limit transgression and overflow supervision TEIGAPC Function Cycle time (ms) Range or value...
Page 122 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Monitoring M12386-1 v16 Table 139. Power system measurement CVMMXN Function Range or value Accuracy Frequency (0.95-1.05) x f ±2.0 mHz Voltage (10 to 300) V ±0.3% of U at U ≤ 50 V ±0.2% of U at U >...
Page 123 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-ED634B6D-9918-464F-B6A4-51B78129B819 v6 Table 142. Voltage measurement phase-earth VNMMXU Function Range or value Accuracy Voltage (5 to 175) V ±0.5% of U at U ≤ 50 V ±0.2% of U at U > 50 V Phase angle (5 to 175) V ±0.5 degrees at U ≤...
Page 124 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12760-1 v12 Table 146. Disturbance report DRPRDRE Function Range or value Accuracy Pre-fault time (0.05–9.90) s Post-fault time (0.1–10.0) s Limit time (0.5–10.0) s Maximum number of recordings 200, first in - first out Time tagging resolution 1 ms See table...
Page 125 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-83B0F607-D898-403A-94FD-7FE8D45C73FF v9 Table 148. Insulation supervision for liquid medium function SSIML Function Range or value Accuracy Oil alarm level 1.00-100.00 ±10.0% of set value or 0.2 whichever is greater Oil lockout level 1.00-100.00 ±10.0% of set value or 0.2 whichever is greater Temperature alarm level...
Page 126 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12700-1 v5 Table 151. Event list Function Value Buffer capacity Maximum number of events in the list 5000 Resolution 1 ms Accuracy Depending on time synchronizing M13765-1 v6 Table 152. Indications Function Value Buffer capacity...
Page 127 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-C43B8654-60FE-4E20-8328-754C238F4AD0 v3 Relion® 670 series can store up to 10240 security events. Table 156. Event counter with limit supervision L4UFCNT Function Range or value Accuracy Counter value 0-65535 Hitachi Power Grids ©...
Page 128 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 156. Event counter with limit supervision L4UFCNT , continued Function Range or value Accuracy Max. count up speed 30 pulses/s (50% duty cycle) GUID-F5E124E3-0B85-41AC-9830-A2362FD289F2 v1 Table 157. Running hour-meter TEILGAPC Function Range or value Accuracy...
Page 129 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-2068BBA0-9026-48D0-9DEB-301BCB3C600C v2 Table 160. Voltage harmonic monitoring VHMMHAI (50/60 Hz) Function Range or value Accuracy Fundamental Harmonic Frequency (0.95 - 1.05) X f 2nd order to 5th order (0.1 - 0.5) X U ±...
Page 130 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Metering M13404-2 v5 Table 161. Pulse-counter logic PCFCNT Function Setting range Accuracy Input frequency See Binary Input Module (BIM) Cycle time for report of (1–3600) s counter value SEMOD153707-2 v5 Table 162.
Page 131 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Station communication M15031-1 v9 Table 163. Communication protocols Function Value Protocol IEC 61850-8-1 Communication speed for the IEDs 100BASE-FX Protocol IEC 60870–5–103 Communication speed for the IEDs 9600 or 19200 Bd Protocol DNP3.0 Communication speed for the IEDs...
Page 132 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 M12589-1 v5 Table 168. SLM – LON port Quantity Range or value Optical connector Glass fiber: type ST Plastic fiber: type HFBR snap-in Fiber, optical budget Glass fiber: 11 dB (1000m/3000 ft typically *) Plastic fiber: 7 dB (10m/35 ft typically *) Fiber diameter Glass fiber: 62.5/125 mm...
Page 133 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 172. SFP - Galvanic RJ45 Quantity Rated value Number of channels Up to 6 single or 3 redundant or a combination of single and redundant links for communication using any protocol Standard IEEE 802.3u 100BASE-TX Type of cable...
Page 134 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Remote communication M12756-1 v13 Table 174. Line data communication module Characteristic Range or value Type of LDCM Short range (SR) Medium range (MR) Long range (LR) Type of fiber Multi-mode fiber Single-mode fiber Single-mode fiber glass 62.5/125 µm...
Page 135 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Hardware M11778-1 v7 SEMOD53385-1 v1 Table 176. Case Material Steel sheet Front plate Stainless steel with cut-out for HMI Surface treatment Aluzink preplated steel Finish Light grey (RAL 7035) M12327-1 v5 Table 177.
Page 136 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-96676D5D-0835-44DA-BC22-058FD18BDF34 v3 Because of limitations of space, when ring lug terminal is ordered for Binary I/O connections, one blank slot is necessary between two adjacent I/O modules. Please refer to the ordering particulars for details.
Page 137 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Basic IED functions M11963-1 v5 Table 184. Self supervision with internal event list Data Value Recording manner Continuous, event controlled List size 40 events, first in-first out M12331-1 v9 Table 185. Time synchronization, time tagging Function Value Time tagging accuracy of the synchrophasor data...
Page 138 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD141136-2 v10 Table 189. IRIG-B Quantity Rated value Number of channels IRIG-B Number of optical channels Electrical connector: Electrical connector IRIG-B Pulse-width modulated 5 Vpp Amplitude modulated – low level 1-3 Vpp –...
Page 139 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Inverse characteristic M12388-1 v23 Table 190. ANSI Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 999.00 ANSI/IEEE C37.112 , 1.5 x I ≤ I ≤ 20 x I ±2.0% or ±40 ms whichever is greater æ...
Page 140 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 191. IEC Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 999.00 IEC 60255-151, ±2.0% 1.5 x I ≤ I ≤ 20 x I or ±40 ms whichever is greater æ...
Page 141 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 192. RI and RD type inverse time characteristics Function Range or value Accuracy RI type inverse characteristic 0.05 ≤ k ≤ 999.00 IEC 60255-151, ±2.0% 1.5 x I ≤ I ≤ 20 x I or ±40 ms whichever is greater ×...
Page 142 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 194. IEC Inverse time characteristics for Sensitive directional residual overcurrent and power protection Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 2.00 IEC 60255-151, ±5.0% 1.5 x I ≤...
Page 143 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 GUID-2AE8C92E-5DA8-487F-927D-8E553EE29240 v2 Table 196. ANSI Inverse time characteristics for Voltage restrained time overcurrent protection Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 999.00 ANSI/IEEE C37.112 , ± 5.0% or ±40 ms whichever is greater æ...
Page 144 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 SEMOD116978-2 v10 Table 198. Inverse time characteristics for overvoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of 0.01 ±5.0% or ±45 ms whichever is greater æ...
Page 145 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 199. Inverse time characteristics for undervoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of 0.01 ±5.0% or ±45 ms whichever is greater æ...
Page 146 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 200. Inverse time characteristics for residual overvoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps ±5.0% or ±45 ms whichever is greater of 0.01 æ...
Page 147: Ordering For Customized Ied
Table 204. Product definition ordering codes Product REL670* Product version Configuration alternative Line distance protection REL670 ACT configuration ABB Standard configuration Ordering number Line distance protection REL670 1MRK002812-AG Hitachi Power Grids © Copyright 2017 Hitachi Power Grids. All rights reserved...
Page 148 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 205. Differential protection Position Table 206. Differential functions Function Function Ordering no Position Available Selected Notes and rules identification High impedance differential protection, single phase HZPDIF 1MRK005904-HB 00-03 Additional security logic for differential protection LDRGFC 1MRK005904-TA Table 207.
Page 149 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 208. Impedance functions, alternatives Function Function Ordering no Position Available Selected Notes and identification rules Note: One and only one of alternatives 1 to 6 must be selected. *) Selected qty = 0 for functions in unselected alternatives. Alternative 1 Distance protection, quadrilateral Distance protection zone, quadrilateral characteristic ZMQPDIS,...
Page 150 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 209. Current protection Position Table 210. Current functions Function Function Ordering no Position Available Selected Notes and identification rules Instantaneous phase overcurrent protection PHPIOC 1MRK005910-AD Directional phase overcurrent protection, four steps OC4PTOC 1MRK005910-BC Instantaneous residual overcurrent protection...
Page 151 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 216. Multipurpose protection Position Table 217. Multipurpose functions Function Function Ordering no Position Available Selected Notes and rules identification General current and voltage protection CVGAPC 1MRK005915-AA Table 218. General calculation Position Table 219.
Page 152 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 225. Scheme communication functions Function Function Ordering no Position Available Selected Notes and rules identification Scheme communication logic with delta based blocking ZCPSCH 1MRK005920-AA scheme signal transmit Phase segregated scheme communication logic for distance ZC1PPSCH 1MRK005920-BA protection...
Page 153 Additional local HMI user dialogue language No additional HMI language HMI language, English US 1MRK002920-UB Selected Additional 2nd languages are continuously being added. Please get in touch with local ABB sales contact. Table 233. Casing selection Casing Ordering no Selection Notes and rules 1/2 x 19"...
Page 154 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 237. Analog system selection Analog system Ordering no Selection Notes and rules When more than one TRM is selected, the connector type on both TRMs must be the same (A compression or B ring lug). Slot position (front view/rear view) No Transformer input module included TRM 9I 1A + 3U 110/220V, 50/60Hz, compression terminals...
Page 155 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 238. Maximum quantity of I/O modules, with compression terminals When ordering I/O modules, observe the maximum quantities according to the tables below. Note: Standard order of location for I/O modules is BIM-BOM-SOM-IOM-MIM from left to right as seen from the rear side of the IED, but can also be freely placed.
Page 156 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 240. Binary input/output module selection Binary input/ Ordering no Selection Notes and rules output modules Slot position (front view/rear view) 1/2 case with 1 █ █ █ 3/4 case with 1 █...
Page 157 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 240. Binary input/output module selection, continued Binary input/ Ordering no Selection Notes and rules output modules IOM 8 inputs, RL 1MRK000173-BE 110-125 VDC, 50mA, 10+2 output relays IOM 8 inputs, RL 1MRK000173-CE 220-250 VDC, 50mA, 10+2...
Page 158 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Table 241. Station communication, remote end serial communication and time synchronization selection Station communication, remote end Ordering no Selection Notes and rules serial communication and time synchronization Slot position (front view/rear view) Available slots in 1/2, 3/4 and 1/1 █...
Page 159: Ordering For Pre-Configured Ied
Line distance protection, Multi breaker, 1/3 phase tripping 1MRK004812-GG Line distance protection, Single breaker, 1/3 phase tripping, with PMU 1MRK004812-HG ACT configuration ABB standard configuration Selection for position #2 Hitachi Power Grids © Copyright 2017 Hitachi Power Grids. All rights reserved...
Page 160 No additional HMI language HMI language, English US 1MRK002920-UB Selection for position #4 Additional 2nd languages are continuously being added. Please get in touch with local ABB sales contact. Hitachi Power Grids © Copyright 2017 Hitachi Power Grids. All rights reserved...
Page 161 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Casing Ordering no Notes and rules 1/2 x 19" rack casing, 1 TRM 1MRK000151-VA 3/4 x 19" rack casing, 1 TRM 1MRK000151-VB 3/4 x 19” rack casing, 2 TRM 1MRK000151-VE 1/1 x 19"...
Page 162 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Analog system Ordering no Notes and rules When more than one TRM is selected, the connector type on both TRMs must be the same (A compression or B ring lug). Slot position (front view/rear view) No Transformer input module included TRM 9I 1A + 3U 110/220V, 50/60Hz, compression terminals...
Page 163 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Binary input/ Ordering no Notes and rules output modules For pulse counting, for example kWh metering, the BIM with enhanced pulse counting capabilities must be used. 1 BIM and 1 BOM required in positions P3 and P4 in REL A42, B42 and D42. B42 requires one extra BIM in position P5. 1 IOM required in position P3 in A41.
Page 164 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Binary input/ Ordering no Notes and rules output modules For pulse counting, for example kWh metering, the BIM with enhanced pulse counting capabilities must be used. 1 BIM and 1 BOM required in positions P3 and P4 in REL A42, B42 and D42. B42 requires one extra BIM in position P5. 1 IOM required in position P3 in A41.
Page 165 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Station communication, remote Ordering no Notes and rules end serial communication and time synchronization Slot position (front view/rear view) Available slots in 1/2, 3/4 and 1/1 █ █ █ █ █...
Page 166: Ordering For Accessories
(ordering number RK926 315- IEDs is described in 1MRK 512 001-BEN and 1MRK BE). 001024-CA. Please refer to the website: Multi-breaker/Single or Three Phase trip with external www.abb.com/protection-control for detailed neutral on current circuit (ordering number RK926 315- information. BV).
Page 167 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Protection cover M15040-3 v8 Protective cover for rear side of RHGS6, 6U, 1/4 x 19” Quantity: 1MRK 002 420-AE Protective cover for rear side of terminal, 6U, 1/2 x 19” Quantity: 1MRK 002 420-AC Protective cover for rear side of terminal, 6U, 3/4 x 19”...
Page 168 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 Specify additional quantity of IED Connect USB flash drive requested . Quantity: 1MRK 002 290-AE Hitachi Power Grids © Copyright 2017 Hitachi Power Grids. All rights reserved...
Page 169 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 User documentation Specify the number of printed manuals requested Application manual Quantity: 1MRK 506 369-UEN ANSI Quantity: 1MRK 506 369-UUS Technical manual Quantity: 1MRK 506 370-UEN ANSI Quantity: 1MRK 506 370-UUS Commissioning manual Quantity: 1MRK 506 371-UEN...
Page 170 Line distance protection REL670 1MRK 506 372-BEN M Version 2.2 ANSI Quantity: 1MRK 511 398-UUS Cyber security deployment guideline Quantity: 1MRK 511 399-UEN Application guide, Communication set-up Quantity: 1MRK 505 382-UEN Reference information M2175-3 v4 For our reference and statistics we would be pleased to be provided with the following application data: Country: End user: Station name:...
Page 172 ABB Power Grids Sweden AB Grid Automation Products SE-721 59 Västerås, Sweden Phone +46 (0) 10 738 00 00 Scan this QR code to visit our website https://www.abb.com/protection-control © Copyright 2017 Hitachi Power Grids. All rights reserved.

This manual is also suitable for:

Rel670

ABB Relion 670 Series Product Manual

Quick Links

Related Manuals for ABB Relion 670 Series

Summary of Contents for ABB Relion 670 Series

This manual is also suitable for:

Table of Contents
