- Page 1 PROCESS AUTOMATION MANUAL Functional Safety Solenoid Driver HiD2872, HiC2873(Y1), HiD2876, HiC2877 ISO9001...
- Page 2 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.)
-
Page 3: Table Of Contents
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Content Introduction ........... 4 Content of this Document. -
Page 4: Introduction
Additionally, the following parts may belong to the documentation, if applicable: • EU-type examination certificate • EU declaration of conformity • Attestation of conformity • Certificates • Control drawings • FMEDA report • Assessment report • Additional documents For more information about Pepperl+Fuchs products with functional safety, see www.pepperl-fuchs.com/sil. -
Page 5: Safety Information
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Introduction Safety Information Target Group, Personnel Responsibility for planning, assembly, commissioning, operation, maintenance, and dismounting lies with the plant operator. Only appropriately trained and qualified personnel may carry out mounting, installation, commissioning, operation, maintenance, and dismounting of the product. -
Page 6: Symbols Used
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Introduction Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid property damage. -
Page 7: Product Description

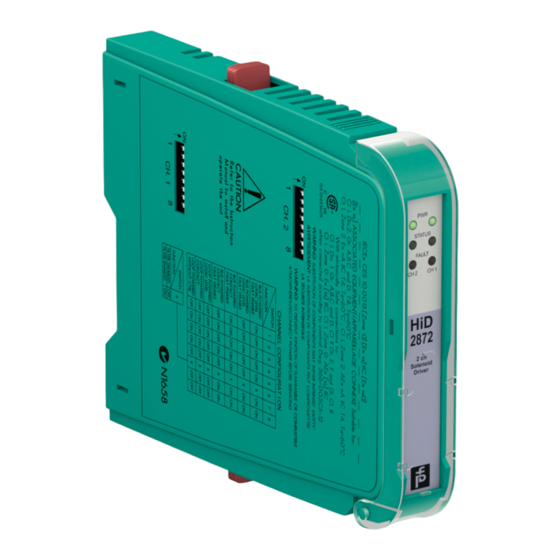

Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Product Description Product Description Function General This isolated barrier is used for intrinsic safety applications. The device supplies power to solenoids, LEDs and audible alarms located in a hazardous area. The output signal has a resistive characteristic. As a result the output voltage and current are dependent on the load. - Page 8 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Product Description HiC2873Y1 This device is a 1-channel device. The device is bus powered. The device is controlled with a switch contact, transistor, or logic signal. At full load, 12 V at 40 mA (with 55 mA current limit) is available for the hazardous area application.
-
Page 9: Interfaces
The device has the following interfaces. • Safety relevant interfaces: • HiC2873(Y1), HiC2877: input I, output I • HiD2872, HiD2876: input I, input II, output I, output II • Non-safety relevant interfaces: power supply, fault output Note! For corresponding connections see datasheet. Marking Pepperl+Fuchs GmbH Lilienthalstraße 200, 68307 Mannheim, Germany... -
Page 10: Planning
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Planning Planning System Structure 3.1.1 Low Demand Mode of Operation If there are two control loops, one for the standard operation and another one for the functional safety, then usually the demand rate for the safety loop is assumed to be less than once per year. -
Page 11: Assumptions
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Planning Assumptions The following assumptions have been made during the FMEDA: • Failure rate based on the Siemens standard SN 29500. • The device will be used under average industrial ambient conditions comparable to the classification "stationary mounted" according to MIL-HDBK-217F. -
Page 12: Safety Function And Safe State
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Planning Safety Function and Safe State Safe State The safe state of the output is the de-energized state. The output current is less than 0.4 mA. Safety Function The output is de-energized if the input is in low state. The low state is reached when the input voltage is 5 V or below or the contact is open. -
Page 13: Characteristic Safety Values
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Planning Characteristic Safety Values SIL 3 Application (Loop Powered) Parameters Characteristic values Assessment type FMEDA report Device type Mode of operation Low demand mode, high demand mode or continuous mode Safety function De-energized if the input is in low condition 127 FIT ... - Page 14 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Planning SIL 2 Application (Bus Powered) Parameters Characteristic values Assessment type FMEDA report Device type Mode of operation Low demand mode, high demand mode or continuous mode Safety function De-energized if the input is in low condition 97 FIT ...
-
Page 15: Useful Lifetime
As noted in DIN EN 61508-2:2011 note N3, appropriate measures taken by the manufacturer and plant operator can extend the useful lifetime. Our experience has shown that the useful lifetime of a Pepperl+Fuchs product can be higher if the ambient conditions support a long life time, for example if the ambient temperature is significantly below 60 °C. -
Page 16: Mounting And Installation
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Mounting and Installation Mounting and Installation Mounting and Installing the Device 1. Observe the safety instructions in the instruction manual. 2. Observe the information in the manual. 3. Observe the requirements for the safety loop. -
Page 17: Operation
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Operation Operation Danger! Danger to life from missing safety function If the safety loop is put out of service, the safety function is no longer guaranteed. • Do not deactivate the device. • Do not bypass the safety function. - Page 18 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Operation Equipment required: • Digital multimeter with an accuracy of 0.1 % Use for the proof test of the intrinsic safety side of the device a special digital multimeter for intrinsically safe circuits. If intrinsically safe circuits are operated with non-intrinsically safe circuits, they must no longer be used as intrinsically safe circuits.
- Page 19 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Operation HiC2877 Multimeter Multimeter (mA) load 1a, 1b 24 V DC 2a, 2b FAULT Zone 0, 1, 2 Div. 1, 2 Termination Board Figure 5.1 Proof test set-up for 1-channel devices (example HiC2877) HiC2873Y1...
- Page 20 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Operation HiD2876 Multimeter Multimeter (mA) load Multimeter Multimeter (mA) load 1a, 1b 24 V DC 2a, 2b FAULT Zone 0, 1, 2 Div. 1, 2 Termination Board Figure 5.3 Proof test set-up for 2-channel devices (example HiD2876) The easiest way to test HiD devices by using a stand-alone HiDTB**-SCT-***-**-** termination board.
-
Page 21: Maintenance And Repair
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Maintenance and Repair Maintenance and Repair Danger! Danger to life from missing safety function Changes to the device or a defect of the device can lead to device malfunction. The function of the device and the safety function is no longer guaranteed. -
Page 22: List Of Abbreviations
Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 List of Abbreviations List of Abbreviations Emergency Shutdown Failure In Time in 10 FMEDA Failure Mode, Effects, and Diagnostics Analysis Probability of safe failure Probability of dangerous detected failure Probability of dangerous undetected failure ... - Page 23 Functional Safety HiD2872, HiC2873(Y1), HiD2876, HiC2877 Notes...
- Page 24 PROCESS AUTOMATION – PROTECTING YOUR PROCESS Worldwide Headquarters Pepperl+Fuchs GmbH 68307 Mannheim · Germany Tel. +49 621 776-0 E-mail: info@de.pepperl-fuchs.com For the Pepperl+Fuchs representative closest to you check www.pepperl-fuchs.com/contact www.pepperl-fuchs.com Subject to modifications DOCT-3721C Copyright PEPPERL+FUCHS • Printed in Germany 07/2019...
