Enerwave ZW15R-N Installation Instructions

INSTALLATION NSTRUCTIONS
DESCRIPTION

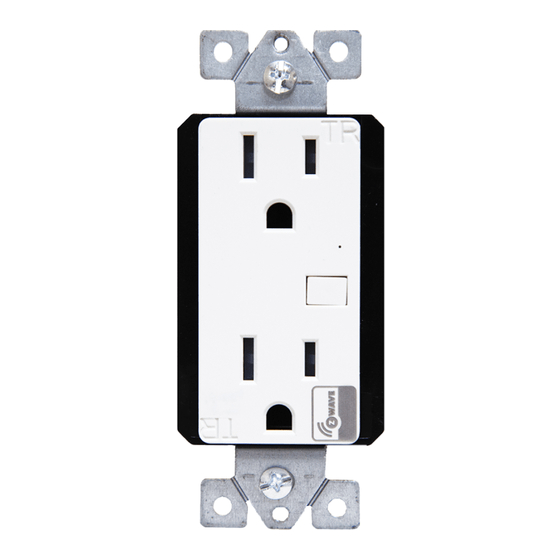

The ZW15R-N is a technologically advanced Tamper Resistant Duplex Receptacle. The
top receptacle is "always ON" and the bottom receptacle is Z-Wave controlled. For the
advanced users, the functions are programmable for setting scenes, associations and
scheduling events.
FEATURES
• Replaces standard 120VAC receptacles
• Wireless Z-Wave technology creates a mesh network for command and control
interoperability with other Z-Wave compliant controllers and devices
• Manual and remote on/off control of any connected load
• Tamper-resistant (TR) receptacles keep you and your family safe
• Reduce energy consumption and enjoy wireless home automation
• Over Current and Short Circuit protection up to 15A
REQUIREMENTS
Z-Wave devices requires a connection to a compatible hub. Once the device is properly added to the Hub, it can be
managed and customized to your needs. Please visit www.enerwaveautomation.com for a list of compatible hubs.
SPECIFICATIONS
Voltage.............................................................................................120VAC, 60Hz
Incandescent................................................................................................1000W
Ballast.........................................................................................................1200VA
Resistive..............................................................................................1800W(15A)
Motor............................................................................................................ 1/2 HP
Z-Wave Frequency.............................................................................. 908.42 MHz
Operating Temperature........................................................................... 32-104° F
WARNING:
Turn the POWER OFF at the circuit breaker before installing the Receptacle
Read and understand these instructions before installing. This device is intended for installation in accordance with the National Electric Code and local regulations. It is recommended that a qualified electrician performs this installation. Make sure to turn off the circuit breaker or fuse(s)
and make sure power is off before wiring the device. Exercise extreme caution when using Z-Wave devices to control appliances. Operation of the Z-Wave device may be in a different room than the controlled appliance so an unintentional activation may occur if the wrong button on
the remote is pressed. Z-Wave devices can be automatically powered on by programmed events. Unattended or unintentional operation could result in hazardous conditions. Z-Wave enabled devices should never be used to supply power to, control, or monitor medical and/or life
support equipment. Use copper wires only.
Model: ZW15R-N
Wireless Home Automation Control Device
15A Tamper Resistant Duplex Receptacle
with Interchangeable Face Cover
LOCATIONS
Installation of Z-Wave devices instantly increases the functionality, efficiency, and value of your home. The more devices you install, the more efficient your house will be. The most effective
locations to install Z-Wave devices are in the Living Room, Bedrooms, Kitchens, Family Rooms, Guest Rooms, and Entertainment Rooms.
This device complies with the Z-Wave standard of open-air, line of sight transmission distances of 100 feet. Actual performance in a home depends on the numbers of walls between the remote
controller and the destination device, the type of construction and the number of Z-Wave enabled devices installed in the control network. Z-Wave devices act as signal repeaters ONLY after
they are "Included" on the network.
NOTES
This Z-Wave device must be configured and added to a Z-Wave network
before it can be operated and controlled from a smart device. Follow the
instructions on the next page and the manual(s) associated with the Hub
for configuration.
FCC COMPLIANCE STATEMENT
FCC Grant of Equipment Authorizations of this device and transmitters installed in this device can be found at FCC website by entering the FCC ID number on the device.
Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's right to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARRANTY INFORMATION
This device is warranted to be free of material and workmanship defects for 2 years from the date of
purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty
claim. ALL claims must be verified and approved by Enerwave, Inc. Warranties from other Enerwave
products may vary. This warranty is nontransferable and does not cover normal wear and tear or any
malfunction, failure, or defect resulting from misuse, abuse, neglect, alteration, modification, or improper
installation. To the fullest extent permitted by the applicable state law, Enerwave shall not be liable to the
purchaser or end user customer of Enerwave products for direct, indirect, incidental, or consequential
damages even if Enerwave has been advised of the possibility of such damages. Enerwave' total liability
under this or any other warranty, express or implied, is limited to repair, replacement or refund. Repair,
replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.

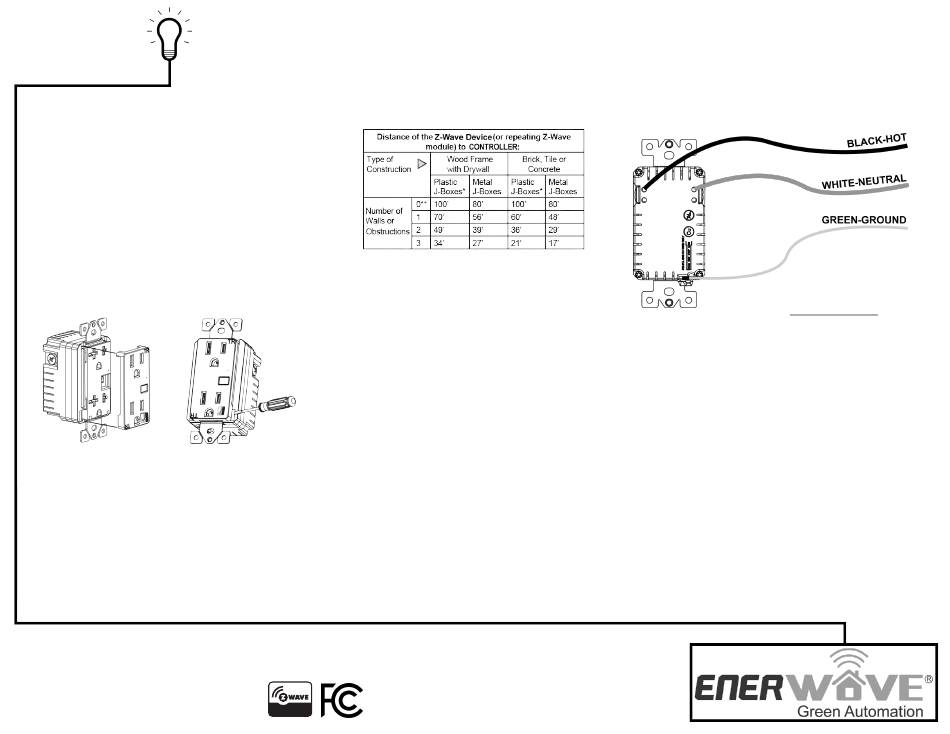

INSTALLING Z-WAVE RECEPTACLES
DO NOT REVERSE ANY WIRES. DOING SO WILL VOID YOUR WARRANTY AND
THE RECEPTACLE WILL SHORT CIRCUIT.
Step 1. Identify all your wires. Label the wires or draw a diagram of existing wires.
Step 2. Insert wires into the terminal holes on the back, then tighten the terminal screws.
Connect the BLACK wire to the HOT terminal (brass screw).
•
Connect the WHITE wire to the NEUTRAL terminal (silver screw).
• Connect the GREEN or BARE wire to the GROUND terminal (green screw).
© 2016 Enerwave Home Automation ● WWW.ENERWAVEAUTOMATION.COM ● CA, USA
If you have trouble identifying the wires,
STOP and consult with an electrician.
0209160046-03
