INSTALLATION INSTRUCTIONS

Z-Wave Magnetic Door/Window Sensor
SPECIFICATIONS
Power Supply..........................................................CR2 battery ×1pcs
Operation Gap................................................................Up to 1/2 inch
Operation Temperature...........................................................32-104°F
RF Range....................................................Up to 100 feet line of sight
Z-Wave Frequency............................................................ 908.42MHz
FEATURE
Battery-powered Z-Wave device for easy installation
Provide Open/Close status to monitor door or window
Battery life approximately 1 year and Low battery detection
Support Z-Wave associations, sending commands up to 5
associated Z-Wave devices
For indoor use only
DESCRIPTION
The ZWN-BDS is a battery-powered and magnetic contact sensor
that wirelessly controls lights and appliances throughout your
house. When magnetic contact is broken, such as a door or
window being opened, the ZWN-BDS transmits Open/Close status
to the gateway and can do things like turning on lights, setting the
thermostat to a comfortable setting and notify you when the door
or window is opened and the sensor is armed.
- 01-

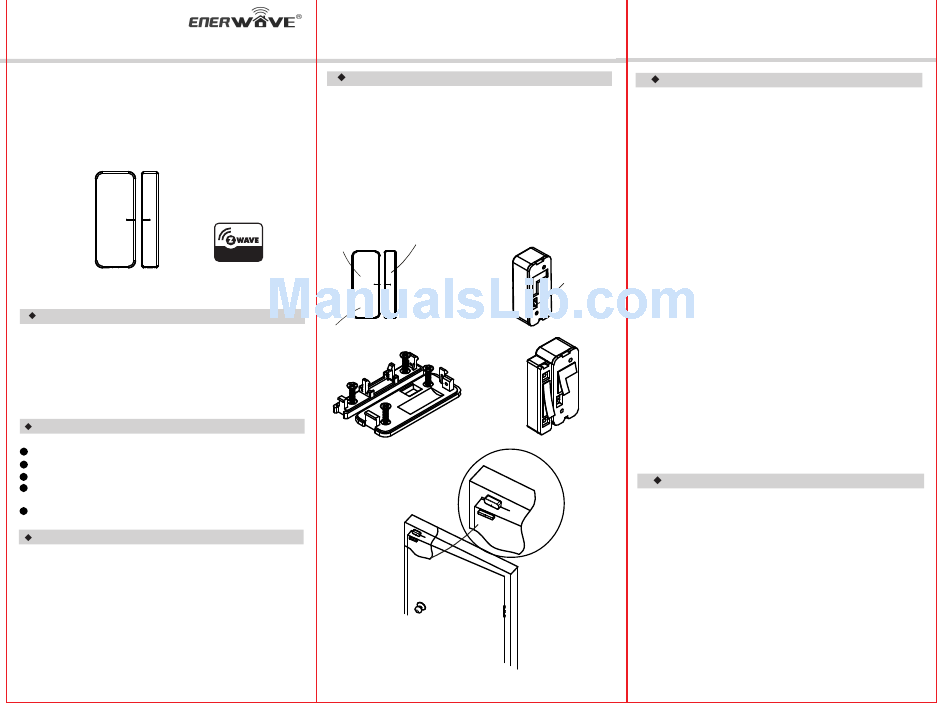

INSTALLATION
ZWN-BDS
1. The Door/Window Sensor consists of two parts: Sensor Unit and
Magnetic Bar.
2. Insert one CR2 battery to the Sensor Unit (noting the proper
orientation).
3. Place Both Sensor Unit and Magnetic Unit by using screws and/or
adhesive pad.
4. The Sensor Unit and Magnetic Bar can be mounted vertically or
horizontally. It is recommended to mount the Sensor Unit to Door/
Window frame and Magnetic Bar to the Door/Window, no more than
1/2 inch apart. Ideally, the Door/Window frame should be wooden
because of metal surface could sometime cause signal interference.
Magnetic Bar
Sensor Unit
Status LED
Right
Program Button
Screws and Adhesive Pad Mounting
-02-
OPERATION
Adding to Z-Wave network
At the back of Door/Window Sensor, there is a program button which
is used to do adding/deleting and association. Also it can be used as a
tamper alarm button, and wake up Door/Window sensor manually.
Adding
1. Set a Z-Wave controller into adding mode.
2. Press and release the program button located at the back of Door/
Window sensor to add it into your Z-Wave network and send
Node Information Frame.
3. Status LED will stay solid for 10 seconds and turn off when succeeds.
4. If the LED never light on and adding mode times out, then repeat the
adding process again and delete it if necessary.
Deleting
1. Set a Z-Wave controller into deleting mode.
2. Press and release the program button located at the back of Door/
Window sensor to delete it into your Z-Wave network and remove
Node Information Frame.
3. Status LED will blink 3 times after press the program button, that
means it is not in any Z-Wave network.
Association
To complete Z-Wave association, please refer to your controller's
manual. Each controller has its own association method. If your
controller needs sensor to wake up, please press and hold the
program button for 2 seconds, release the button when status
LED turns off, the ZWN-BDS will wake up manually.
Note: If the Door/Window sensor is not added in Z-Wave
network, status LED will blink three times when power
applied or program button pressed.
ADVANCED FEATURE
Wakeup command class
The Door/Window sensor will send a wakeup notification command if
it has been added into a Z-Wave network. The Door/Window Sensor
will wake up periodically(default is 30 minutes) as desired depending
on time interval you set from wakeup command class and resend the
wakeup notification command unless configured for another time interval.
The Door/Window sensor will stay awake for 10 seconds and then go
back to sleep to conserve battery life. If the Door/Window sensor
hasn't been added to any network, it stays awake only for 1 second.
It will also go to sleep when receives command WAKE_UP
The Door/Window Sensor can be woken
MORE_NOTIFICATION_V2.
up manually: press and hold the program button for one second, when
release the button it will
send broadcast wakeup notification or singlecast
wakeup notification to associated devices.
-03-
