Enerwave ZWN-BDS Installation Instructions

INSTALLATION INSTRUCTIONS

Z-Wave Magnetic Door
SPECIFICATIONS
Power Supply........................................................CR2 battery ×1pcs
Operation Gap...............................................................Up to 1/2 inch
Operation Temperature.........................................................32-104°F
RF Range....................................Up to 131 feet line of sight between
the Wireless Controller and the closest Z-Wave receiver module.
Z-Wave Frequency........................................................... 908.42MHz
FEATURE
Battery-powered Z-Wave device for easy installation
Provide Open/Close status to monitor door or window
Battery life approximately 1 year and Low battery detection
Support Z-Wave associations, sending commands up to 5 associated
Z-Wave devices
For indoor use only
DESCRIPTION
The ZWN-BDS is a battery-powered and magnetic contact sensor
that indirectly controls lights and appliances throughout your house.
It is fully compatible with other Z-Wave certified device from other
manufacturers and/or other applications. When magnetic contact is
broken, such as a door or window being opened, the ZWN-BDS
transmits Open/Close status to the gateway, which can do things like
turning on lights, setting the thermostat to a comfortable setting and
notify you when the door or window is opened and the sensor is armed.
INSTALLATION
1. The Door/Window Sensor consists of two parts: Sensor Unit and
Magnetic Bar.
2. Insert one CR2 battery to the Sensor Unit (noting the proper
orientation).
- 01-
ZWN-BDS
3. Place Both Sensor Unit and Magnetic Unit by using screws and/or
adhesive pad.
/Window Sensor
4. The Sensor Unit and Magnetic Bar can be mounted vertically or
horizontally. It is recommended to mount the Sensor Unit to Door/
Window frame and Magnetic Bar to the Door/Window, no more than
1/2 inch apart. Ideally, the Door/Window frame should be wooden
because of metal surface could sometime cause signal interference.

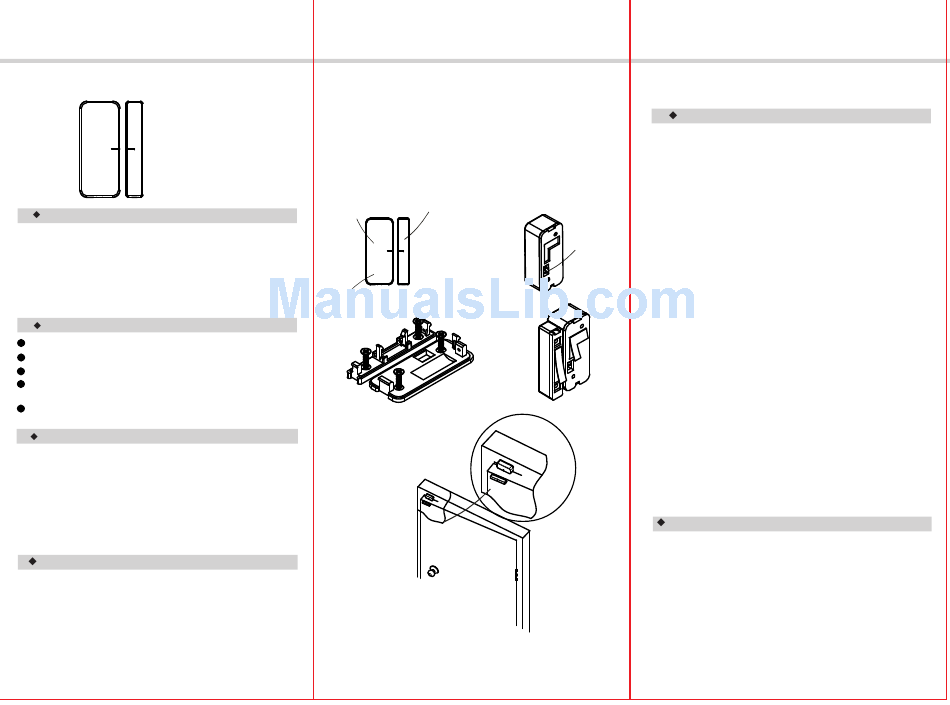

Sensor Unit
Status LED
Magnetic Bar
Right
Screws and Adhesive Pad Mounting
-02-
OPERATION
Adding to Z-Wave network
At the back of Door/Window Sensor, there is a program button which
is used to do adding/removing and association. Also it can be used as
a tamper alarm button, and wake up Door/Window sensor manually.
The program button on the ZWN-BDS Z-Wave Magnetic Door/Window
Sensor allows the user to:
ADD AND REMOVE
Program Button
1. When the primary controller is in the adding mode, flicks the paddle
3 times in the 1.5 second. The primary controller will verify the adding.
2. When the primary controller is in the removing mode, flicks the
paddle 3 times in the 1.5 second. The primary controller will verify the
removing, remove the module from the current Z-Wave network.
Manual Control
3. Short press the program button of ZWN-BDS ,that will send a
wake up notification.
4. Flicks the program button 3 times in the 1.5 second then press once
and hold for 2 second. the device will send a device reset locally
notification to controller. Then clear all of information for the network,
and restore factory defaults, and reset the module. Use this procedure
only in the event that the network primary controlleris missing or
otherwise inoperable.
5. Press and hold the program button, the device will send Alarm Re-
port:0x07 0x00, that means normal installation. When release it, the de-
vice will send Alarm Report: 0x07 0x03, that means abnormal installation.
ADVANCED FEATURE
Wakeup command class
The Door/Window sensor will send a wakeup notification command
if it has been added into a Z-Wave network. The Door/Window Sensor
will wake up periodically(default is 5 minutes) as desired depending
on time interval you set from wakeup command class and resend
the wakeup notification command unless configured for another time
interval.
