1-Input Link
The two input s can be joined by this link so that
one level of alarm is INSTANT and a second level
DELAYED. To access this link , remove the 4 case
screws and separate the two halves.

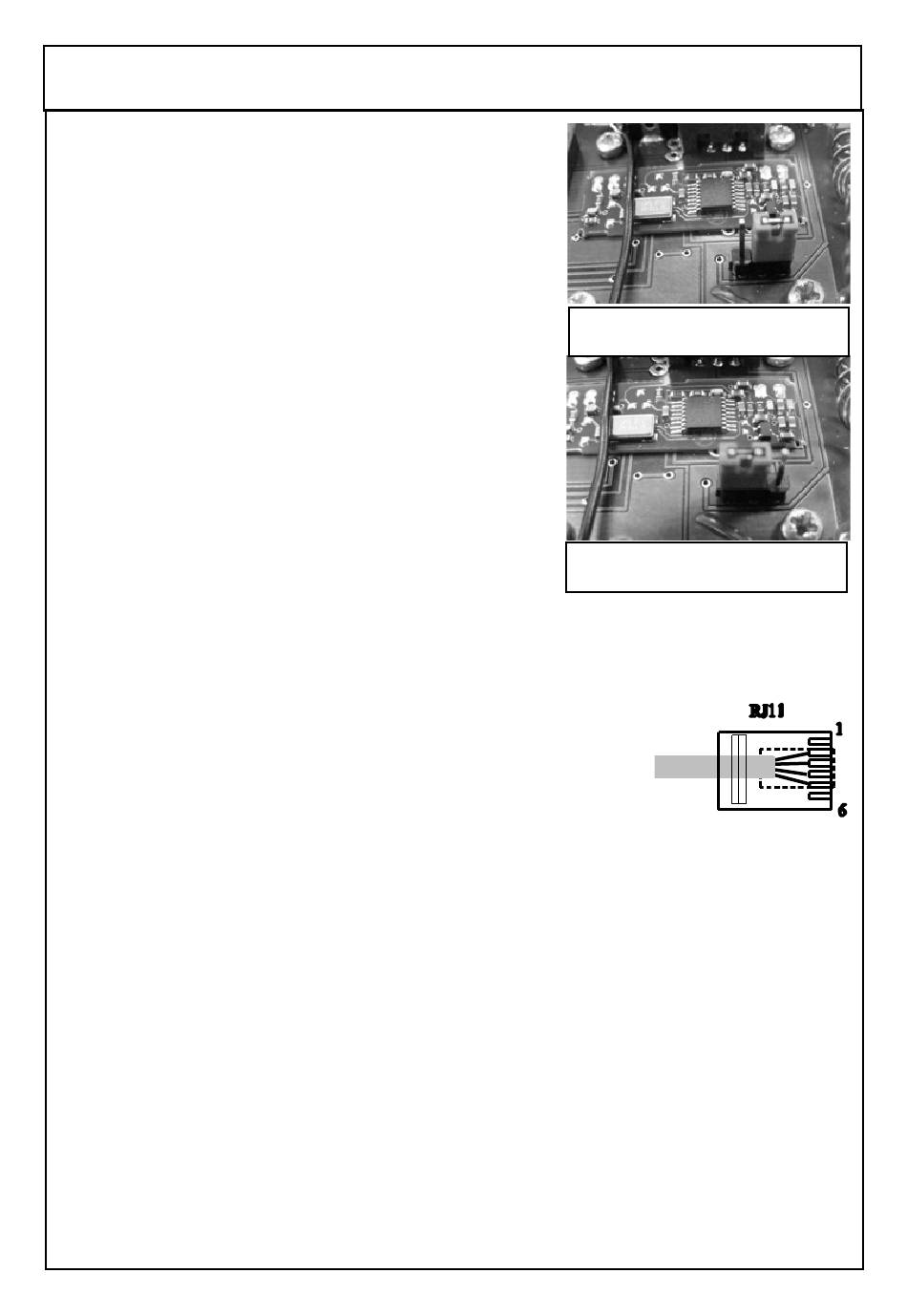

The picture shows the two possible positions for the
Bed/Chair Vacation Alarm.
For the other versions the Delay Only Option is set
by removing the link
Nurse Call Activation
The Nurse Call connection will be activated for 1
second (as if a button was pressed) and this will
happen every 10 seconds to ensure the room call
box cannot be reset without resetting the P163. In
general the P163 will be set as non-latching so that
the alarm will reset once the danger condition is
resolved.
The P163 has a changeover
relay output as detailed below.
A range of Nurse Call &
Telecare leads can be supplied
to connect to standard
UH1142B P163 Wired General Interface v2 page 8 of 8
Technical Information & Configuration
Pin
1
2
3
4
5
6
INSTANT + DELAY
P139BAA DELAY only
Function
Normally Closed
Normally Open
Common
