Input Connections - Alert-it Care Systems P163 B Series Handbook

Input Connections

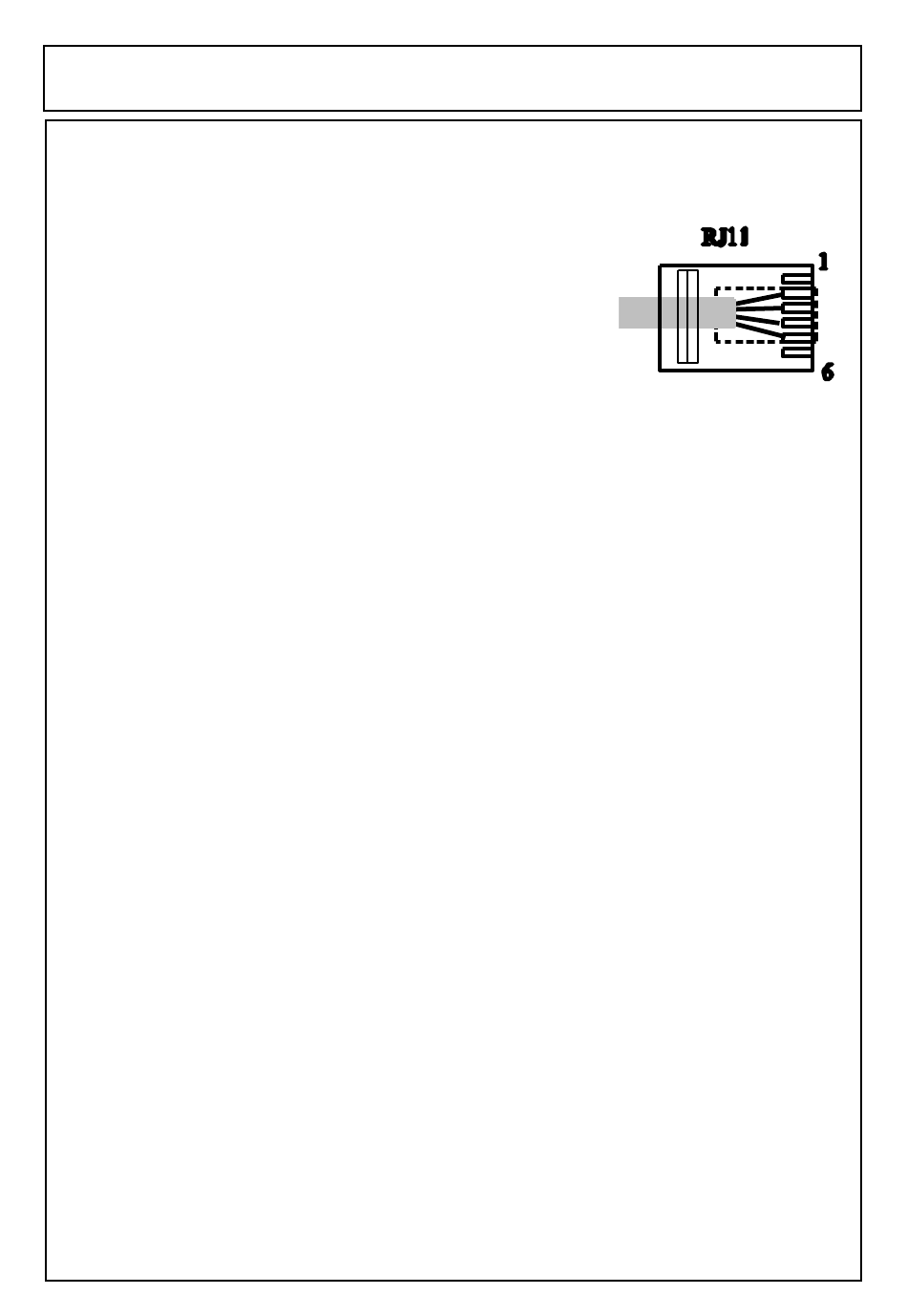

The connection details
for the unit are shown
above and, in general,
the alarms will be
activated when a
connection is made
from pin 2 or pin 3 to
0v (pin 4 or 5).
Pin 3 causes
instant trans-
mission of the
alarm, while pin 2 will delay transmission for a time that
will have been programmed into the unit.
Technical Information & Configuration
pin Function
1 +12v (option)
2 Delay in
3 Instant in
4 0v
5 0v
5 No connection Blue
UH1142B P163 Wired General Interface v2 page 7 of 8
FCC64
cable
Brown
Yellow
Green
Red
Black
Input connection details
