SETUP MODE NAVIGATION

Button Operation

The three buttons on the ARP Control that performs the following functions when in the SetUp
mode:
On/Off Button: Turn off the control by pressing and holding until OFF is displayed. One may
turn off the ARP at anytime in the SetUp Mode without saving any changes.
Display Button: The display button is used to advance to the next SetUp variable. By
repeated pushing of the display button the variables will advance to the store function (S--),
and to the IEC errors recorded (Er0). The next press of the display button will rotate back to
the first variable AtO to start the sequence over.
SetUp Button: The SetUp button will change the value of adjustable variables. Each push of
the SetUp button will increment the value by +1 up to the maximum value, and then rotate
back to zero depending on the variable.

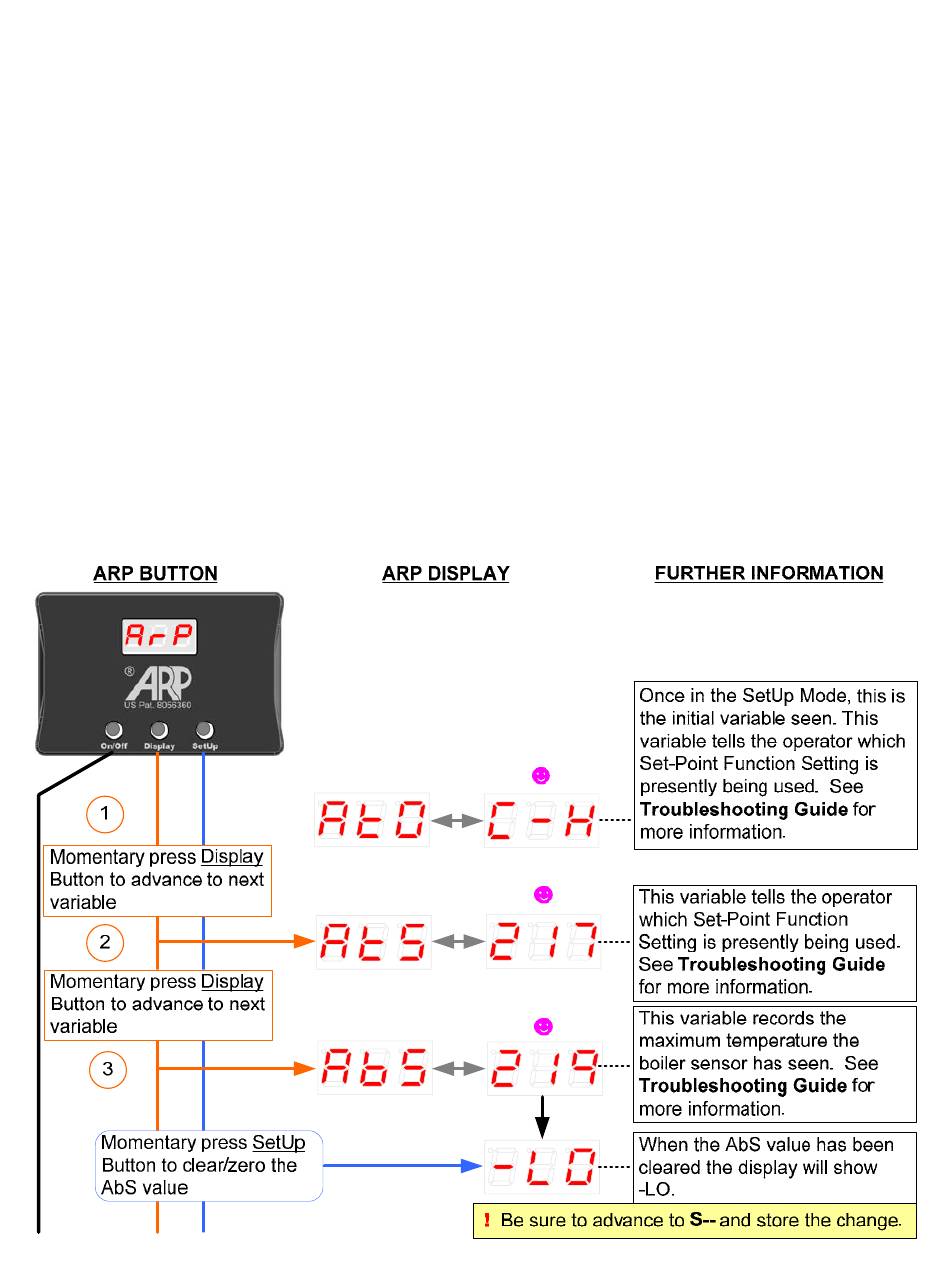

Navigation Flow Diagram

Note: All initial values seen in this diagram are the default values in the C-H mode, your
values may be different depending on the control mode or units of temperature display.
