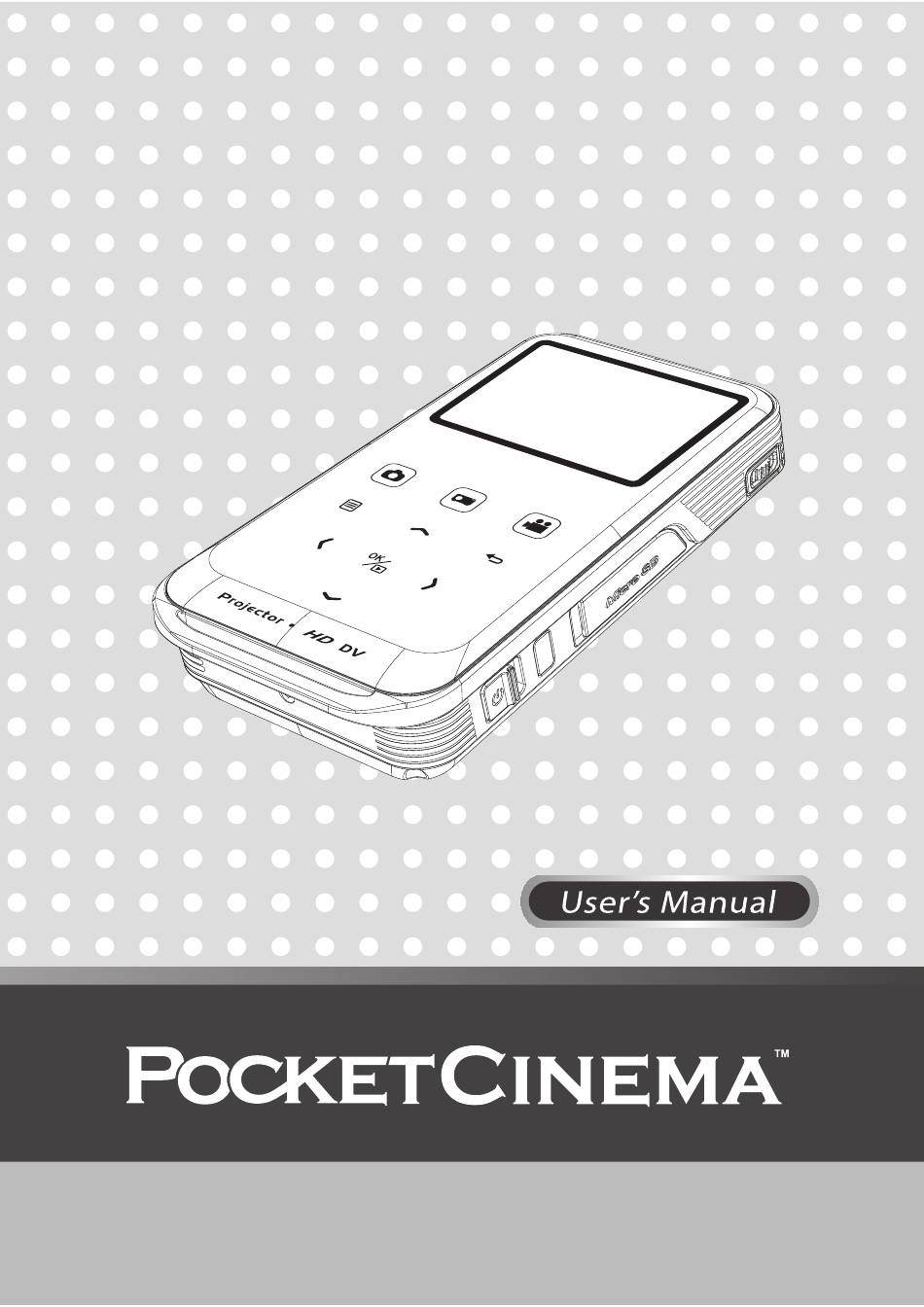

AIPTEK PocketCinema Z20 User Manual

Hide thumbs Also See for PocketCinema Z20:

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PocketCinema Z20 and is the answer not in the manual?

Questions and answers

Summary of Contents for AIPTEK PocketCinema Z20

  • Page 2 Welcome: Thank you kindly for purchasing this fine product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Safety Notice: 1. Do not drop, puncture or disassemble the device; otherwise the warranty will be voided. 2.
  • Page 3 Care and Safety Information: Please follow all warnings, precautions and maintenance as recommended in this user’s guide. Warning- Keep away from liquid to avoid electric fires. Warning- Do not disassemble the projector. Warning- Avoid facing directly into projector’s lens. Eye Safety Warnings Avoid Hearing Damage: Avoid staring/facing directly into Listening at high volume for a...
  • Page 4: Table Of Contents

    Table of Contents Getting Started ..............1 Product overview .................. 1 Package Content .................. 2 Remote Controller................. 2 Reading LED indicators ................ 3 Charging the battery ................3 Inserting a memory card (optional) ............4 Turning on/off your projector ..............4 Setting language ...................
  • Page 5: Getting Started

    Getting Started Product overview Projection button Shutter button Record button Up button (Zoom in) Menu button Return Button Right button (LED light) Left button (Folder) OK button Down button (Zoom out) Focus switch Micro SD card slot IR receiver Power Switch Tripod socket Speaker Camcorder...
  • Page 6: Package Content

    Package Content Projector Quick Guide Tripod AC power adapter USB cable AV cable (RCA Pouch Remote Controller female to mini jack) Optional Accessory: iPod cable, AV cable (mini jack to mini jack ), AV cable (RCA male to mini jack), HDMI cable, Pouch (bigger), Projection screen Remote Controller Up button...
  • Page 7: Reading Led Indicators

    Reading LED indicators The Power LED is lighting orange when projector is charged. The Power LED is lighting green when connected with AC power adapter in standby mode or the battery is fully charged. Charging the battery Connect one end of the supplied AC adapter to the USB port of the projector and the other end to a wall outlet.
  • Page 8: Inserting A Memory Card (Optional)

    Inserting a memory card (optional) Open the Micro SD card cover. Gently push the card as indicated (golden-fingers facing upwards) until the card reaches the end of the slot. When the card is inserted successfully, the icon ( will appear on screen. To remove the card, push the card to release it and then pull it out gently.
  • Page 9: Button Operation

    Button Operation How to Action Bring up the menu Press the MENU button. Move the highlight bar Press the Up/Down/Left/Right button. Press the OK button. Enter sub-menu/Confirm an item Exit menu/Go back to upper menu Press the Return button (when in sub-menu). Reading LCD indicators 00:03:12 Video resolution...
  • Page 10: Basic Operations

    Basic Operations Recording a video clip Use the Up/Down ( ) buttons to zoom in or zoom out. Press the Record ( ) button to start recording. Press the Record ( ) button again to stop recording. While recording, press the OK/Quick Playback ( ) button to pause recording, and press the ( ) button again to resume recording.
  • Page 11: Projecting Files

    Projecting files Press the OK/Quick Playback ( ) button or the Left ( ) button. Use the Up/Down buttons to select target folder. When selecting one file, press the OK button to play it. Press the Projection button ( ) to project. ( is lighting blue in working mode;...
  • Page 12 During Playback • Playing Video Press Left/Right button to move to previous/next file. Long press Left/Right button to fast forward and fast rewind. Use Up/Down button to control volume. Press the OK button to pause the video (OK again for continue). The following status information will pop up.
  • Page 13 • Menu items in Playback mode When playback video or photo files, press Menu ( ) button to set up the following features. Pressing menu button to bring up and close the menu screen. Item Description Delete Delete the files. Repeat playing files in the folder.
  • Page 14 Adjusting the Projected Image Projection Distance Screen size - Width Screen Size - Height Screen Diagonal (cm) (inch) (cm) (inch) (cm) (inch) (cm) (inch) 19.0 12.2 15.2 38.1 24.4 18.3 30.5 12.0 63.5 40.6 16.0 30.5 12.0 50.8 20.0 101.3 39.9 65.0 25.6...
  • Page 15: Playing Files In Other Devices

    Playing files in other devices Connecting the projector with your media players Before connecting your media player to projector, you need to have media player dedicated com- posite AV-out cable and projector AV cable ready. Projector AV cable Composite AV-out cable DVD Player/ SAT-Receiver...
  • Page 16 Connecting the projector with HDTV (optional) HDMI In HDMI Out HDMI cable (Optional) Turn on your HDTV. Connect the HDMI-in connector (the bigger end) of the HDMI cable to the HDTV. Turn on the camcorder. Connect the other end of the HDMI cable to your camcorder. Switch the HDTV to “HDMI input”...
  • Page 17: Advanced Operations

    Advanced Operations Menu Setting items Item Option Description QVGA Set the video resolution to QVGA (320x240 pixels). Set the video resolution to VGA (640x480 pixels). Video Resolution DVD(WVGA) Set the video resolution to DVD (854x480 pixels). HD(720P) Set the video resolution to HD 720P (1280x720 pixels). Set the picture resolution to 3 mega pixels.
  • Page 18: File Management With A Pc

    File management with a PC For select model only. Please refer to the package printing for detailed specification. Follow the procedures below to manage files in either built-in memory or memory card by using a PC or Notebook. Make sure the projector is powered off. Connect one end of the bundled USB cable to the USB port of the projector and the other end to a powered PC.
  • Page 19 How to download YouTube video for projection During installing ArcSoft Media Converter (AMC), you are recommended to install ArcSoft Video Downloader as well. It will bring you more convenience to download the videos from the Internet and convert them as mp4 format to be played back in your projector. Then you can share them with your family and friends.
  • Page 20: Flicker Setting Table

    Flicker Setting Table Region England Germany France Italy Spain Netherlands Russia Setting 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz Region Portugal America Taiwan China Japan Korea Thailand Setting 50Hz 60Hz 60Hz 50Hz 50/60Hz 60Hz 50Hz Battery Life Indicator Icon Description Full battery life Moderate battery life Low battery life...
  • Page 21: Usb Projection (Optional)

    For select model only. Please refer to the package printing for detailed specification. USB Projection (optional) System requirements - Pentium 4 / Athlon / Core 2 Duo 2.6 GHz or higher processor. - 1GB RAM or higher (Higher memory recommended for optimal performance) - Available USB 2.0 port - Windows XP SP2 / Windows Vista / Windows 7 - Recommended Resolution for video projection: 800*600...
  • Page 22 Installing Driver Make sure the projector is powered off. Connect one end of the bundled USB cable to the USB port of the projector and the other end to a powered PC. Please switch on the projector and wait until the picture below appears on the projection screen.
  • Page 23 Click Install to begin the installation. Installing driver. (The actual screen may vary depending on the operating system you use.) Click Finish.
  • Page 24 Please unplug the USB cable for a second to exit Disk mode. Then restart your computer then plug the USB cable again. Please switch on the projector and wait until the picture below appears on the projection screen. Select “USB Projection” and press OK. Disk USB Projection You will find a small projector icon (...
  • Page 25 Verification device driver installation The following procedure allows you to verify the device driver installation. Please right click “My Computer” -> ”Properties” -> ”Hardware” -> ”Device Manager”. (For Windows XP user) Please right click “Start” -> “My Computer” -> ”Device Manager”. (For Windows Vista and Windows 7 users) Then double click ”Imaging devices”.
  • Page 26: Specifications

    Specifications Item Description Light Source RGB LED LCD Display 2.4” (6 cm) LCD Brightness 15 Lumens (AC Mode); 12 Lumens (Battery Mode) Aspect Ratio Resolution 640 x 480 (VGA) Pixels Projection Image Size 15 cm ~ 165.1 cm (6” ~ 65” Diagonal) Projection Distance 19 cm ~ 206 cm Contrast Ratio...
  • Page 27 Item Description Dimension (LxWxH) 125 x 62 x 24 mm AV cable (RCA female to mini jack), USB cable, Tripod, AC Package Content power adapter, Quick Guide, Remote controller, Pouch iPod cable, AV cable (mini jack to mini jack ), AV cable (RCA Optional Accessory male to mini jack), HDMI Cable, Pouch (bigger), Projection screen...
  • Page 28: Troubleshooting

    Troubleshooting If your projector does not seem to be functioning properly, check the items below before you contact an authorized service center. Symptom Check Point The projector can not be • Ensure the battery is fully charged or the AC power adapter turned on.
