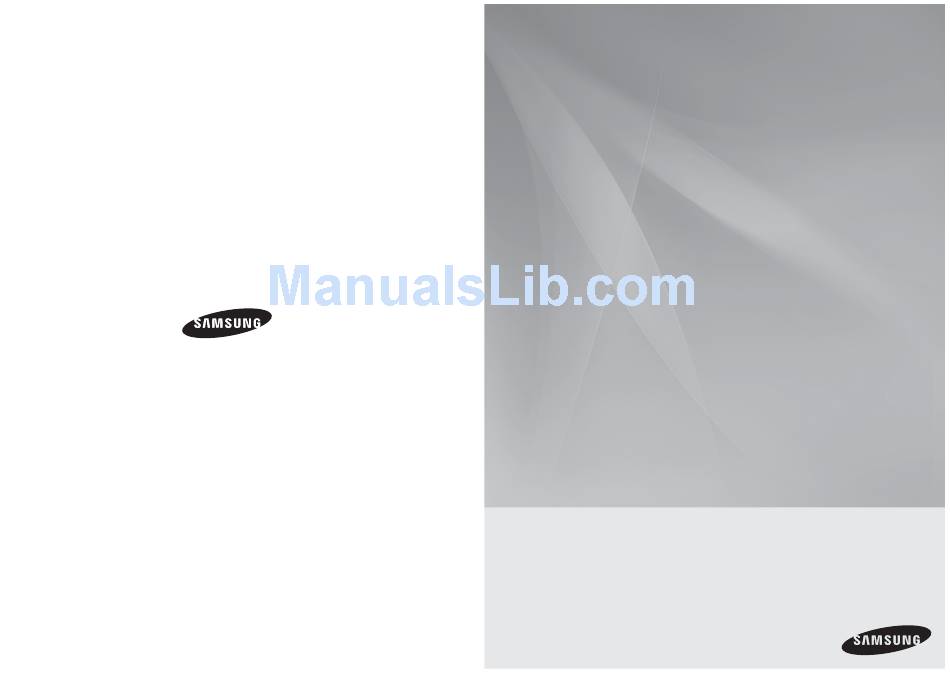

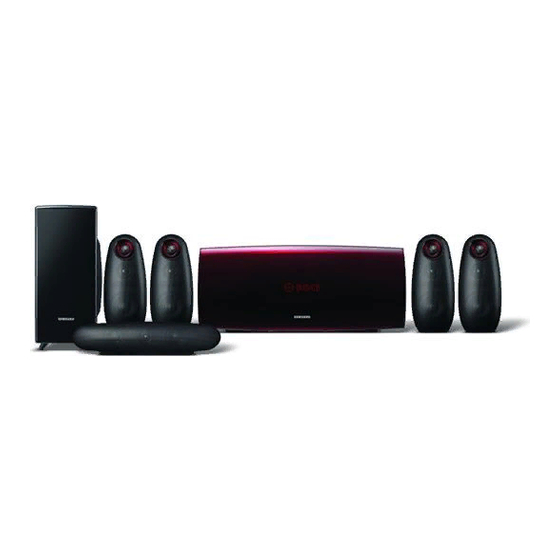

- Page 1 Code No. AH68-02068F(1.0) HT-XA100 HT-XA100C Digital Home Cinema System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register...
-
Page 2: Safety Information
Anynet+(HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.) WHAT’S INCLUDED... -
Page 3: Wiring The Main Power Supply Plug (Uk Only)
safety information Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. -
Page 4: Table Of Contents
contents FEATURES What’s included SAFETY INFORMATION Safety Warnings Precautions GETTING STARTED Before Reading the User’s Manual Playable Discs Do not use the following types of disc! Copy Protection Disc Type and Characteristics DESCRIPTION Front Panel Rear Panel REMOTE CONTROL Setting the Remote Control Tour of the Remote Control Connecting the Speakers CONNECTIONS... -
Page 5: Getting Started
© 2008 Samsung Electronics Co.,Ltd. All rights reserved; No part or whole of this user’s manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.,Ltd. DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital surround sound and MPEG-2 video compression technology. -
Page 6: Disc Type And Characteristics
getting started DISC TYPE AND CHARACTERISTICS This product does not support Secure (DRM) Media fi les. ❖ CD-R Discs • Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. •... -
Page 7: Rear Panel
If there is more than one code listed for your TV in the table, enter one at a time to determine which code works. Example : For a Samsung TV While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40. -
Page 8: Tour Of The Remote Control
remote control TOUR OF THE REMOTE CONTROL DVD RECEIVER button TV button POWER button Number (0~9) buttons REMAIN button STEP button Tuning Preset/CD Skip buttons VOLUME button MENU button AUDIO button TUNER MEMORY, SD(Standard Definition)/HD(High Definition) button ZOOM button P.BASS button SLEEP button SLOW, MO/ST button Insert Remote Batteries... -
Page 9: Tv Brand Code List
RCA/Proscan Craig 03, 05, 61, 82, 83, 84 Realistic Croslex Sampo Crown Samsung Curtis Mates 59, 61, 63 Sanyo Daewoo 02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 63 Scott 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90... -
Page 10: Connecting The Optional Wireless Receiving Amplifi Er
If this occurs, place the speaker away from your TV set. CONNECTING THE OPTIONAL WIRELESS RECEIVING AMPLIFIER To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your Samsung retailer. When you have Purchased the Wireless Receiving Module (SWA-4000) Black... -
Page 11: Connecting The Video Out To Your Tv
This product operates in Interlace scan mode 576i(480i) for component output. If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). -
Page 12: Hdmi Auto Detection Function
Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+. Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 21) Set the Anynet+ function on your TV. -
Page 13: Connecting Audio From External Components
connections CONNECTING AUDIO FROM EXTERNAL COMPONENTS AUX1 : Connecting an External Component/MP3 player Components such as an MP3 Player Audio Cable (not supplied) Audio OUT Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of the external component/MP3 player. -
Page 14: Connecting The Fm Antenna
fi re may result.) before using your home theater The DVD Home Theater's remote can be used to control Samsung TVs. Plug the main unit's power cord into the AC power supply. -
Page 15: Disc Playback
playback DISC PLAYBACK Load a disc vertically into the Disc Insert Hole. • Place a disc gently into the tray with the disc’s label facing Close the compartment by pressing the PLAY ( ) button. • Playback starts automatically. To stop playback, press the STOP () button during playback. •... -
Page 16: Jpeg File Playback
playback JPEG FILE PLAYBACK Images captured with a digital camera or camcorder, or JPEG fi les on a PC can be stored on a CD and then played back with this Home Theater. Rotate/Flip Function Press the Cursor ▲, ▼, ◄, ► button during playback. button: Rotate 90°... -
Page 17: Using The Playback Function
playback If the Disc has more than One Subtitle File If the disc has more than one subtitle fi le, the default subtitle may not match the movie and you will have to select your subtitle language as follows: In Stop mode, press the Cursor ▲, ▼ button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button. - Page 18 playback Fast Playback Press the , button. • Each time the button is pressed during playback, the playback speed changes as follows: 2X ➞ 4X ➞ 8X ➞ 32X ➞ PLAY 2X ➞ 4X ➞ 8X ➞ 32X ➞ PLAY ...
- Page 19 playback A-B Repeat Playback You can repeatedly play back a designated section of a DVD. Press the INFO button twice. Press the Cursor ► button to move to REPEAT PLAYBACK ) display. Press the Cursor ▲, ▼ button to select A- and then press the ENTER button.
- Page 20 playback Bonus Group Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging for details and the key number. When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.
-
Page 21: Playing Media Files Using The Usb Host Feature
playback Using the Disc Menu You can use the menus for the audio language, subtitle language, profi le, etc. DVD menu contents differ from disc to disc. In Stop mode, press the MENU button. Press the Cursor ▲, ▼ button or numeric buttons to move to Disc Menu and then press the ENTER button. -
Page 22: System Setup
playback Fast playback During playback, press the , button. • Each time you press either button, the playback speed will change as follows: Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) MP3 Player: HDD and fl... -
Page 23: Setting Tv Screen Type
system setup SETTING TV SCREEN TYPE Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button. Press the Cursor ▼ button to move to Setup and then press the ENTER or ►... -
Page 24: Setting The Wallpaper
This selects one of the 3 wallpaper screens. Press the EXIT button to exit the setup screen. • ORIGINAL : Select this to set the Samsung Logo image as your wallpaper. • USER : Select this to set the desired image as your wallpaper. -
Page 25: Setting The Delay Time
system setup SETTING THE DELAY TIME If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers. In Stop mode, press the MENU button. Press the Cursor ▼... -
Page 26: Setting The Drc (Dynamic Range Compression)
system setup Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button. Press the SOUND EDIT button and then press the Cursor ◄, ► button. • Each time you press the SOUND EDIT button, you can see the balance and level for each speaker. Adjusting Front/Rear Speaker Balance ... -
Page 27: Sound Field (Dsp)/Eq Function
system setup SOUND FIELD (DSP)/EQ FUNCTION DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing Press the DSP/EQ button. -
Page 28: Presetting Stations
radio LISTENING TO RADIO Remote Control Press the TUNER button to select the FM band. Tune in to the desired station. • Automatic Tuning 1 : When the #, $ button is pressed, a preset broadcast station is selected. • Automatic Tuning 2 : Press and hold the ,, . -
Page 29: Troubleshooting
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center. SYMPTOM Check/Remedy I cannot eject the disc. -
Page 30: Usb Host Feature Supported Products
Company Type Product Creative MuVo NX128M Creative 128 MB MP3 Player YP-780 Iriver H320 Iriver 20G HDD MP3 Player YP-35 YH-920 Samsung 20G HDD MP3 Player YP-55 YP-T7 Samsung MP3 Player iAUDIO U2 YP-MT6 Samsung MP3 Player iAUDIO G3 YP-T6... -
Page 31: Specifi Cations
Weights Center : 1.2 kg, Subwoofer : 6.4 kg *: Nominal specifi cation - Samsung Electronics Co., Ltd reserves the right to change the specifi cations without notice. - Weight and dimensions are approximate. Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. -
Page 32: Before Using The Speaker Cords
Before using the speaker cords Pull the fi xing tab of the Toroidal ferrite core to open it. Roll the speaker cords. Insert the Toroidal ferrite core as the fi gure shows and press it until it clicks. When operating the speaker cords, in order to comply with CE EMC Directives and to reduce any possible harmful interference, use the enveloped toroidal ferrite core as...
