wireless
access point
Quick Start Guide
Revision C – 19 December 2016
©Copyright Mine Site Technologies Pty Ltd 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPACT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MST IMPACT

Summary of Contents for MST IMPACT

  • Page 1 wireless access point Quick Start Guide Revision C – 19 December 2016 ©Copyright Mine Site Technologies Pty Ltd 2016...
  • Page 2 MST Quick Start Guide Revision C – 19 December 2016 Revision History Revision Change Date Initial Release 29 April 2016 Technical Updates 15 March 2016 Updated content to WAP-N 19 December 2016 © Mine Site Technologies Pty Ltd 2016...
  • Page 3 MST Quick Start Guide Revision C – 19 December 2016 © Mine Site Technologies Pty Ltd 2016 Commercial in Confidence...

  • Page 4: Copyright And Disclaimer

    Information contained in this document has been developed by Mine Site Technologies Pty Ltd (MST). Every care has been taken by the staff of MST to ensure the content of this manual is relevant and up to date at the time of publication. Content is subject to change without notice.

  • Page 5: Table Of Contents

    MST Quick Start Guide Revision C – 19 December 2016 Contents Revision History ........................ii Copyright and Disclaimer ......................iv Copyright ..........................iv Warning ........................... iv Disclaimer ..........................iv Safety and Compliance ......................1 Warning: No tampering......................1 FCC Statement.........................
  • Page 6 MST Quick Start Guide Revision C – 19 December 2016 Logging onto the Web Browser Interface ................. 9 Configuration Screen ......................10 Device ..........................11 Statistics ..........................11 Tracking ..........................11 Network ..........................11 System ..........................12 Centralised Configuration Management ................

  • Page 7: Safety And Compliance

    MST Quick Start Guide Revision C – 19 December 2016 Safety and Compliance Warning: No tampering. No user replaceable parts. Only to be opened by an authorised service representative. Attempting to open the unit without the proper tools will damage the IP66 protective seal.

  • Page 8: Introduction

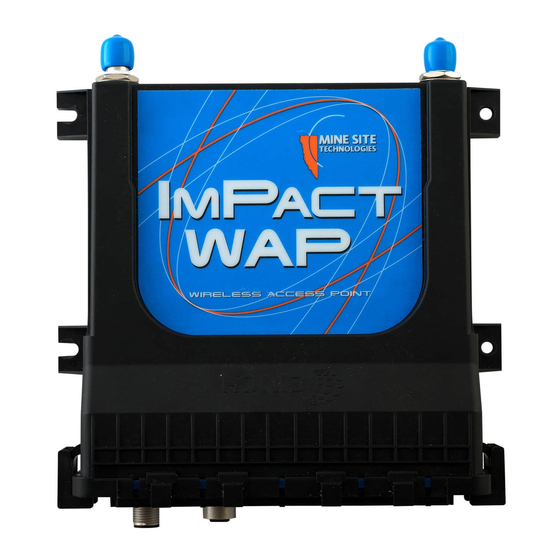

    Revision C – 19 December 2016 Introduction Mine Site Technologies' (MST) IMPACT WAP-N is an 802.11 b/g/n wireless access point. It is used in conjunction with the IMPACT Wireless Network Switch to provide a wireless network for underground mining environments. The WAP-N forms part of the IMPACT network infrastructure, over which voice, tracking, video, automation and process control applications can be used to enhance mining safety and productivity.

  • Page 9: Hardware

    MST Quick Start Guide Revision C – 19 December 2016 Hardware What's in the Box 1. WAP-N unit x1 2. M12 Ethernet connector x1 3. RP-TNC WHIP Antenna x2 4. Quick Start Guide (this document) © Mine Site Technologies Pty Ltd 2016...

  • Page 10: Wap-N At A Glance

    MST Quick Start Guide Revision C – 19 December 2016 WAP-N at a Glance 1. MAIN RP-TNC Connector 2. AUX RP-TNC Connector 3. Serial Number and MAC address 4. Console Port 5. Ethernet Port 6. Power LED: Solid green indicates the unit has power.

  • Page 11: Cabling Requirements

    Ethernet cable. The WAP-N is normally connected and powered via an M12-to-RJ45 Ethernet cable from the WAP-N's Ethernet port to an MST Network Switch (NS50), but can also be powered by a separate PoE power supply.

  • Page 12: M12 Ethernet Connection

    MST Quick Start Guide Revision C – 19 December 2016 M12 Ethernet Connection © Mine Site Technologies Pty Ltd 2016 Commercial in Confidence...

  • Page 13: M12 Console Connection

    MST Quick Start Guide Revision C – 19 December 2016 M12 Console Connection If PoE is not available, the device can be powered directly via the console connector as shown below. IMPORTANT:  All coaxial cable and antenna connections must be electrically insulated using self-amalgamating rubber tape.

  • Page 14: Software

    Device Discovery The MST Device Scanner can be used to discover and change the IP address of IMPACT devices from any PC connected to the same network switch (i.e. the tool will not work if there is a router between the PC and the device being scanned). Upon opening, the Device Scanner will automatically scan for devices.

  • Page 15: Logging Onto The Web Browser Interface

    MST Quick Start Guide Revision C – 19 December 2016  MAC Address - The MAC address of the device.  Interface - The network interface via which the Device Scanner is communicating with the device. ...

  • Page 16: Configuration Screen

    MST Quick Start Guide Revision C – 19 December 2016 To log in to the web browser interface: Launch your web browser and enter http://<WAP IP address> in the address field. Press the ENTER key. The login screen is displayed.

  • Page 17: Device

    MST Quick Start Guide Revision C – 19 December 2016  Settings – covers Network and System settings, which can all be changed after editing mode has been enabled. To enable editing press Configure button which appears in the middle of the screen.

  • Page 18: System

    MST Quick Start Guide Revision C – 19 December 2016  Tracking – AeroScout / MST Tracker Engine settings. System  Device For more information on any of these menus, see the WAP-N Wireless Access Point User Guide.

  • Page 19: Centralised Configuration Management

    MST Quick Start Guide Revision C – 19 December 2016 Centralised Configuration Management For large networks of underground devices, individual configuration via the web interface for each device is time-consuming and prone to human error. To manage large networks, centralised configuration management is strongly recommended.

  • Page 20: Antenna Configuration

    MST Quick Start Guide Revision C – 19 December 2016 Antenna Configuration The WAP-N can operate with a one antenna or two antennas. Two antennas may provide improved signal transmission and reception. One Antenna Connect the antenna to the MAIN antenna port on the back of the unit.

  • Page 21: Restoring Factory Default Settings

    MST Quick Start Guide Revision C – 19 December 2016 Restoring Factory Default Settings An operator can return the unit to factory defaults with the following steps:  Hold down the DEFAULT button on the front of the unit.

  • Page 22: Repairs And Maintenance

     Check the power LED is solid green. Display LEDs Testing RF Stand 50M away from the IMPACT WAP-N. transmit path for WAP-N Using a Mine Phone handset, verify the signal strength is within specification. (Refer to site-specific commissioning data).
  • Page 23 MST Quick Start Guide Revision C – 19 December 2016 Inspection Action  Stand 50M away from the IMPACT WAP-N with two AeroScout Testing RF receive tags. path for WAP  Open the web browser interface and select the Status > Tracking web page.
  • Page 24 A pioneering force within the mining industry, MST has over 600 deployments at mine sites worldwide. Customers across the globe trust MST solutions to help optimise output, minimise cost and reduce risk, resulting in a compelling ROI on technology investments.
