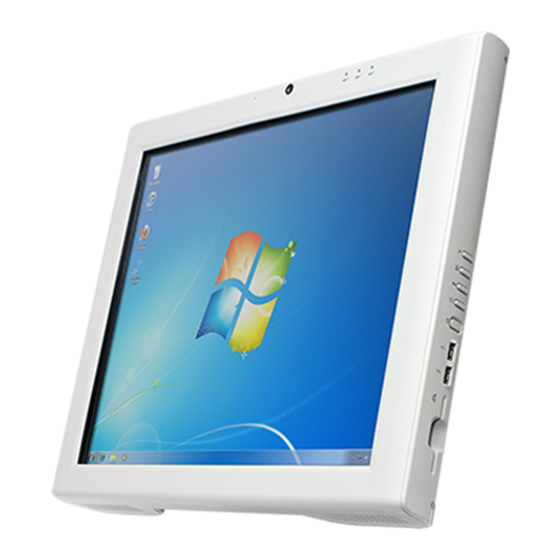

DT Research DT590BC Operation Manual

DT590BC/ DT590BU/ DT592BC/ DT592BU/ DT594BC/ DT594BU

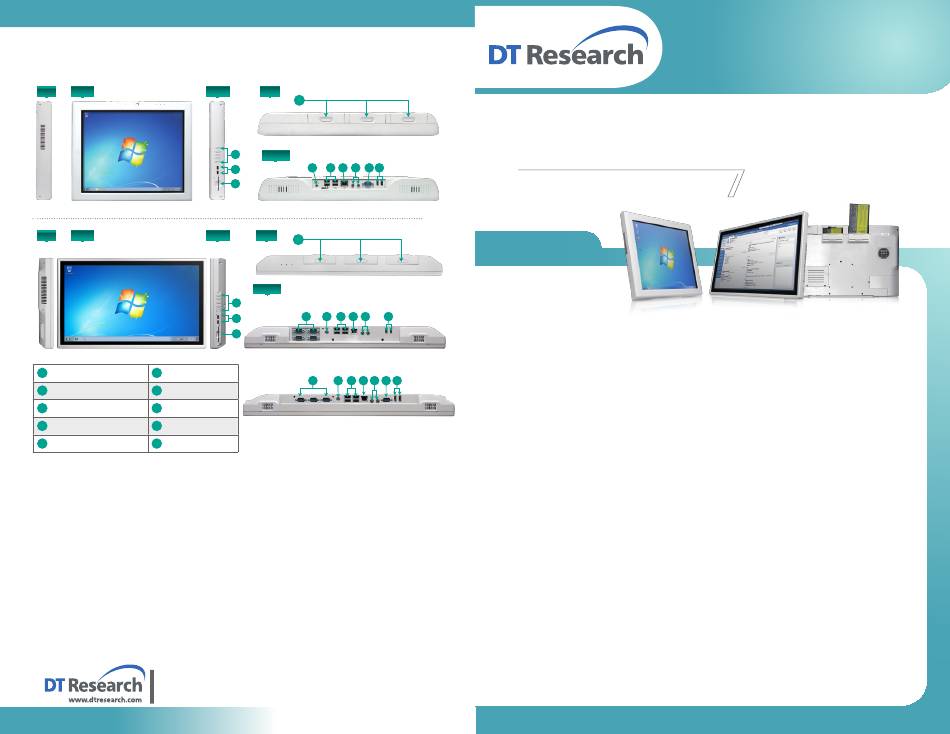

I/O Ports
The Medical Cart Computer has a comprehensive set of I/O ports. The following ports are located
along the lower rear edge of the unit.
Left Front
Left Front
A F
Side panel function buttons USB 2.0 ports
B G
USB 2.0 ports Ethernet port (RJ45)
C H
Smart card reader (optional) Audio jacks
D Battery packs (optional) I COM port
E J
DC-in HDMI (1.4a)
Cleaning the Screen
• A screen cleaning solution that is non-alcohol and non-abrasive can be used to clean the touch screen.
• We suggest cleaning with a micro-fiber cloth.
• Please spread the solution onto the cloth and then clean the touch screen.
Cleaning the Anti-microbial Enclosure
• Use a soft/non-abrasive cloth moistened with water to clean the enclosure.
• If using a cleaner, an alcohol-free and oxide-free cleaning liquid is recommended.
• To prevent scratching the anti-microbial coating, please wipe gently.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2016, DT Research, Inc. All Rights Reserved.
BOG030216DT59XENG
4 signage dtri com
ENGLISH
Right Top
D
A Bottom
DT590BC/ DT590BU:
E F G H I J
B
C
Right Top
D
Bottom
A
DT592BC/ DT592BU:
I E F G H J
B
C
DT594BC/ DT594BU:
I E F G H I
DT590BC/ DT590BU/ DT592BC/
DT592BU/ DT594BC/ DT594BU
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring DT Research's Medical Cart Computer. With a 19-inch, 22-inch or 24-inch
TFT display and powered by the Intel
offers optimal combinations of performance and power savings. With fully-integrated point-of-care
J
modules within an elegant, space-saving design, the Medical Cart Computer is the optimum solution
to enhance workflow and service.
Please take a few moments to review the contents of this document to ensure that the setup and
startup proceed smoothly. The Medical Cart Computer is ready for use, out of the box, in its default
configuration when powered by the power source provided. The following documentation offers
guidance on the hardware elements and features of the computer. Please refer to your device
provider for information pertaining to the software operating system or software applications.
Package Contents
• One DT590BC, DT590BU, DT592BC, DT592BU, DT594BC or DT594BU
• Three DR202 Li-ion batteries (optional)
• AC-DC power adapter with power cord
• Basic operation guide
• Desktop stand (optional)
Major Options
The Medical Cart Computer has a number of optional modules. These include:
• Smart card reader
Medical Cart Computer
Celeron or Core™ i7 processor, the Medical Cart Computer
® ®
