Getting Started with the Contivity Extranet Switch 2500

Understanding the LEDs

The Power LED is green when the power is on; if it is flashing, there is a
hardware failure and you should contact Nortel Networks.
The Hard Disk LED is green, and when it flashes the Switch is either reading or
writing to the disk.
The LAN Port LED is green, and when it flashes the Switch is either transmitting
or receiving data.
Start the Switch and confirm that the interfaces are cabled properly by examining
the two LEDs located adjacent to the RJ-45 connector of the LAN port, or the
LEDs located on the card panel.
Figure 2-4 shows the private LAN Port LEDs. Look at the condition of the LEDs,
then examine the corresponding LED table to better understand the indications.
There are no LEDs for the Dual V.25 WAN interface.
Table 2-5.
LED
Orange
Green (100)
Figure 2-5 shows the Single V.35 LEDs. Look at the condition of the LEDs, then
examine the corresponding LED table to better understand the indications.
2-12
Orange
Green

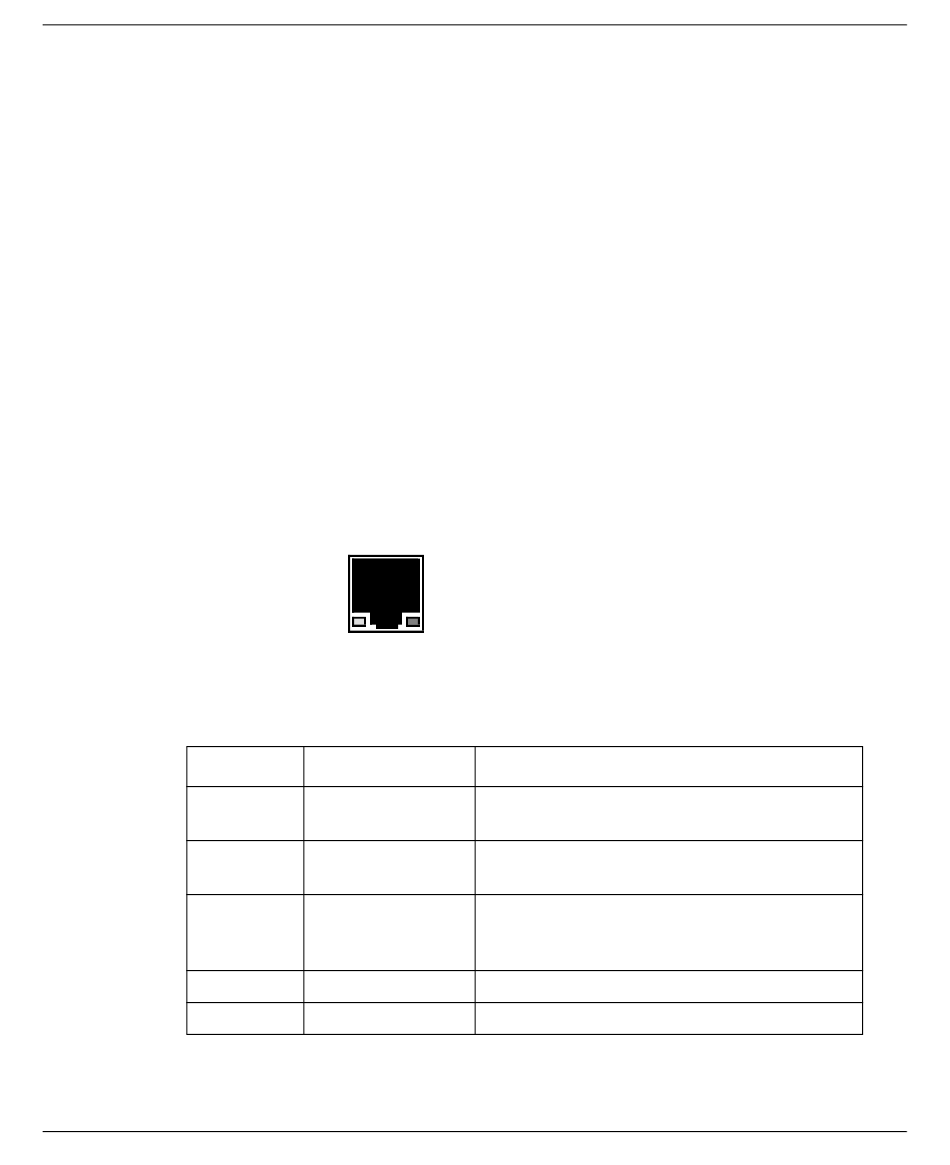

Figure 2-4. LAN Port LEDs
LAN Port LED Indicators
Indicator
On
Off
Flashing
On
Off
Description
The cable connections between the LAN port
and the hub are good.
The cable connections between the LAN port
and the hub are faulty.
The LAN port is sending or receiving network
data. The frequency of the flashes increases
with increased traffic.
The LAN port is operating at 100 Mb/s.
The LAN port is operating at 10 Mb/s.
