Mounting Instructions and Manual

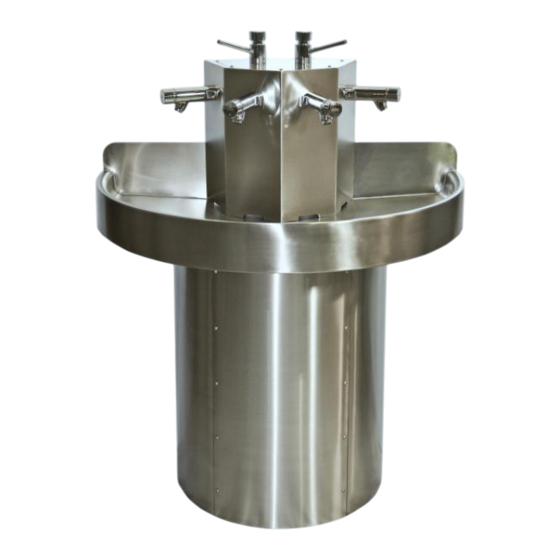

SANX400
EA-Nr.:
– SANX400
7612979002393
EA-Nr.:
– SANX405
7612979002409
1. Important Notes
.
Before installation, the instructions have to be read and understood.
.
Installation, commissioning and maintenance are to be performed only by a
qualified technician according to the instructions provided and in accordance with
legal requirements and acknowledged rules of technology.
B1143 – SANX400/405/03.03.2011
SANX405
(1000x561x1205mm)
(1000x561x1304mm) with SD
2. Scope of supply
Qty
Part
1
SANX400
4 Person Circular Washtrough Manual Taps
1
SANX405
4 Person Circular Washtrough Manual Taps with Soap Dispensers
1
B4198
6
AQUA205W
1
B1353
3
SD80
Soap Dispensers (For SANX605 Variant)
3. Dimensions
Designation
1 ½" S Tubular Trap
Aqualine S Taps
M5 Allen Key Security Pin
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Franke SANX400
Summary of Contents for Franke SANX400
- Page 1 Before installation, the instructions have to be read and understood. Installation, commissioning and maintenance are to be performed only by a qualified technician according to the instructions provided and in accordance with legal requirements and acknowledged rules of technology. B1143 – SANX400/405/03.03.2011...
- Page 2 Perfume: < 1% (EDTA, NTA) <- fit connector as its base to enable Herbal Oils: < 1% Optimal the installer to connect their pipe Animal Fat: < 1% Viscosity: 1.000 ± 1000mPa.s work to. For repair/maintenance please refer to SD80 service manual (Included) B1143– SANX400/405/03.03.2011...
- Page 3 With recommended flow rate of 36 l/min E: ws.uk@franke.com For pressures in excess of 7 bar g. a flow control or pressure reducing valve should be fitted (Not supplied) For further repair/maintenance please refer to the taps service manual (Included) B1143 – SANX400/405/03.03.2011...
