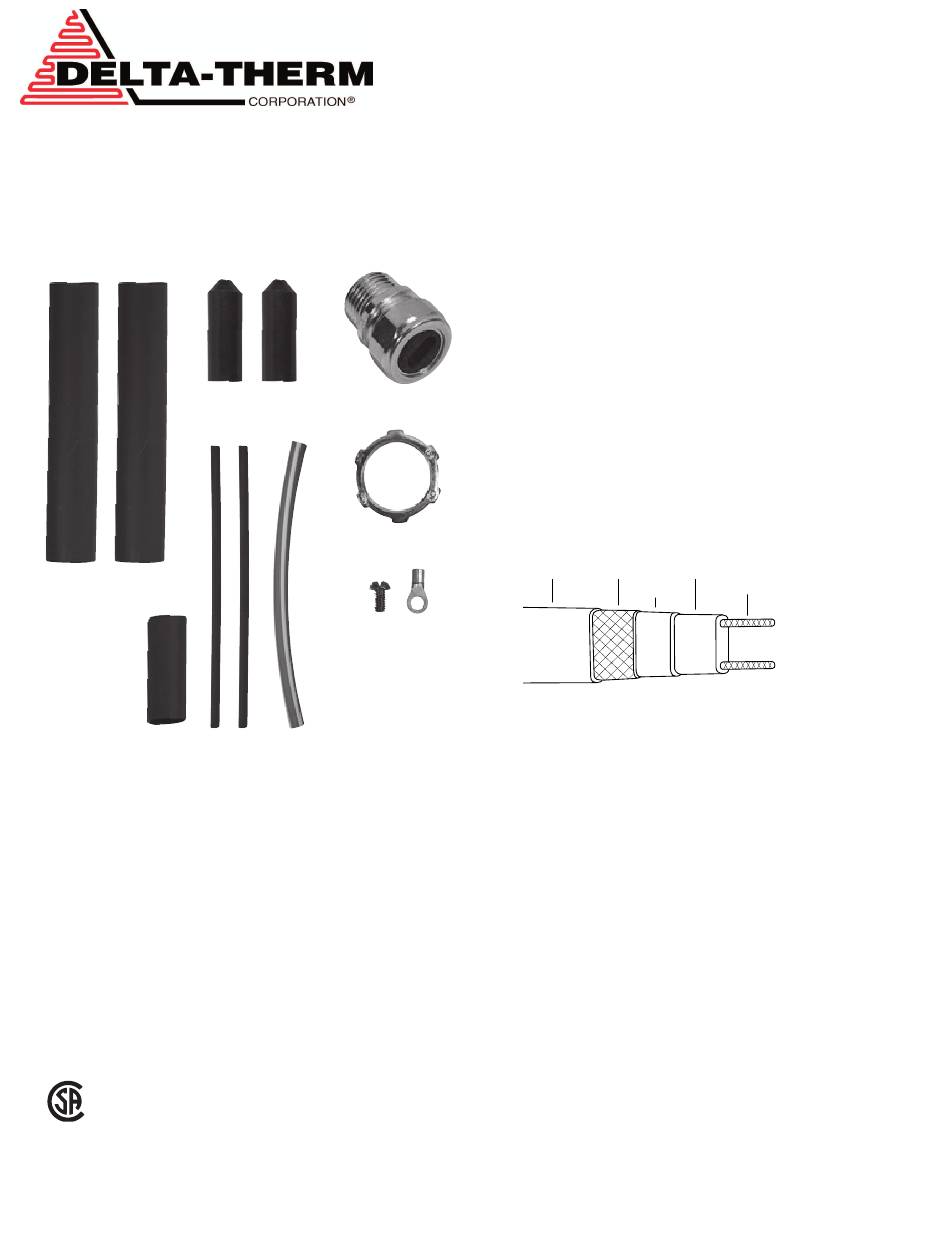

Delta-Therm PCK-RGP Quick Start Manual

A
F

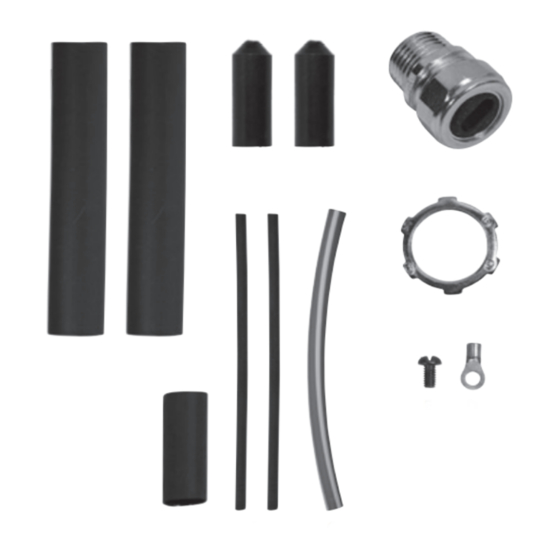

A. Heat Shrink Sleeve .75" x 6" (2 x 15cm) (2)
B. Shrink Sleeve .125" x 5.5" (.3 x 14cm) (2)
C. Yellow/Green Shrink Sleeve .25" x 5.5" (1 x 14cm)
D. Ring Connector
E. Ground Screw
F. Heat Shrink Sleeve .5" x 1.5" (1 x 11cm)
G. Heat Shrink Cap .5" x 1.5" (1 x 11cm) (2)
H. Connector Assembly .5"*
I. .5" (1cm) Sealing Locknut
Additional compression fittings with 1/2" sealing locknut are available.
Delta-Therm Corporation 6711 Sands Road Ste A, Crystal Lake, IL 60014 www.delta-therm.com
CO Series Power Connection Kit for Roof and Gutter
G H
I
E
B C
CA_SR_PCK-RGP_2002_DSII
DESCRIPTION
PCK-RGP allows you to make electrical connections for
all CO Series CBT self-regulating heating cables used
in roof and gutter applications. The kit contains the
necessary materials (except weather-tight junction box)
for one power connection and two end terminations.
SR CABLE CUTAWAY
Overjacket
D
Detail 1.
CONNECTING TO POWER
1. Attach connector assembly to the Junction Box through
a .5" (1cm) NPT fitting.
2. Prepare cable per directions.
3. Insert cable through sealing fitting and tighten compo-
nents into place.
4. Connect heating cable leads to power wire leads.
Ground braid cold lead to ground wire or to grounding
screw with ring terminal.
5. Install water tight cover.
PCK-RGP
Braid Conductive Core
Innerjacket Bus Wires (16AWG)
800-526-7887
