Delta-Therm PCK-RG Quick Start Manual

B
F

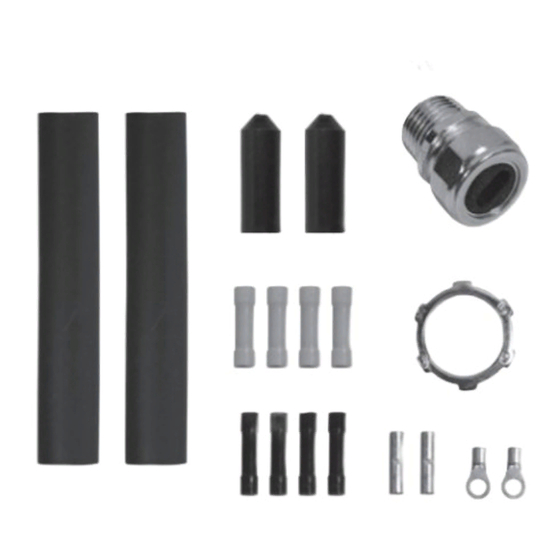

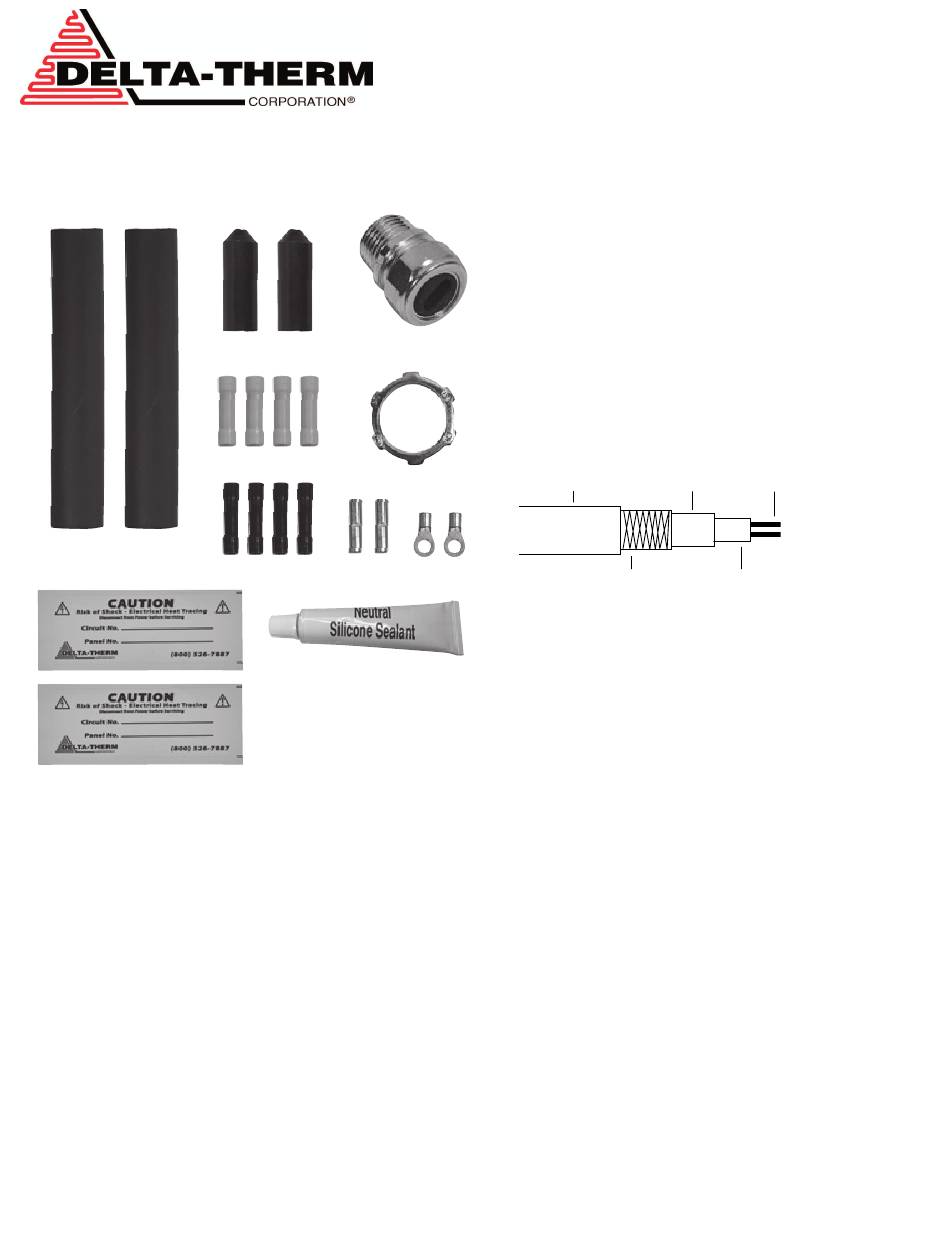

A. Silicone Sealant*
B. Heat Shrink Sleeve .75" x 6" (1 x 15cm) (2)
C. Heat Shrink Cap .5" x 1.5" (1 x 3cm) (2)
D. .50" (2cm) Sealing Locknut
E. Connector Assembly .5"
F. Caution Labels (2)
G. #16-14 Insulated Butt Connectors (4)
H. #12-10 Insulated Butt Connectors (4)
I. Ring Connectors (2)
J. #12-10 Non-Insulated Butt Splices (2)
Additional compression fittings with 1/2" sealing locknut are available.
*California Prop 65 compliant.
Delta-Therm Corporation 6711 Sands Road Ste A, Crystal Lake, IL 60014 www.delta-therm.com
IN Series Power Connection Kit for Roof and Gutter
E
C
H
D
G J I
A
CA_SR_PCK-RG_1905_DS

DESCRIPTION

PCK-RG allows you to make electrical connections for all
IN Series CBT self-regulating heating cables used in roof
and gutter applications. The kit contains the necessary
materials (except weather-tight junction box) for one
power connection, one splice connection, and two end
terminations.
SR CABLE CUTAWAY
Black U.V. Over Jacket Gray Primary Insulation Bus Wires
Tinned Copper Braid Black Conductive Core
Detail 1.

connecting to power

1. Attach connector assembly to the Junction Box
through a .5" (1cm) NPT fitting. Loosen connector
assembly and insert 10" (25cm) of cable through into
junction box. Tighten connector assembly.
2. Strip end of cable (in junction box) as outlined on
detail
1. Slide one piece of shrink tube over cable. Connect
buss wire to the power input using the barrel
connectors.
3. Cover the entire spliced area (from barrel connectors
over black conductive core to gray over jacket) with
sili-cone sealant and let cure overnight. Center shrink
tube over barrel connectors and apply heat to shrink.
4. Twist braid into a conductor and attach ring
connector.
5. Connect the ring connector to the connection box
using the grounding screw (not supplied).
6. Push the splice and input power wire into the
connection box, then attach the gasket and cover.
7. Attach caution labels to the junction box and circuit
breaker panel and circuit breaker panel.
