Seav WiWeather Series Quick Start Manual

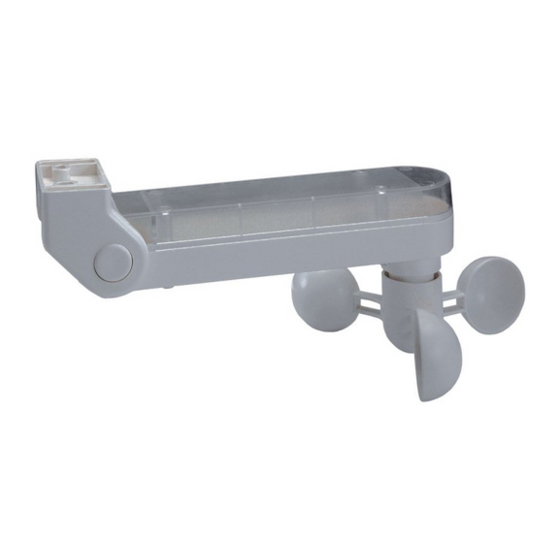

WiWeather Wireless Sensor
Wind, Sun and Rain Wireless Sensor to be coupled with
STATEUROP electronic control units for the automation of
rolling window shutters and sun blinds.
- Mod. WiWeather 433 :
- Mod. WiWeather 868 :
T D
ECHNICAL ATA
- Power supply:
- Working temperature:
- Working frequency:
- Sensitivity Anemometer:
- Sun Sensor Sensitivity:
- Packaging dimensions:
- Container:
C CN1 T
ONNECTIONS OF THE
1: 230V~ Line input (Phase).
2: 230V~ Line input (Neutral).
I F C
NITIAL UNCTIONING ONDITION
The device can only work in conjunction with one or more
STATEUROP electronic control units prearranged for radio re-
ception of information relating to the state of the sensors. For
the functioning, it will be necessary to carry out the program-
ming operation of the Wireless Sensor on the control unit to
which it will be coupled (see par. "CODE Sending of Radio
Identifier" ).
In the default factory setting, each Wireless Sensor example
produced has a different identifier.
W S F
IND ENSOR UNCTIONING
The device will send to the control unit to which it has been
coupled, a closing control every time the set Wind threshold is
exceeded.
S S F
UN ENSOR UNCTIONING
The device will send to the control unit to which it has been
coupled, a downward control after 10 minutes of brightness
higher to the threshold selected by means of the VR1 trimmer
and displayed through the switching on of the SUN MONITOR
LED; it will send an upward control after 10 minutes of bright-
ness lower than the selected threshold.
Regulation of sensitivity to the Sun ( 5 ÷ 40 Klux )
The device allows to regulate the intervention threshold due to
brightness, by means of the VR1 trimmer. The switching on of
the SUN MONITOR LED on the device indicates that the Sun
intensity exceeds the selected intervention threshold, in this
way we will have a reference to the current light conditions to
establish the desired one.
R S F
AIN ENSOR UNCTIONING
The device will send to the control unit to which it has been
coupled, an upward control as soon as the sensitive part of the
rain sensor is wet by water, signalled through the switching on
of the RAIN MONITOR LED.
433,92 MHz
868,3 MHz
230V~ 50/60Hz 3W max.
÷
-10
see model
5 ÷ 40 Km/h
5 ÷ 40 Klux
240x185x110 mm.
PC UL94V-0 ( IP54 )
ERMINAL BOARD
GB
P K
ROGRAMMING
SEL Key: selects the type of function to memorise, the choice
is indicated by the flashing of the LED. By repeatedly pressing
the key, it is possible to position oneself on the desired func-
tion. The selection remains active for 15 seconds, displayed by
the flashing LED, after which the control unit returns to the ori-
ginal status.
55°C
SET Key: carries out the programming of the function chosen
with the SEL key.
Indicator LED
LED on: option memorised.
LED off: option not memorised.
LED flashing: option selected.
---------------------- MAIN MENU -----------------
LED Reference
1) CODE
2) SPEED
3) WIND
4) SUN
5) RAIN
6) TEST
1) CODE (Sending of Radio Identifier)
The coupling of the Wireless Sensor to a control unit must be
carried out as follows: activate the Wireless Sensor program-
ming procedure on the control unit (see control unit technical
manual), with the SEL key position yourself on the flashing of
the CODE LED and press the SET key for about 1-2 seconds:
at the same time, the Sensor will send an identifying code sig-
nalled by the flickering of the CODE MONITOR LED.
Check that in the coupled control unit there is confirmation of
the occurred Sensor programming (see control unit technical
manual). In this way, the Wireless Sensor is coupled to the
control unit and it will send to the same controls dependant
upon the meteorological conditions.
Repeat the operation in case the same Sensor is to be pro-
grammed on other control units.
2)
SPEED (Programming of Wind Safety threshold)
Display of the programmed Wind threshold
The display of the wind Safety threshold selection is carried out
as follows: with the SEL key position yourself on SPEED LED,
the LED will start to double flash for the number of times equal
to the wind Safety threshold in the memory (to every double
flash of the SPEED LED corresponds an increase of 5 Km/h),
(example: 5 flashes of SPEED LED = 25 Km/h).
Selection of the wind Safety threshold from 5 to 40 Km/h
The sensor is supplied with the wind Safety intervention
threshold equal to 25 Km/h (SPEED OFF LED).
The programming of the wind Safety threshold selection is car-
ried out as follows: with the SEL key position yourself on
SPEED LED and press the SET key to start the programming
procedure: at the same time, the SPEED LED will start to
double flash; (every double flash of the SPEED LED corres-
ponds to an increase of 5 Km/h), once the desired threshold
has been reached, press the SET key; the selected value will
be memorised at the same time and the SPEED LED will re-
main on (example: 5 double flashes of SPEED LED = 25
Km/h).
It is possible to repeat the operation in case of an incorrect pro-
gramming.
1
I LED
EYS AND NDICATOR
LED Off LED On
Send RFID = OFF
Wind Safety 25 Km/h
Wind Safety = OFF
Sun Sensor = OFF
Rain Sensor = OFF
Test Sensors = OFF
Send RFID = ON
Pgm. Wind Safety
Wind Safety = ON
Sun Sensor = ON
Rain Sensor = ON
Test Sensors = ON
Rev. 1.0 20/02/09
