Summary of Contents for Ashdown Stuart Zender FUNK FACE

  • Page 2 USER GUIDE ASHDOWN FUNK FACE Input Sensitivity The SZ Funk Face pedal is a pure analogue pedal; it consists of a detector circuit that changes the signal from the bass to a control voltage that is then sent to twin voltage controlled filters. This effectively means that the filters are sensitive to your playing style and will respond accordingly with more effect the harder you play.
  • Page 3 USER GUIDE ASHDOWN FUNK FACE POWERING UP When powering up from cold connect the Power supply and allow a few minutes for the pedal to warm up , operate the footswitches several times to stabilise the internal circuits Before connecting to the amplifier.

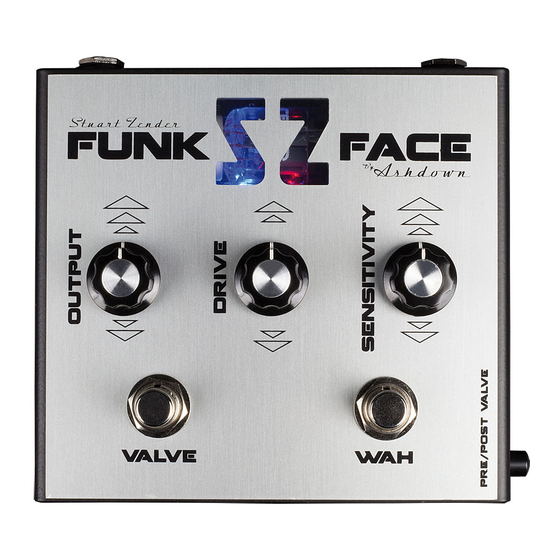

  • Page 4 USER GUIDE ASHDOWN FUNK FACE Top Panel:...
  • Page 5 USER GUIDE ASHDOWN FUNK FACE Front Panel: VALVE - Latching foot-switch - Engages Valve Drive. WAH - Latching foot-switch - Engages Twin Dynamic Filters. PRE/POST VALVE - Latching Push Button - Swaps the signal path of the WAH pre or post valve for more tonal control.
  • Page 6 USER GUIDE ASHDOWN FUNK FACE Rear Panel: Jack Instrument Input Jack Output 18v 300mA Centre Pin Negative Power Supply input. Rear Panel:...
