Operating Instructions-7B80
TRIGGERING
@
LEVEL Control-Selects a point on the trigger signal where triggering occurs.
@)
SLOPE Switch-Permits sweep t o be triggered on negative or positiveqoing portions of the trigger signal.
@
READY Indicator-Illuminates when sweep circuit is armed (SINGLE SWEEP Mode).
@
TRIG'D Indicator-Illuminates when the display is triggered.
@
MODE Pushbunons-Selects the operating mode of the triggering circuit.
@
COUPLING PushbunonrSelects the method of coupling the trigger signal t o triggering circuit.
@
SOURCE Pushbunons-Selects source of the trigger signal.
SWEEP
@
POSITION Control-Provides horizontal positioning.
@
FINE Control-Provides precise horizontal positioning.
@
MAG Pushbunon-Selects magnified X I 0 or unmagnified sweep.
@
WOLD OFF Control-Permits hold o f f period t o be varied t o improve trigger stability on repetitive complex waveforms.
@
TlMElDlV Selector-Selects the sweep rate of the weep generator.
13
VARIABLE Control and CAL Switch--Selects calibrated or uncalibrated sweep rates. Uncalibrated sweep rates can
O
ba continuously reduced t o at least the sweep rate of the next dower position.
@
SWP C A L Adjustment-Compensates for basic timing changes due t o the differences i n sensitivity of mainframes
EXTERNAL TRIGGER INPUT
@
EXT TRlG ATTENUATOR-Selects attenuation fector for external trigger signals.
@
EXT TRlG I N Connector-Connector (BNC type) provides input for external trigger signals.

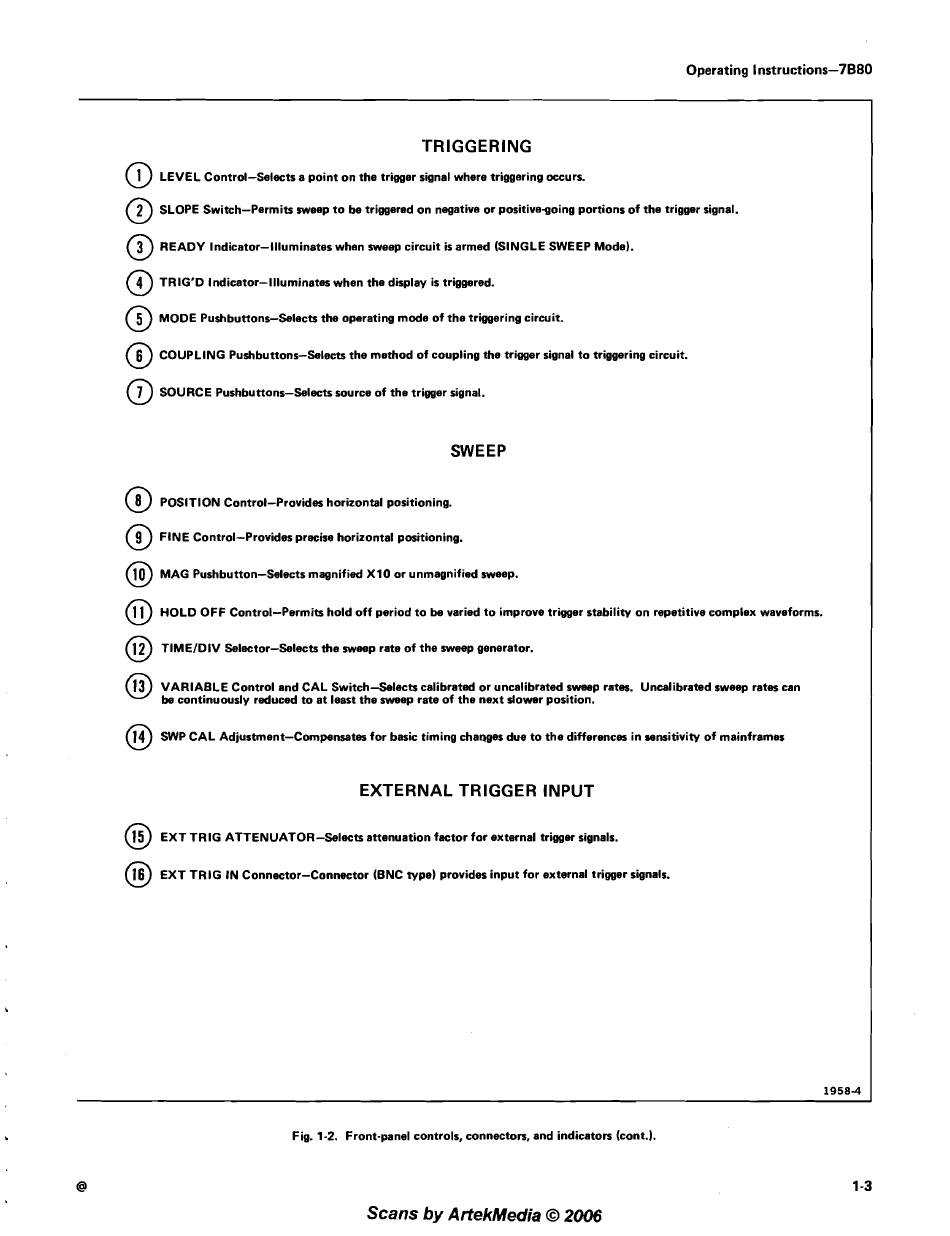

Fig. 1-2. Front-panel controls, connectors, and indicators (cont.).
