Ampfibian MINI-PLUS Quick Start Manual

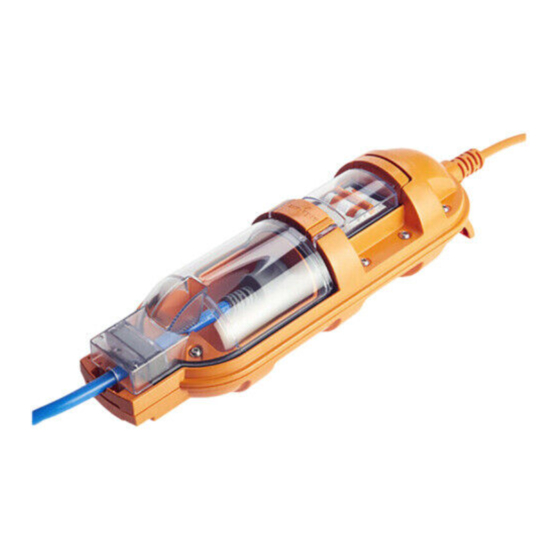

AMPFIBIAN MAX Heavy-Duty Weatherproof 15A to 10A Power Adaptor with RCD and MCB
Mfgr.# 02897

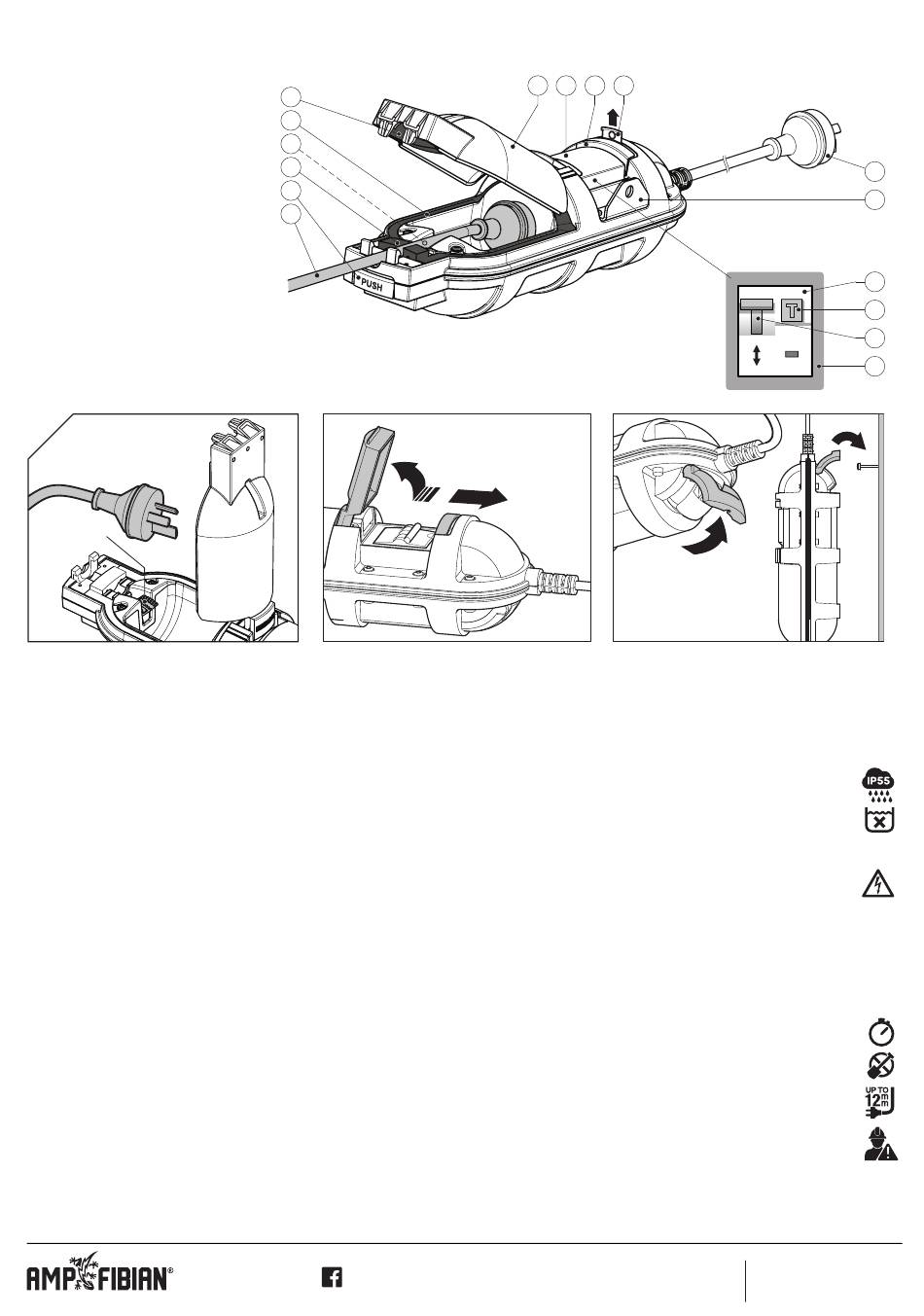

No. DESCRIPTION
1 CORD SEAL (LID)
2 PLUG LID GASKET
3 RETAINING CLEAT
4 CORD SEAL (BODY)
5 PLUG LID LATCH
6 LEAD (NOT SUPPLIED)
7 PLUG LID
8 RCD/MCB LID
9 RCD/MCB LID LATCH
10 LOCKOUT TAG
11 PLUG & FLY-LEAD
12 SECURITY BRACKET
13 RCD/MCB
14 TEST BUTTON
15 RCD/MCB SWITCH
16 RCD/MCB LID GASKET
Ensure cable is
positioned in
middle of cleat
CLEAT
USING THE AMPFIBIAN MAX
1. With nothing plugged in, connect MAX
plug (11) directly into power supply (wall)
socket and switch power supply ON.
2. Switch MAX ON (15). If unit trips, unplug
it and contact us. DO NOT USE or continue
to next step.
3. Press test button labelled "T" (14). If
switch (15) trips OFF continue to step 4.
If switch (15) DOES NOT trip when test
button pressed, unplug the MAX and
contact place of purchase. DO NOT use
MAX or continue to step 4.
4. Connect extension cord (6) to the MAX
socket ensuring that the lead is captured
by the plug lid (7) and cleat (3). Avoid any
strain on the lead.
5. Connect device directly or via extension
cord/lead (6).
6. Switch MAX to ON position (15).
Both lids (7 & 8) must be latched closed
before use. Inspect seals for damage
and/or obstruction. Do not use if lids,
seals or latches are damaged or inoper-
able.
IF AMPFIBIAN MAX TRIPS IN SERVICE
First rule out that the MAX is at fault by
performing the above test procedure. The
MAX will trip due to overload or an earth
leakage fault. If you are unsure of the
cause, or you believe there is an earth
1
2
3
4
5
6
RCD = Residual Current Device
MCB = Miniature Circuit Breaker
leakage fault, turn off all power and
contact a licensed electrician. If you
believe there is an overload, switch off or
unplug some of the appliances and reset
the MAX.
Electricity can be dangerous! RCDs
(Residual Current Devices) are not a
substitute for basic electrical safety
precautions. RCDs are additional
protection and will not prevent shock, but
will minimise the effect. Do not use this
device if it fails to operate correctly in
accordance with these instructions.
The Ampfibian MAX is rated 240 Volts with
a maximum current rating of 10 Amperes
(A).
Do not try to open or repair the MAX
yourself. No user-serviceable parts are
inside. Test the MAX before each use as
described in step 3. This device will only
protect against faults to earth through the
body, but not against active to neutral
faults.
This device must be connected DIRECTLY
to an outlet socket. It must not be
connected via cord extension sets.
Wet seals will freeze and will not recover
their shape until thawed. Do not open
frozen unit until thawed. Opening frozen
unit may result in damage to seals.
LIKE US ON FACEBOOK!
7 8 9 10
RCD/MCB may vary from
illustration. All RCD/MCBs have an up/down
toggle switch where UP is ON; and a test
push-button marked "T".
Push lid & latch in opposite
directions to open switch lid
(use coin if hard). Raised
lockout tag (10) stops
lid opening.
Do not expose to petrol, oil, solvents,
pool chemicals, etc.!
Do not use in hazardous locations!
Do not use if damaged!
Do not disassemble!
Ingress protected to IP55.
Do not submerge in water!
Remove condensation with a soft
absorbent cloth.
Turn off power supply before
handling connections in wet
conditions!
Store in a dry place out of
direct sunlight.
Ensure there is no gap visible through
cord seals when closed! If required,
leave lid open until cord seals have
fully recovered.
This product is not intended for
permanent installation.
Do not bury!
Suitable for ordinary and heavy-duty
extension leads from 7mm to 12mm
diameter.
H-Class rated device for trade and
commercial use.
To be used with 10A (2400W)
maximum load.
ampfibian.com.au
ampfibian.co.nz
ON
OFF
Integrated flip-out
hook for hanging
Freecall Australia
1800 342-426
11
12
13
14
15
16
