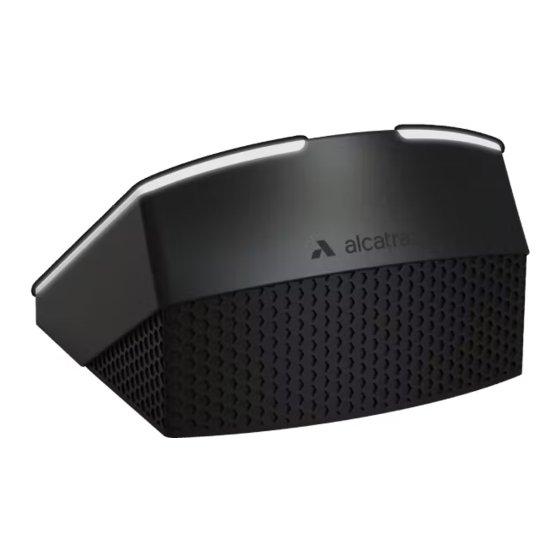

Summary of Contents for alcatraz ROCK-1
- Page 1 The Rock Install Guide...
- Page 2 Wiegand Maximum Cable Length: 500 ft - 22 AWG (152 m), 300 ft - 24 AWG (91 m) Parts Included 5ft (1.5m) from floor 1x Alcatraz Rock 1x Wall Mount 1x Wiring Harness Badge reader mounted at 1x Wall release tool...
- Page 3 Attach wall plate to 2-gang box with provided screws, paying attention to point the arrow towards door Installed screw heads must be flush to the wall plate. Protruding screw heads will cause interference when installing the Rock onto the wall plate Alcatraz Rock Shielded PoE+ Ethernet...
- Page 4 Step 4 – Step 5 – Plug in and retain cables Attach Alcatraz Rock to wall plate Press and snap Rock onto installed wall plate Pre-loop cable ties to post To complete the Installation and onboarding please refer to the...
- Page 5 CAUTION: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment. CE Marking Alcatraz AI hereby declares that these facial authentication devices are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. UL Marking Security, facial authentication and access control features and any other features related to that of the product have not been evaluated.
