HTR Owner's Manual
Extender over HDBaseT with 3D, 4K Support
PureLink
535 East Crescent Ave
Ramsey, NJ 07446
Tel: 201.488.3232
Fax: 201.621.6118
Distribution:
PureLink GmbH
HDMI, RS-232, IR, ARC & Ethernet

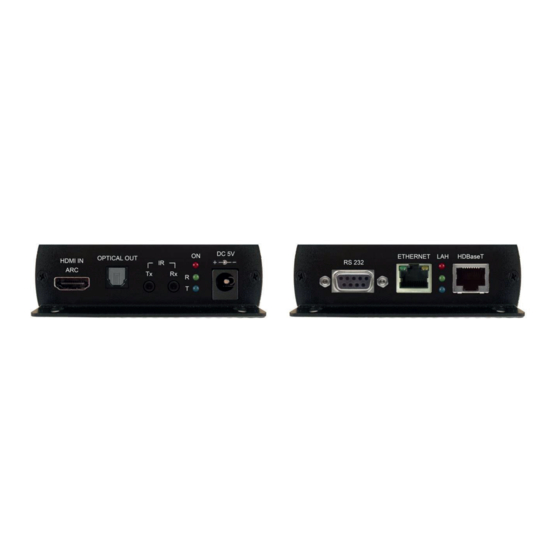

HTR Tx
TM
HTR Rx
Website :
www.purelinkav.com
E-mail :
info@purelinkav.com
For Technical Support, contact us at
:
support@purelinkav.com
Available from B2B Online Portal
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PureLink HTR Tx
Summary of Contents for PureLink HTR Tx
- Page 1 HTR Owner’s Manual HDMI, RS-232, IR, ARC & Ethernet Extender over HDBaseT with 3D, 4K Support HTR Tx HTR Rx PureLink Website : www.purelinkav.com 535 East Crescent Ave E-mail : info@purelinkav.com Ramsey, NJ 07446 Tel: 201.488.3232 For Technical Support, contact us at Fax: 201.621.6118...
-
Page 2: Package Contents
1 x User Manual Description The PureLink HTR is a transmitter and receiver set for long distance extension of HDMI video and embedded audio with bi-directional control signals ( RS-232 and IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which allows full 3D support with up to 330ft (100m) at 4K2K (UHD) resolution. - Page 3 ARC (Audio Return Channel) Support to send audio data “upsteam” to an A/V receiver or surround audio controller. Product application note Figure 1 – Schematic Connection Diagram of HTR Tx/Rx Distribution: PureLink GmbH Available from B2B Online Portal...
- Page 4 PureLink by Dtrovision Application note for ARC feature Figure 2 – Schematic Connection Diagram of HTR Tx/Rx’s ARC Feature Product Specification Transmitter Model HTR Tx HDMI, 1 port IR, 1 port Input type RS232, 1 port (bi-direction) Ethernet, 1 port (bi-direction)
- Page 5 PureLink by Dtrovision 1920x1200 @ 60Hz or Max. Distance Ultra HD (4K) @30Hz: 330ft (100m) DC Power Jack HDMI 19 Pin Female (Type A) RJ-45 Connector Type Serial Toslink Conformations HDMI version 1.4 With HDCP Power Rating DC 5V , 2A Dimension (WxDxH) Tx: 3.5’’...
-
Page 6: Operation And Reliability Specification
PureLink by Dtrovision Dimension (WxDxH) 3.5’’ x 4.7’’ x 1.2’’ (88 x 120 x 30 mm) Weight 0.62 lbs (0.28 kg) *Please use CAT6a/CAT7 cable for maximum distance transmission. * Travel Range Specification Cable Type Range Pixel clock rate Video Data Rate... -
Page 7: Installation And Connection Instructions
PureLink by Dtrovision Installation and Connection Instructions 1. Turn off both the video source and the display before connecting any cables. 2. Connect CATx cable between the HTR transmitter and the HTR receiver. 3. Connect HDMI cable between the source and the HTR transmitter AND the HTR receiver and the display. -
Page 8: Transmission Distance
PureLink by Dtrovision CATx cable Link cable recommend use high quality CAT5, CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable. Transmission Distance The maximum transmission distance up to 100meters, use lower resolution won’t extend longer distance If connection through the wall socket, the cable length must less 5 meters between... -
Page 9: Connection Ports
PureLink by Dtrovision HTR Transmitter Specification Transmitter Module Dimensions (W x D x H): 3.5’’ x 4.7’’ x 1.2’’ (88 x 120 x 30 mm) Transmitter Module Weight : 0.57 lbs (0.26 kg) Connection Ports: HDMI IN: HDMI input Green LED: Power On/Off Indication... -
Page 10: Led Indication
PureLink by Dtrovision Connection Ports: HDMI OUT: HDMI output Green LED: Power On/Off Indication Blue LED: IR receive Red LED: IR transmit IR Tx : IR output IR Rx : IR input RS232 : Bi-directional serial communication port DC 5V :Power supply unit Input... -
Page 11: Low Power Mode
PureLink by Dtrovision GREEN HDBaseT Linking On: HDBaseT linking BLUE Reserve No Function HDMI On: with HDCP / Flash: Without HDCP / Dark: HDMI Unlink 10/100 Ethernet Port: Color LED Function HTR Tx HTR Rx GREEN Ethernet linking On: Linking /Flash: data transmission... -
Page 12: Technical Specification
PureLink by Dtrovision Technical Specification Data transfer rate: 10.2 Gbps Supporting Resolutions: Up to 1080p / 60Hz / 48 bit Up to Ultra HD (4K) / 30Hz Up to 1920x1200 / 60Hz I/O Signal Standard: HDMI 1.4 Max Distance: Max 330ft (100m) at 4K2K@30Hz /... -
Page 13: Customer Service
PureLink or its authorized resellers. If the product does not operate as warranted during the applicable warranty period, PureLink shall, at its option and expense, execute one of the following as necessary: 1. Repair the defective product or part 2. -
Page 14: Fcc/Ce Statement
PureLink by Dtrovision FCC/CE Statement This device complies with part 15 of FCC Rules and EN 55022/55024/61000-3 for CE certification. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must not accept any interference received, including interference that may cause undesired operation.
