Luxi Presenter™ Quick Start Guide
LU-TPR-150CR
Thank you for purchasing the Luxi Electronics
product.
The TPR-150CR has 2 PCBs. The front PCB includes the switcher and scaler; please refer to the "Video signal path" and "Audio signal
path" sections in the right column of the specs on page 4 for details. The rear PCB includes the daisy chain circuits. Think of the daisy
chain as the flow of a river; each transmitter (Tx) connects to a source device and loads the signal to the river flow; each receiver
(Rx) unloads the signal from the river flow and sends it to the display it is connected to. The front panel and the RS-232 controls
determine which source signal is routed to which display.

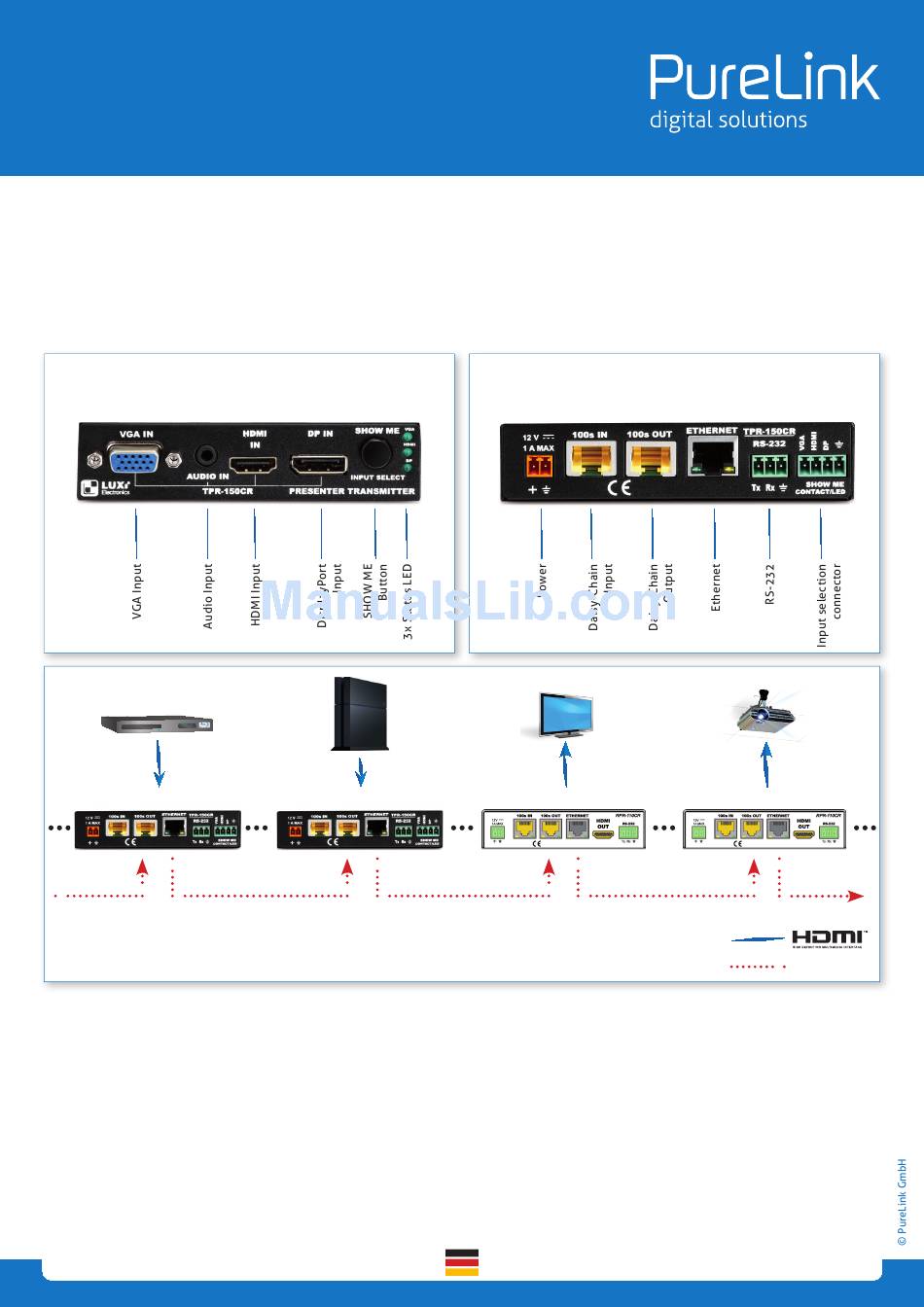

Transmitter - front view
System diagram
TX
Power options:
This product can draw power from other Presenter products in
the chain or from an optional external power supply.
K n o w - H o w . Q u a l i t y . D e s i g n .
PureLink GmbH | Von-Liebig-Straße 10 | 48432 Rheine | Germany | Tel.: 0049 (0)5971-800 299-0 | E-mail: info@purelink.de | Internet: www.purelink.de
TPR-150CR Presenter™ transmitter. Please read this guide carefully before using the
®
Transmitter - rear view
TX
Important Info:
Minimum
cables: Cat.6, UTP, 550MHz, 23/24 AWG,
solid conductors, min. 2m
RX
specifications for Cat.X
I n n o v a t i o n G e r m a n E n t e r p r i s e s .
RX
Cat.6
