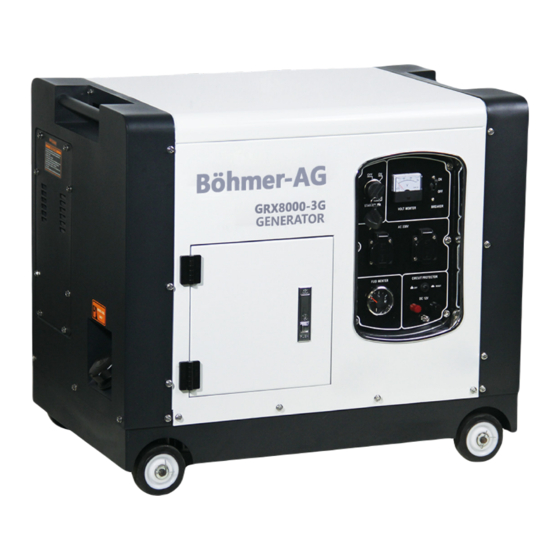

GRX8000-3G
Gasolin e Ge ne rator
GRX8000-3G
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE
AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may
vary in appearance, assembly, inclusions, specifications, description and packaging.
V 1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bohmer-AG GRX8000-3G
Summary of Contents for Bohmer-AG GRX8000-3G
- Page 1 GRX8000-3G Gasolin e Ge ne rator GRX8000-3G READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
GRX8000-3G Contents SAFETY COMPONENT IDENTIFICATION CONTROLS 1) Engine Switch 2) Recoil Starter 3) Fuel Valve 4) Choke 5) Circuit Breaker 6) Ground Terminal 7) Oil Alert System GENERATOR USE 1) Connections to a Building's Electrical System 2) Ground System 3) AC Applications... - Page 3 GRX8000-3G General Safety Information Caution: In order to prevent accident. Please add the manostat when using the household appliance or precision instruments Congratulations on purchasing your new Bohmer generator. We want to help you get the best results from your new generator and to operate it safely.
-
Page 4: Safety
GRX8000-3G Safety The generators are designed to give safe and dependable service if operated according to instructions. Read and understand this owner's manual before operating your generator. You can help prevent accidents by being familiar with your generator's controls, and by observing safe operating procedures. -
Page 5: Component Identification
GRX8000-3G Fire and Burn Hazards The exhaust system gets hot enough to ignite some materials. Keep the generator at least 1meter (3 feet) away from buildings and other equipment during operation. Do not enclose the generator in any structure. Keep flammable materials away from the generator. -
Page 6: Controls
GRX8000-3G Controls 1) Engine Switch To start and stop engine. Switch position: OFF: To stop the engine. Key can be removed/inserted. ON: To run the engine after starting. START: To start the engine by turning the starter motor. With Electric Starter Without Electric Started Return the key to the ON position once the engine has started. - Page 7 GRX8000-3G 3) Fuel Value The Fuel Valve is located between the fuel tank and carburettor. When the valve lever is in the ON position, fuel is allowed to flow from the fuel tank to the carburettor. Be sure to return the lever to the OFF position after stopping the engine.
-
Page 8: Generator Use
GRX8000-3G 6) Ground Terminal The generator ground terminal is connected to the panel of the generator, the metal non-current carrying parts of the generator, and the ground terminals of each receptacle. Before using the ground terminal, consult a qualified electrician, electrical inspector or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator. - Page 9 GRX8000-3G Special Requirements There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.
- Page 10 GRX8000-3G Do not exceed the current limit specified for any one receptacle. If an overloaded circuit causes the AC circuit breaker to switch OFF. reduce the electrical load on the circuit, wait a few minutes and then reset the circuit breaker.
- Page 11 GRX8000-3G 1) Before connecting charging cables to a battery that is installed in a vehicle disconnect the vehicle's grounded battery cable. Warning: The battery gives off explosive gases; keep spark, flames and cigarettes away. Provide adequate ventilation when charging or using batteries.
-
Page 12: Pre-Operation Check
GRX8000-3G each 1000 foot (300 meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburettor modification is made. Notice: If an engine jetted for high altitude is used at a lower altitude, the lean air fuel mixture will reduce performance and may over-heat and seriously damage the engine. - Page 13 GRX8000-3G 2) Fuel Recommendation 1. Check the fuel level gauge. 2. Refill the tank if the fuel level is low. Do not fill above the shoulder of the fuel strainer. Warning: - Gasoline is extremely flammable and is explosive under certain conditions.
- Page 14 GRX8000-3G Notice: Running the engine with persistent spark knock or pinging can cause engine damage. Running the engine with persistent spark knock or pinging is misuse, and the Distributor’s Limited Warranty does not cover parts damaged by misuse. Oxygenated Fuels Some gasoline is blended with alcohol or an ether compound to increase the octane.
-
Page 15: Starting / Stopping The Engine
GRX8000-3G Starting and stopping the engine Starting the engine 1. Make sure that the AC circuit breaker is in the OFF position. The generator may be hard to start if a load is connected. 2. Turn the fuel valve to the ON position. -
Page 16: Maintenance
GRX8000-3G Maintenance Good maintenance is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. Warning: Exhaust gas contains poisonous carbon monoxide. Shut off the engine before performing any maintenance. If the engine must be run, make sure the area is well ventilated. - Page 17 GRX8000-3G Tool kit The tools supplied with the generator will help you to perform the owner maintenance procedures listed on the following page. Always keep this tool kit with the generator. 2) Air Cleaner Service A dirty air cleaner will restrict air flow to the carburettor. To prevent carburettor malfunction.
- Page 18 GRX8000-3G 3) Fuel Sediment Cup Cleaning The sediment cup prevents dirt or water which may be in the fuel tank from entering the carburettor. If the engine has not been run for a long time, the sediment cup should be cleaned.
-
Page 19: Transporting / Storage
GRX8000-3G 6. Check that the spark plug washer is in good condition, and thread the spark plug in by hand to prevent cross-threading. 7. After the spark plug is seated, tighten with a spark plug wrench to compress the washer. - Page 20 GRX8000-3G Warning: Contact with a hot engine or exhaust system can cause serious burns or fires. Let the engine cool before transporting or storing the generator. Take care not to drop or strike the generator when transporting Do not place heavy objects on the generator.
-
Page 21: Troubleshooting
GRX8000-3G Troubleshooting... - Page 22 GRX8000-3G...
-
Page 23: Wiring Diagram
GRX8000-3G Wiring Diagrams... - Page 24 GRX8000-3G...
-
Page 25: Specifications
GRX8000-3G Specifications Engine Engine Model 192F Engine Type Air-cooled;4-stroke; OHV; single cylinder Displacement (cc) 439cc Max. Output 11.8kW Igniting System Transistor magneto Starting System Recoil / Electric Fuel Volume 6.5L Continuous operating time Min. Fuel Consumption(g/ ≤313g kW.h) Noise Level Generator A.C. -
Page 26: Ce Declaration Of Conformity
GRX8000-3G DIESEL GENERATOR CE DECLARATION OF CONFORMITY We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. - Page 27 GRX8000-3G...
