K Seri es G en era t ors
Read this manual carefully before use – Failure to do so may result in injury, property
damage and may void warranty. • Keep this manual for future reference. • Products
covered by this manual may vary in appearance, assembly, inclusions, specifications,
description and packaging.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bohmer-AG K Series
Summary of Contents for Bohmer-AG K Series

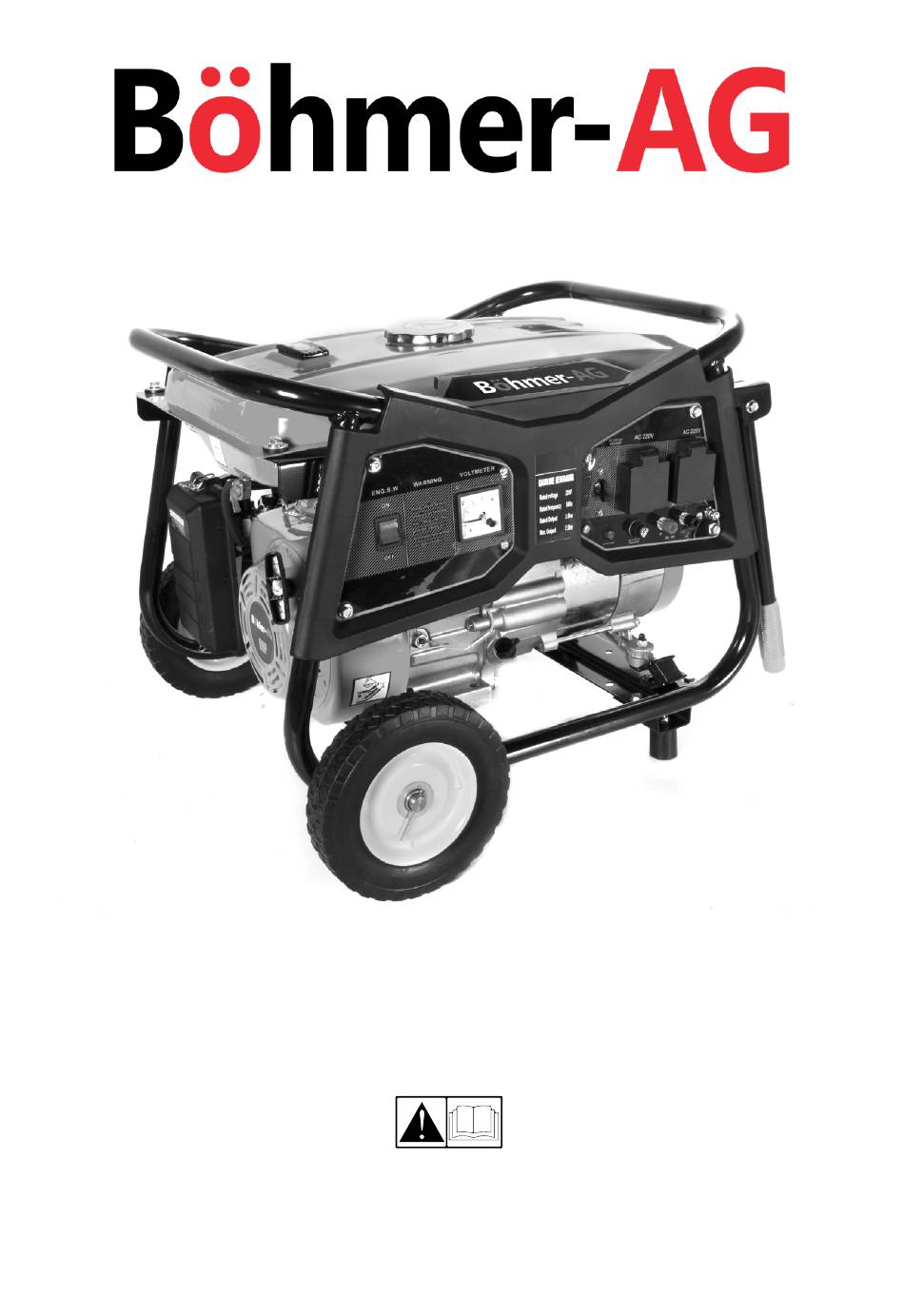

- Page 1 K Seri es G en era t ors Read this manual carefully before use – Failure to do so may result in injury, property damage and may void warranty. • Keep this manual for future reference. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
-
Page 2: Table Of Contents
K Series Contents 2 - Contents 3 - Quick start guide Overview 4 - Quick start guide Assembly 5 - Preface 6 - Important safety information 7 - Check before use 8 - Starting your gasoline generator 9 - Electric start... -
Page 3: Quick Start Guide
K Series Quick start guide The following steps describe the quickest method to get your pressure washer up and running, however it is essential you fully read the manual to ensure you are familiar with the general safety features, precautions and functions necessary to operate a high pressure washer, failure to do so may result in injury, damage to your washer or personal items. -
Page 4: Assembly
K Series Rubber Feet Quick Start Assembly The following describes how to attach the rubber feet to the Generator frame. Wheels Please follow the illustrations below. Your Generator requires some basic The underside of the Generator frame assembly. The wheels, feet and handles has pre-drilled holes (fig.5/6 ‘D’) which... -
Page 5: Preface
K Series Handles All technical data and illustrations in this manual conform with the latest The handles attach at the back of the specifications at the time of printing. frame (fig.9) and are secured using the Because of revisions and other changes, two nuts and bolts provided. -
Page 6: Important Safety Information
K Series Important safety information Explanation of symbols Caution! Be aware of potential Warning! Risk of injury. Pay risks/hazards special attention Safety information • Do not attempt to modify the product In any way. • To ensure good operating conditions, range regular service from an authorised agent. -
Page 7: Check Before Use
K Series Check before use Oil level Note: The generator must be operated on a flat surface - the unit will shut down on an uneven surface. 1. Clean dipstick 2. Insert the dipstick into the oil inlet, do not rotate 3. -
Page 8: Starting Your Gasoline Generator
K Series • Only use unleaded gasoline in this generator with an octane number higher than • The use of lead free (unleaded) petrol in the engine can reduce the accumulation of carbon in the engine and extend the life of the generator. -
Page 9: Electric Start
K Series Recoil Fig.12 Fig.13 Fig.14 Fig.15 Electric start 1. For models with electric start, you can skip step 5 of the previous starting methods as described. Your model still comes with a recoil starter as a backup / alternative starting medhod. -
Page 10: Ac Connection
K Series AC connection 1. To start follow the starting procedure 2. Connect the device to one of the 3-pin sockets 3. Flick the Circuit Breaker switch to the ON position. This allows surge protection for connected devices DC connection 1. -
Page 11: Connection Examples
K Series Connection examples Such as Type Typical Device Start Rated Device Start Rated Incandescent Incandescent Lamp Incandescent Lamp 100VA (W) 100VA (W) Lamp Heating Device 100W Flourescent Lamp Flourescent Lamp X1.5 Flourescent Lamp 80VA (W) 60VA (W) Refrigerator Refrigerator... -
Page 12: Maintenance Tasks
K Series Maintenance tasks Oil change Spark plug 1. Unscrew the oil dipstick (fig.17 ‘A’) 1. Remove spark plug cap (fig.18) 2. Undo the oil plug and drain the oil 2. Remove spark plug with tool (fig.19) 3. Install and tighten the drain plug 3. -
Page 13: Storage
K Series Troubleshooting Fuel filter Issue: 1. Switch off the fuel tap The generator will not start. 2. Remove sediment cup and filtering Solutions: mesh (fig.22) 1. Check fuel 3. Clean sediment cup and filtering mesh 2. Check whether ignition switch is set to 4. -
Page 14: Specifications
K Series Specifications 2500K 3000K 3800K 3800E 5000E 7000E Max Output 2200 W 2700 W 3000 W 3000 W 7500 W 9500 W 2000 W 2500 W 2700 W 2700 W 5000 W 7000 W Rated Output Rated AC 240 V... -
Page 15: Ce Declaration Of Conformity
Böhmer‐AG K Series WX‐2500K, WX‐3800K CE Declaration of Conformity CE DECLARATION OF CONFORMITY We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. The undersigned: Michael S McQuaide as authorised by: Union Mart Ltd Declares that Description: Petrol Generator Identification code: WX‐2500K, WX‐3000K, WX‐3800K Conforms to the following directives and standards: • MD 2006/42/EC Machinery Directive • EMC 2014/30/EU Electromagnetic Compatibility Directive ‐‐ And Complies with the provisions of the following standards: EN ISO 12100:2010,EN 1679‐1:1998+A1:2011,EN 60204‐1:2006+A1:2009+AC:2010, EN 12601:2010,EN 61000‐6‐1:2007,EN 61000‐6‐3:2007+A1:2011 ‐‐ Notified body: ENTE CERTIFICAZIONE MACCHINE SRL The technical documentation is kept by: Union Mart Ltd Date: 10/02/2017 Signed: Michael S McQuaide Managing Director Name and address of the manufacturer: Union Mart Ltd, Company No. 8384155. Registered address: Unit C3,...
