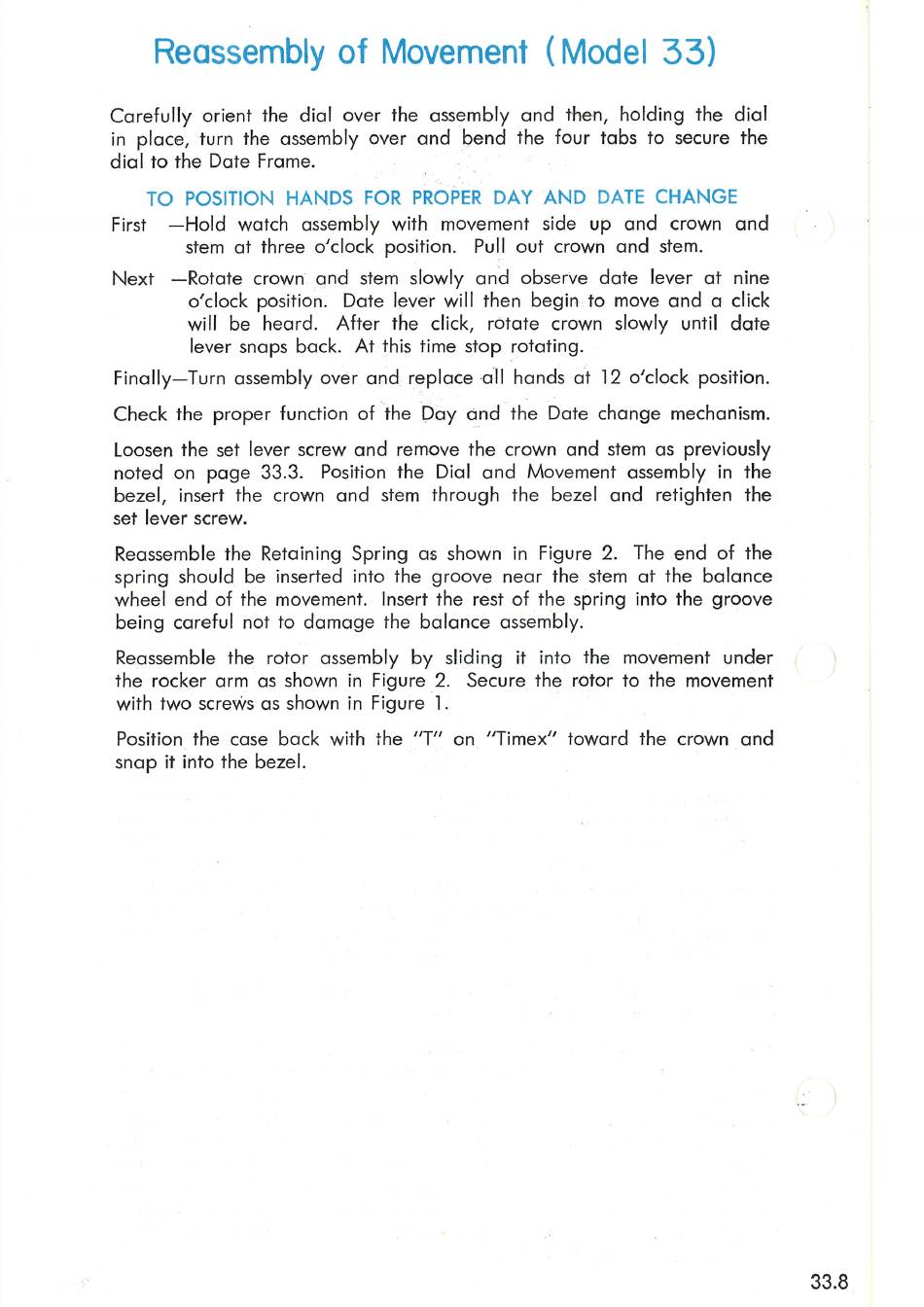

Reassembly of Movement (Model 33)
Carefully orient the dial over the assembly and then, hold ing the dial
in place, turn the assembly over and bend the four tabs to secure the
dial to the Date Frame.
TO POSITION HANDS FOR PROPER DAY AND DATE CHANGE
First -Hold watch assembly with movement side up and crown and
stem at three o'clock position. Pull out crown and stem.
Next -Rotate crown and stem slowly and observe date lever at nine
o'clock position. Date lever will then begin to move and a click
will be heard . After the click, rotate crown slowly until date
lever snaps back. At this time stop rotating .
Finally-Turn assembly over and replace all hands at 12 o'clock position.
Check the proper function of the bay and the Date change mechanism .
Loosen the set lever screw and remove the crown and stem as previously
noted on page 33 .3. Position the Dial and Movement assembly in the
bezel, insert the crown and stem through the bezel and retighten the
set lever screw.
Reassemble the Retaining Spring as shown in Figure 2. The end of the
spring should be inserted into the groove near the stem at the balance
wheel end of the movement. Insert the rest of the spring into the groove
being careful not to damage the balance assembly.
Reassemble the rotor assembly by sliding it into the movement under
the rocker arm as shown in Figure 2. Secure the rotor to the movement
with two screws as shown in Figure 1.
Position t he case back with the
'T'
on "Timex" toward the crown and
snap it into the bezel.
33.8
