- Page 1 AvalonMiner 1066 Pro User Manual...
- Page 2 3250W, -5%~+8%@Wall-Plug, 185~280V AC 50~60Hz Power Supply AC Input 185~280V AC 50~60Hz 16A (Max) Chips 342 x A3205 16nm ASIC Smart Controller Canaan Kendryte K210 Artificial Intelligence SOC Connection RJ45 Ethernet 10/100M, Daisy-Chain Connection Air-intake Temperature -5℃~+35℃ Cooling 4 x 12038 FAN 75dB（Typical）...
-
Page 3: Table Of Contents
1066 Pro Content Chapter 1 Hardware Connection .............. 3 Control Panel ...................... 3 Connection of Miner Management board ............3 Chapter 2 Button and Light Indicator ............3 Buttons ....................... 3 Light Indicator..................... 4 Chapter 3 Work Mode................4 Normal Mode ..................... 4 Configuration Mode.................... -
Page 4: Chapter 1 Hardware Connection

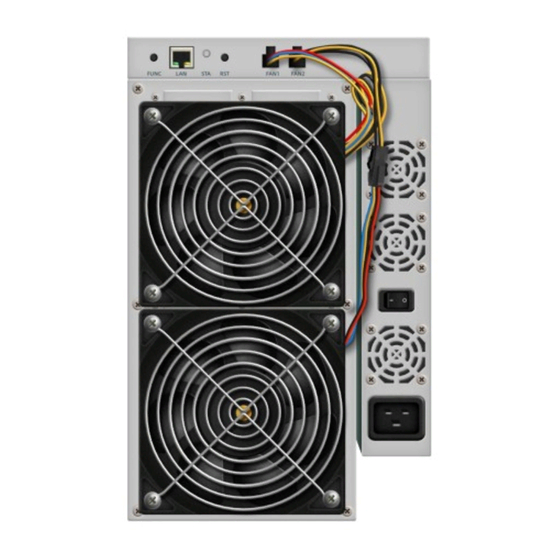

1066 Pro Chapter 1 Hardware Connection Control Panel ① Network port ② Fan connector, connecting the 4PIN fan cable Connection of Miner Management board Open the upper panel and you can see the structure of the entire management module of the miner. The internal interfaces are shown in the figures: ③... -
Page 5: Light Indicator
1066 Pro connection FUNC：Functional button. It can be used to reset the miner back to the factory settings, enter the configuration mode, and switch lighting status in operation, etc. Light Indicator • The light indicator flashes in several times after power-on •... -
Page 6: Chapter 4 System Setting
1066 Pro - Please right click to open network & internet settings. - Go to “change adapter options” to disable WLAN and enable Ethernet. Then use browser to access http://192.168.168.168/ to configure the device(Modify static IP, etc.). After configuration, nothing will take effect unless machine rebooted. Users are free to either click Reboot key on the left part of the interface or power off manually. -
Page 7: Network Setting
1066 Pro Network Setting Click the Network in the configuration menu and set it to DHCP (dynamic acquisition) or IP(Static). Note: After pressing the save button，please remember to restart the machine to make sure your network setting effective. To restart it, users can click Reboot on the left, or press RESET button (on the miner), or power off and on. -
Page 8: User Id And Password
1066 Pro User ID and Password Default username: root, default password: root Click Administrator on the menu to set a new password and save it. Chapter 5 Firmware Upgrade The upgrade package file’s format is *. aup, which can be downloaded through the official website or via customer service. -
Page 9: Chapter 7 Warranty
1066 Pro Chapter 7 Warranty After the miner having run for some time, such machine glitches as loosened connection or abnormal damage shall be taken into consideration. For this, users are free to troubleshoot it themselves after consulting our professional engineers. If the device is damaged within the scope of warranty, contact our after-sales personnel for quick repairs. -
Page 10: Cannot Mine
1066 Pro ✓ Power on the miner and plug in the network cable connected to the switch (or router). Check whether the link light of the network port is flashing. If the light of the network port is off, it means that the MM control panel is out of power. Then It is necessary to check whether the power cable is connected, replace the power supply or check whether there is a short circuit of the power output. - Page 11 1066 Pro should be 3. If the value is 1 or 2, you need to contact our after-sales personnel to deal with it. If it is 0, you need to check the power status according to the following. ✓ Check the power, temperature, network status and fan status Click the Log in the menu as below.
- Page 12 1066 Pro If you see any of the above temperature terms exceeding the maximum level (Temp • over 35, Tmax over 85, TAvg over 68), you need to check the fan speed (as shown in⑥). If the fan speed is normal, it is necessary to reduce the indoor temperature and ensure good ventilation around the miner.
- Page 13 1066 Pro Click on the NetWork in menu and the default configuration is DHCP mode. If all the data is empty, press F5 to refresh the page. If you use static IP, you need to pay attention to the configuration of DNS. The wrong DNS configuration will make miners not able to access the pool.
-
Page 14: Appendix
1066 Pro APPENDIX Appendix I Restore factory settings • Method 1: Steps Remark Ensure the machine is power off Keep pressing FUNC button Power on the machine Note: need to keep the func button pressed all the time. Keep FUNC button pressed until the white LED flashes. -
Page 15: Appendix Iii Method To Batch Upgrade The Firmware Via Fms
1066 Pro • Check in FMS overview page: Find the firmware revision from ① Appendix III Method to batch upgrade the firmware by FMS Startup FMS, select the corresponding miner in the main page, and click the Upgrade button, as below: ... -
Page 16: Appendix Iv Parameters In Log
1066 Pro At the end of the update, there is a notification of “All upgrades were successful” to indicate the updating success. Otherwise All the IP addresses of the failed upgrades will be listed. For the miners whose upgrade fails, they can be selected according to IP and then restarted by clicking the button. - Page 17 1066 Pro in the 1 frequency…there is 5786 chips running in the 4 frequency. PLL1 The chip quantity in every frequency for the 1 hash board. GHSmm Hashrate before calibration (unit: Note: actual hashrate = the hash GH/s) rate before calibration *(1-DH) GHSavg Average hashrate for 1 hour Average hashrate for 1 hour...
-
Page 18: Appendix V Led Status
1066 Pro Appendix V LED status 1. LED status transition when power on Status Red LED flashing White LED lit Yellow LED lit Green LED lit Duration Approx. 20-30s Long lasting 2. LED status LED Status Remark Firmware is not running (power off). Red LED flashing Flashing for 1s when system startup. -
Page 19: Contact
1066 Pro Contact To get more information about the installation and operation, please log in the official website https://www.canaan-creative.com send email to support@canaan.io...
