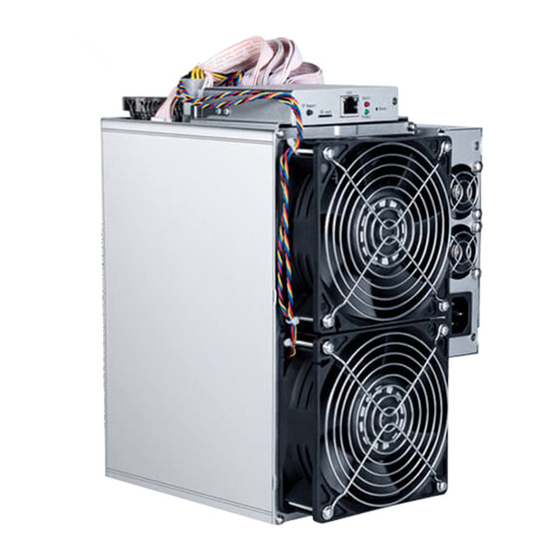

AvalonMiner 1066 User Manual
Contents
Overview.......................................................................................................................................................2
Safety Regulation.........................................................................................................................................2
Hardware Connection.................................................................................................................................3
Keys and Indicator Lamps............................................................................................................................5
Keys.............................................................................................................................................................5
Indicator Lamps........................................................................................................................................6
Work Mode..................................................................................................................................................6
Normal Mode...........................................................................................................................................6
Configuration Mode................................................................................................................................6
System Setting.............................................................................................................................................8
User Login.................................................................................................................................................8
Network Setting.......................................................................................................................................8
Mining Pool Setting..................................................................................................................................9
User Password..........................................................................................................................................9
Management Software FMS.......................................................................................................................9
Firmware Upgrade.....................................................................................................................................18
Reset Mining to Factory Setting..............................................................................................................18
Warranty ....................................................................................................................................................18
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Canaan AvalonMiner 1066
Summary of Contents for Canaan AvalonMiner 1066
-
Page 1: Table Of Contents
AvalonMiner 1066 User Manual Contents Overview………………………………………………………………………………………………….…….……….…………….……2 Safety Regulation……………………………………………………………………………………………….……………………….2 Hardware Connection…………………………………………………………………………………………………...……………3 Keys and Indicator Lamps……………………………………………………………………….……………………………………5 Keys……………………………………………………………………………………………………….………………….……….…….5 Indicator Lamps…………………………………………………………….………………….……………………..………….…6 Work Mode………………………………………………………………….…………………………………….…….…….………….6 Normal Mode…………………………………………………………………………………………….……….…….…………….6 Configuration Mode……………………………………………………………………………………….……………………….6 System Setting…………………………………………………………………………………………………………..……….…….8 User Login……………………………………………………………………………………………………………..….…………….8 Network Setting……………………………………………………………….…………………………………….……………….8 Mining Pool Setting………………………………………………………………………………….………………………………9 User Password…………………………………………………………………………….………………………...….…………….9 Management Software FMS………………………………………………………………………………………..………………9 Firmware Upgrade………………………………………………………………………………………………….……….….…….18 Reset Mining to Factory Setting………………………………………….………………………………….………...………18... -
Page 2: Overview
3250W, -5%~+8%@Wall-Plug, 185~280V AC 50~60Hz Power Supply AC Input 185~280V AC 50~60Hz 16A (Max) Chips 342 x A3205 16nm ASIC Smart Controller Canaan Kendryte K210 Artificial Intelligence SOC Connection RJ45 Ethernet 10/100M, Daisy-Chain Connection Air-intake Temperature -5℃~+35℃ Cooling 4 x 12038 FAN 75dB（Typical）... -
Page 3: Hardware Connection
Hardware Connection Connect the power supply and products as below Figs. Power Connection Please fix the conversion card with the miner via 6 M3*4 screws and insert the PSU into the slot as below Figs. - Page 4 Please stretch the output copper wire to connect the PSU with the miner via 12 M4*8 screws as the below Fig. Please insert the 6-pin plug into the matching socket.
-
Page 5: Keys And Indicator Lamps
Each unit is born with 2 RJ45 ports available for a daisy-chain (suggestion: better to be 12 units at most as one group). Let’s take an example as follow, RJ45 cable relates to the switch at one end while the other one linking with the first machine that goes with the second miner and so on so forth, to form a multiple connection. -
Page 6: Indicator Lamps
FUNC：Functional keys can be used to reset the miner back to the factory settings, enter the configuration mode, and switch lighting status in operation, etc. Indicator Lamps ➢ The indicator lamp flashes in red several times after power-on ➢ After device startup, the indicator lamp turns white for about three secs. During this period, press the FUNC key, then device will enter the configuration mode. - Page 7 Set PC to static IP address: 192.168.168.100 (or any other non-conflicting address with the same segment), subnet mask: 255.255.255.0, connect to the same network with the device (under the same switch or router, or directly connect PC to the device network). 1.
-
Page 8: System Setting
System Setting Access the device's built-in Web service through browser and enter the device interface after login. User Login Default username: root, default password: root, it can enter the Overview page after login. Network Setting Click the Network in the left to set it to DHCP (dynamic acquisition) or IP(Static). Note: After pressing the save key，please remember to restart the machine to make sure your network setting effective. -
Page 9: Mining Pool Setting
Mining Pool Setting The following Fig is the factory settings. There are two modes here: Normal Mode and High- Performance mode. When using the high-performance mode, please be noted to use high consumption power supply for output in case of any hardware damage. Note: After pressing the save key，please remember to restart the machine to make sure your mining pool configuration effective. - Page 10 1． Double click fms.exe icon to start the installer. 2. Specify the installation directory in the following installer window: 3. Click Next:...
- Page 11 4. Click Next:...
- Page 12 5. Click Install to start installation: Once the progress is done:...
- Page 13 Click finish to complete the installation ⚫ User interface Introduction 1. Double click the desktop icon to enter FMS: manual scanning firmware upgrade change settings...
- Page 14 temperature monitoring miner monitoring hash rate monitoring state: current status (marked or normal) Pool & Worker: pool configured and miner operator No. Number of Miner in Pool: how many miners in pool IP address: miner IP address AUC count: number of AUC Miner Count: number of miners Elapsed Time: current operating time Min Ambient Temperature(℃) : the ambient temperature of the air-in...
- Page 15 The following figures represent: the monitoring time interval (minutes); the high temperature alarm threshold for ambient temperature; the low temperature alarm threshold for ambient temperature; the temperature unit configuration (Celsius, Fahrenheit) Click “+” button and enter the subnet IP range for the miners (e.g. 192.168.193.1- 192.168.193.255) and click Confirm to auto-discover the miners.
- Page 16 Every miner under this IP segment can be displayed when users go back to the main window. 2. Firmware Upgrade Select the miner to be upgraded in the main window, and click Upgrade Select the firmware file in the popup window:...
- Page 17 Click Open to begin the upgrade process. The following dialog will be shown if the upgrade is successful:...
-
Page 18: Firmware Upgrade
Firmware Upgrade The upgrade package file’s format of this device is *. aup, which can be downloaded through the official website or via customer service. The device’s firmware upgrade can only be implemented through FMS software. Rest the Miner to Factory Setting Press the FUNC key for five to ten secs (Before the indicator lamp turning red) when the power is on, and the system will automatically clear the saved configuration, including network, mining pool, password and other information. - Page 19 We guarantee a 180-day warranty of the product since the date the customer receives the goods, but the followings will invalidate the warranty: 1. Any physical damage caused by self-disassembly of the products or other causes (including but not limited to breakage, fragmentation, parts or components missing, etc.) 2.
