- Page 1 Catalogue/Engineering Data ED-UWLB5-1503 UWL-B5 Series Water Source Modular Chiller (Heat Pump) Models: UWL030-040B5 Refrigerant: R410A Cooling Capacity: 118-150kW Heating Capacity: 130-170kW R410A ODP=0 R410A ODP=0 DAIKIN INDUSTRIES., LTD...
-
Page 2: Table Of Contents
Literature NO.: ED-UWLB5-1503 Supersedes: N/A Contents Model Series..........................2 Nomenclature ........................... 2 Features ........................... 3 Specifications ........................... 5 Dimensions ..........................8 Performance Data ........................8 Water pressure drop curve ....................... 13 Sound Data..........................13 Wiring Diagram ......................... 14 Installation ..........................16 Water system installation ...................... -
Page 3: Model Series
Cooling capatcity code 30HP Product Code Product code —— UWL: Water source modular chiller (heat pump), DAIKIN brand Cooling capacity code —— 020, 030, 040 …… Design series —— A, B, C …… Refrigerant code —— 3: R134a, 4:R407C, 5: R410A, R22: default Product type ——... -
Page 4: Features
Features Water system energy-saving control Control system of UWL-B5 series units can intelligently output the control signals of air conditioning chilled water pump, cooling water pump and cooling tower, and can control start and stop of the cooling tower based on the temperature of the cooling water. - Page 5 The entering water temperature has wide range, which can adopt different cold and heat sources. Large capacity unit reduces installation DAIKIN new modular water cooled chiller (heat pump) unit increases 40RT large capacity single module; the number of unit can be reduced with large refrigeration capacity requirment; there is little installation, which can greatly save the occupation area;...
-
Page 6: Specifications
Specifications General Data Condition Underground water source Ring water source Items UWL030B5 UWL040B5 UWL030B5 UWL040B5 Nominal cooling capacity Rated cooling power input 20.0 25.3 22.1 29.1 5.90 5.93 4.98 4.98 Rated running current 38.7 50.4 43.5 56.0 Cooling Evaporator water flow 20.3 25.8 18.9... - Page 7 Components Data Conditions Underground water source Ring water source Items UWL030B5 UWL040B5 UWL030B5 UWL040B5 Hihg efficiency shell and tube heat Hihg efficiency shell and tube heat Type exchanger exchanger Cooling 20.3 25.8 18.9 24.9 Water flow Heating 12.2 15.5 23.7 31.2 Evaporator Water volume...
- Page 8 Electrical Data Model UWL030B5 UWL040B5 Rated running Compressor 18.3X3 18.3X4 current IP/ Insulation grade IPX4/E IPX4/E Unit operating current 38.7 50.4 Unit max running current Unit max power input 40.5 51.8 Notes: 1. All specifictions are subjected to change by the manufacturer without prior notice. 2. M ax running current is tested under below condition: EWT of using side is 30ºC, EWT of heat source side is 50ºC. Safety Devices Model UWL030B5 UWL040B5...
-
Page 9: Dimensions
Dimensions Water source modular chiller (heat pump) UWL030B5 / UWL040B5 Electrical cabinet Evaporator water outlet R2-1/2 Evaporator water inlet R2-1/2 Condenser water inlet R2-1/2 Condenser water outlet R2-1/2 Cable port 205 154 1400 Installation hole Installation hole 1800 Unit mm Unit ：... - Page 10 Cooling and heating capacity performance table UWL030B5 Cooling capacity and cooling power input performance table Using side LWT(ºC) UWL030B5 Cpapacity (kW) 116.5 122.5 127.9 135.3 141.5 146.7 149.5 152.9 154.6 114.4 120.5 126.1 133.7 140.2 145.6 148.6 152.3 154.1 111.7 123.8 131.6 138.4...
- Page 11 Heating capacity and heating power input performance table Using side LWT(ºC) UWL030B5 Cpapacity (kW) 117.5 118.4 118.9 119.2 119.2 118.5 116.8 115.3 114.1 127.7 128.1 127.9 124.9 123.2 121.9 133.1 133.7 133.8 133.8 133.4 132.3 130.1 128.2 126.8 138.9 139.4 139.4 139.3 138.7...
- Page 12 UWL040B5 Cooling capacity and cooling power input performance table Using side LWT(ºC) UWL040B5 Capacity (kW) 148.9 156.5 163.5 172.8 180.8 187.4 191.1 195.4 197.5 146.2 161.2 170.8 179.1 189.9 194.5 196.9 142.8 150.8 158.2 168.2 176.8 188.1 195.6 140.1 148.3 155.9 166.1 174.9...
- Page 13 Heating capacity and heating power input performance table Using side LWT(ºC) UWL040B5 Capacity (kW) 153.6 154.8 155.3 155.8 155.7 154.9 152.7 150.7 149.2 166.9 167.3 167.5 167.1 165.9 163.3 159.3 173.9 174.7 174.9 174.9 174.4 172.9 167.5 165.6 181.5 182.1 182.2 181.3 179.6...
-
Page 14: Water Pressure Drop Curve
Water pressure drop curve Curve for water pressure drop of evaporator/condenser UWL040B5 evaporator UWL030B5 evaporator UWL040B5 condenser UWL030B5 condenser Water flow (m Note: The water pressure drop curve is measured base on clean water, the water pressure drop measured at site may be different because of different water quality. -
Page 15: Wiring Diagram
Wiring Diagram UWL030B5... - Page 16 UWL040B5...
-
Page 17: Installation
Installation Working Condition Item Description Power supply voltage Rated voltage ±10% Power supply frequency Rated frequency ±1% Variations between phases Rated voltage ±2% Air quality Must not contain solute that can corrode copper, aluminum or iron. Flow rate of chilled water 0.5 - 2.0m/s Pressure of chilled water <... - Page 18 Installation Dimensions and Environment Limits Machine Installation Space Units must be installed by DAIKIN service staff or by specially trained personnel. Units must installed by following relevant national and local electric, building and environment protection standards as well as the installation manual.
- Page 19 Unit Barycenter And Bearing UNIT OPERATION BARYCENTER AND POINT BEARING (TOP VIEW) 1800 BARYCENTER INSTALLATION FRONT OF UNIT POSITION Model X(mm) Y(mm) A(kg) B(kg) C(kg) D(kg) WGZ030B5 WGZ040B5 Space Allocated for A Single Chilled Water Unit UNIT：mm...
- Page 20 Space Allotted for An Array of Chilled Water Units UNIT：mm UNIT：mm Installing chiller Reserve sufficient maintenance space if possible. If the unit is installed in a place where it snows in winter, proper measures better be taken to protect the unit against snow and ensure that the unit works properly.
- Page 21 Hoisting chiller Please hoist the unit according to the following illustrations. Tie the cables to the four corners of the unit while moving it. If you tie the cables to only three corners of the unit, the unit might get unbalanced and fall off. PROTECTIVE CUSHION HOISTING CABLE (TWO) Note:...
-
Page 22: Water System Installation

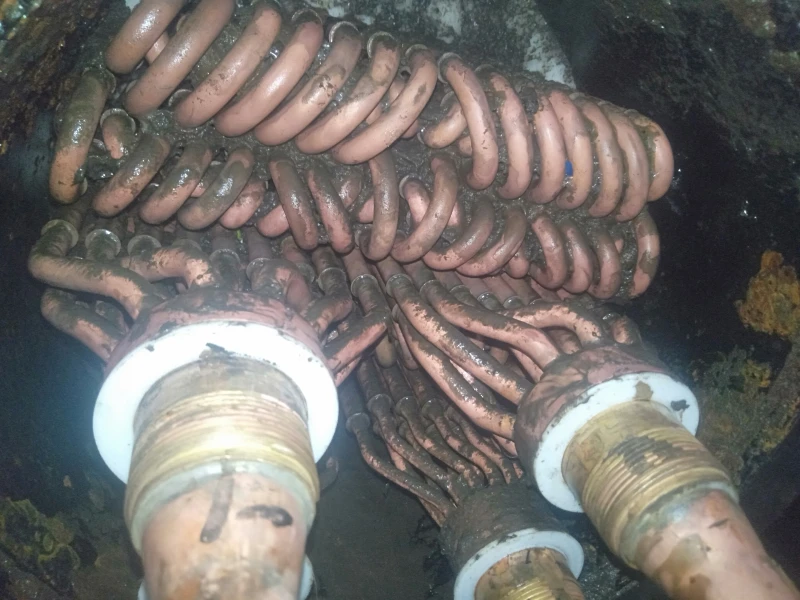

Water system installation Water quality requirements Water in the water system must be softened to prevent scale in the heat exchanger and affecting the heat exchanger performance. Water not softened can also cause scale in the water pipes and cause the water resistance to increase. This affects the water flow and the performance of the water pump. - Page 23 Installation illustration for the water system of a single unit: EXPANSION WATER TANK REFILL DRAIN WATER TANK HEATER REFILL DRAIN COOLING TOWER REFILL DRAIN Installation illustration for water system of multi-unit combination: AIR DISCHARGE REFILL DN20 - - - FULL COOLING TOWE REFILL DRAINAGE...
- Page 24 Installation illustration for water system of multi-unit combination (separate pumps for each unit): AIR DISCHARGE REFILL DN20 - - - FULL DRAINAGE DN20 COOLING TOWE REFILL - - - LENGENDS: PRESSURE GAUGE Y-SHAPE FILTER GATE VALVE PUMP THERMOMETER CHECK VALVE DIFFERENTIAL OPEN COOLING...
- Page 25 The switchover between water-cooled chilled water and water-source hot water modes can be achieved easily by the opening and closing of valves in the water system to meet the annual demand for cooling or heating. The cold and heat source can be waste heat, geothermal source, water source and others. The operation is more efficient and more ecofriendly.
- Page 26 * Determining the diameter of pipes in the air conditioning system The pipe diameter is determined based on the following: = water flow m v = water speed m/s The water speed should be determined by the recommendations in the first table and design the water pipe diameters accordingly, or you can determine the water pipe diameter based on water flow in the second table.
- Page 27 Water Storage Tank Volume Calculating Vmin is referred to the below table: Model UWL030B5 UWL040B5 Setting EWT (ºC) Vmin. (L) Note: 1. The total water volume of the entire hydraulic system includes the water in main pipe, water tank and terminal equipments, in which the 2-way valve is open. 2.
- Page 28 Model Selection Principles for the Water Circulation Pump Water flow in the water circulation pump ≥ rated water flow × 1.1 Closed water circulation system: Water circulation pump lift ≥ (Pipe resistance of the water system + Partial resistance of the water system + Water pressure drop of the unit) × 1.1 Open water circulation system: Water circulation pump lift ≥(Static resistance of the water system + Pipe resistance of the water system + Partial resistance of the water system + Water pressure drop of the unit) ×...
-
Page 29: Commissioning And Operation
Note: The reference standards are used to check whether a unit works properly onsite. Reference standards are determined based on the maximum and minimum working conditions. If reference standards are exceeds after the unit has properly worked for a period of time, contact the local dealer or DAIKIN for help. -
Page 30: Maintenance
Maintenance Repair Note: Before delivery, strict factory test Note: Before checking and maintaining the is conducted to ensure the unit works at unit, confirm the safety precautions again. optimal performance. The unit must be maintained from time to time. The unit can only be repaired and serviced by specially-trained technicians. After a unit is serviced, safety controls must be checked and analyzed before the unit is turned on. - Page 31 Maintenance The unit must be checked on a routine basis to ensure performance. Routine check is the best way to reduce downtime and waste. The following needs to be checked on a routine basis: Once half Once Items Monthly Quarterly If necessary a year a year...
- Page 32 Water Processing Method To ensure effective operation and durability, cleaning, washing and chemical processing are very important for water systems. Different types of water circuits need to be cleaned in different ways. ■ Close Re-Circulation System. Water systems of this type generally require no adjustment to subdue scale, and require no chemical to suppress mud and alga.
-
Page 33: Control System Instruction
Control System Instruction Power Cable Connection Diagram 380V/3N~/50Hz 380V/3N~/50Hz Breaker Breaker Breaker Breaker Breaker Breaker Master Master 0# Slave 0# Slave 14# Slave 14# Slave ■ The dimension of power cable connection refer to electical parameters. ■ All wires must be securely connected. ■... - Page 34 ■ Setting up Address Using DIP Switch. The controller can be used to set the unit's capacity, address and slave unit number. The capacity DIP has been set at delivery time and cannot be changed. The address DIP and slave number DIP need to be set as needed after the unit is installed.
- Page 35 ■ Address setting (SW3 and SW4: When SW1.1 is set as the master unit, the modbus equipment address corresponding to the master unit shall add 1; when SW1.1 is set as the slave unit, it has the address of the slave unit. The range is 0~ 14). Address Address Address...
-
Page 36: Wired Controller Instruction
Wired controller instruction Wired controller instruction Dimensions Dimensions 120mm 18mm POWER RUN ON OFF LNIT NO. MODE ENTER PASSWORD TIMER Controller Installation Controller Installation Connected to power supply 200V~/50Hz 220V~/50Hz Power adapter Connected to the control panel... - Page 37 Functions MC305 is a wall-mounted LCD controller which directly controls air conditioners through keys on its panel. 1) Features Two operation modes: heating/cooling (Note: operation modes can only be switched when the unit is off) For air cooling chiller, temperature setting range for inlet water: cooling 10ºC~25ºC, heating 25ºC~50ºC; For water cooled chiller, temperature setting range for inlet water: cooling 9ºC~25ºC (-10ºC~10ºC for low water temperature unit), heating 25ºC~50ºC.
- Page 38 The control system has the following functions: Function Function Controlling the 2-way valve of the water system (relevant accessories need to be Protection for Compressors in Operation purchase separately); Anti-freeze protection Averaging Workload among Compressors 2-way Valve Interlock Control Failure alarm, viewing and output Memorizing parameters in the case of a Week Setting power failure...
- Page 39 4. Setting Parameters (parameters can be set only when the unit is turned off) To set week and time, stick the small hole above the "Mode" key using a needle-like tool (the LCD displays "Weekday Setting"), indicating access to the weekday adjustment phase. Press the “▲”...
-
Page 40: Error Code
Error code Code Symptoms Code Symptoms Entering water temperature sensor malfunction 0#-slave communication failure of evaporator Leaving water temperature sensor malfunction 01...14 1# ~14# slave communication failure of evaporator Heat source side pump/ cooling Entering water temperature sensor malfunction tower fan overload of condenser Overload of compressor in #2 Suction temperature sensor malfunction of #1... - Page 41 Error Code and Running Status ■ Characters displayed by the LED indicator are explained in the following table. Character Content Character Content Character Content Character Content Character Content Character Content Character Content Character Content Character Content Character Content Character Content Character Content ■...
- Page 42 Error Code Symptom Possible Cause Solution The LED indicator Over current of the pump, the overload Heat source of the unit displays protector triggered. Check whether the electric current parameter of side pump/ ER16 and the the overload protector is configured correctly by cooling tower Over current of the fan, the overload protector wired controller...
- Page 43 Error Code Symptom Possible Cause Solution Check whether TH6 and TH7 are inserted The LED indicator TH6 and TH7 are inserted reversely or fall off. EWT,LWT reversely/fall off. of the unit displays temperature ER27 and the abnormal of Detection circuit problem of control module wired controller Replace the control module.
- Page 44 Error Code Symptom Possible Cause Solution Malfunction of heat exchanger. Check and troubleshoot. The LED indicator of the unit displays Insufficient refrigerant or leakage. Check and replenish refrigerant. Low pressure ER36 and the Failure of low-voltage modular input port . Replace the module.
- Page 45 Error Code Symptom Possible Cause Solution TH7 temperature sensor is not properly Check the control module and replug the plugged or has broken off. temperature sensor. The LED indicator Leaving water of the unit displays temperature Test whether the resistance of TH7 sensor meets TH7 temperature sensor is shorted/ open.
- Page 46 Error Code Symptom Possible Cause Solution The LED indicator The temperature of return water is set too low. Change the temperature setting for return water. Over-low of the unit displays of water ER55 and the Test whether the resistance of TH8 sensor meets temperature of TH8 temperature sensor is shorted/ open.
- Page 47 Error Code Symptom Possible Cause Solution The heat exchanger needs cleaning (cooling). Check and troubleshoot the unit. The electronic expansion valve is not opened Check and troubleshoot the electronic expansion The LED indicator as expected (heating). valve. of the unit displays Discharge ER67 and the temperature #3...
