T&S B-2730 Series Installation And Maintenance Instructions Manual

T&S B-2730 Series Installation And Maintenance Instructions Manual

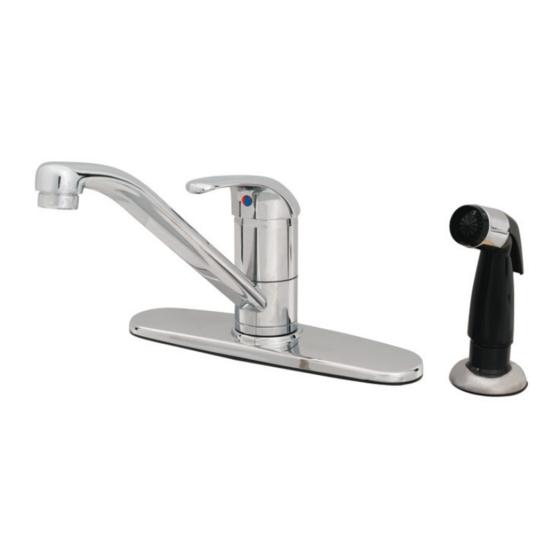

Single lever faucets with or without sidespray
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship
for a period of one (1) year from the date of
purchase. During this one-year warranty period,
if the product is found to be defective, T&S shall,
at its options, repair and/or replace it. To obtain
warranty service, products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S
and the return of repaired or replaced product
to the purchaser are the responsibility of the
purchaser. Repair and/or replacement shall be
made within a reasonable time after receipt by
T&S of the returned product. This warranty does
not cover Items which have received secondary
fi nishing or have been altered or modifi ed after
purchase, or for defects caused by physical
abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion
or limitation of incidental or consequential dam-
ages, so the above limitations or exclusions
may not apply to you. Specifi c rights under this
warranty and other rights vary from state to state.
P/N: 098-013123-45 Rev.4
Date: 03-09-11
Drawn: TEH
Checked: DMH 03-11-11
Approved: JHB 03-16-11
Installation and
Maintenance
Instructions
B-2730 & B-2731
SERIES
SINGLE LEVER FAUCETS
(with or without Sidespray)
Español:
la Instalación y las
Instrucciones de
Mantenimiento

Advertisement

Table of Contents
loading

Summary of Contents for T&S B-2730 Series

  • Page 1 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase.
  • Page 2: Exploded View

    Exploded View...
  • Page 3: Part Number Guide

    Part Number Guide Asm, Single Lever Faucet w/ Sidespray B-2730 Asm, Single Lever Faucet B-2731 Body, Faucet Center Mounting Kit 014163-45 Spacer, Foam Washer, Lock Post, Center Mounting Locknut, Center Mounting Post Deckplate Gasket, Mounting Plastic 014160-45 Zinc 014161-45 Kit, Side Mounting Post & Locknut 014162-45 Post Locknut...
  • Page 4: General Instructions

    General Instructions Faucet Installation 1. Shut off water supply and drain lines. Clean sink surface thoroughly. 2. Place no.6 with no.7 on deck in line with mounting holes. 3. Hand tighten no.18 into no.1. Carefully slide no.18 through center sink hole. 4.
  • Page 5 General Instructions 1. Remove no.15, then using no.16, loosen set screw and lift off no.14 2. Adjust no.13 to desired position per below. Figure 1 Using needle Normal factory nose pliers, care- set position fully lift off the allows full mix- temperature limit ing of hot and stop ring from the...
  • Page 6: Instrucciones Generales

    Instrucciones Generales Instalación de la canilla: 1.Cierre la fuente principal de agua y desagüe las tuberías. Limpie muy bien la superfi cie del lavatorio. 2. Coloque la parte No.6 con la parte No.7 sobre la cubierta en línea con los hue- cos de montadura.
  • Page 7 Instrucciones Generales 1. Remueva la parte No.15, luego afl oje el tornillo de presión utili- zando la parte No.8, y remueva la parte No.14 alzándola. 2. Ajuste la parte No.13 a la posición deseada como lo indica abajo. Dibujo 1 Cuidadosamente La posición levante la argolla...
  • Page 8 B-2710 & B-2711 Single Lever Faucets T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088 T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518 2441 CW Nieuwveen...

This manual is also suitable for:

B-2711B-2710B-2731 series

Table of Contents
