clare CLR-C1-RCDW Installation Sheet

ClareOne Recessed Door/Window Sensor
Installation Sheet
Last modified: 08/18/20
Part number: CLR-C1-RCDW
Description

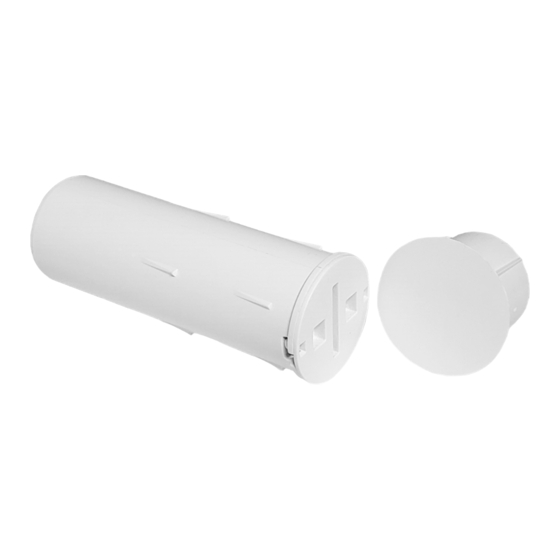

The CLR-C1-RCDW Recessed Door/Window Sensor is a
supervised, wireless sensor that detects the opening and
closing of doors or windows. The sensor and magnet are
recessed mounted into the frame and feature a double tamper
of both the sensor and case for added security.
When activated, the sensor transmits an open (trip) or close
(restore) signal to the panel. The sensor also provides
supervisory, tamper, and low battery (as needed). The sensor
is powered by (1) replaceable 3-VDC Lithium CR2 battery.
Installation
Follow the provided installation guidelines.
Note: Verify mounting location before drilling any holes.
• The area must be able to accommodate an 11/16"
hole to a depth of 2 1/4" for the sensor and 5/8" for
the magnet.
•
The holes must be drilled directly across from each
other to ensure magnet and sensor operate properly.
•
Pull the battery tab out of the sensor before operation,
necessary for adding the sensor to the panel.
© 18AUG20 Clare Controls, LLC.

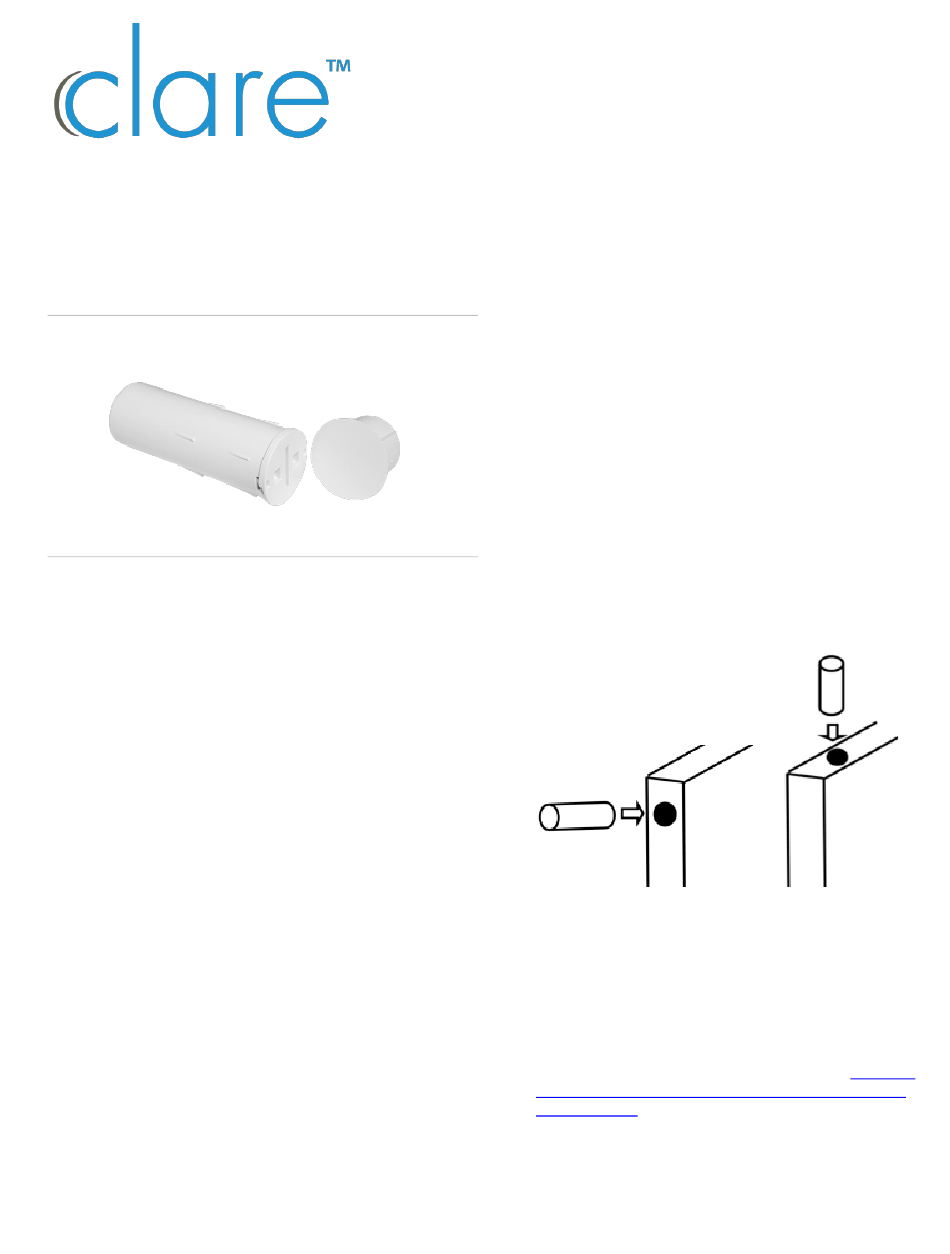

To install the recessed door/window sensor:
Using an 11/16" drill bit, drill a 5/8" deep hole for the
1.
magnet.
2. Mark the location directly across for the sensor hole, and
then drill a 2 ¼" deep hole for the sensor.
3. Push both magnet and sensor into mounting holes until
they are flush against the frame.
Notes
•
The magnet and sensor are slightly larger than the
drilled hole to ensure a snug fit. Slight routing of the
hole may be required. Verify that there is good
door/window closure.
•
Mount in the side or top of the door/window.
Programming
To add the sensor to the ClareOne panel:
1. Ensure the magnet and sensor are in their not faulted
position (door/window closed).
2. Put the ClareOne panel into sensor paring mode. For
detailed programming instructions, refer to the
Wireless Security and Smart Home Panel User Manual
(DOC ID 1871).
3. Trip the sensor by opening the door/window (separating
the magnet from the sensor).
1 / 3
ClareOne
DOC ID – 1980 • Rev 01
