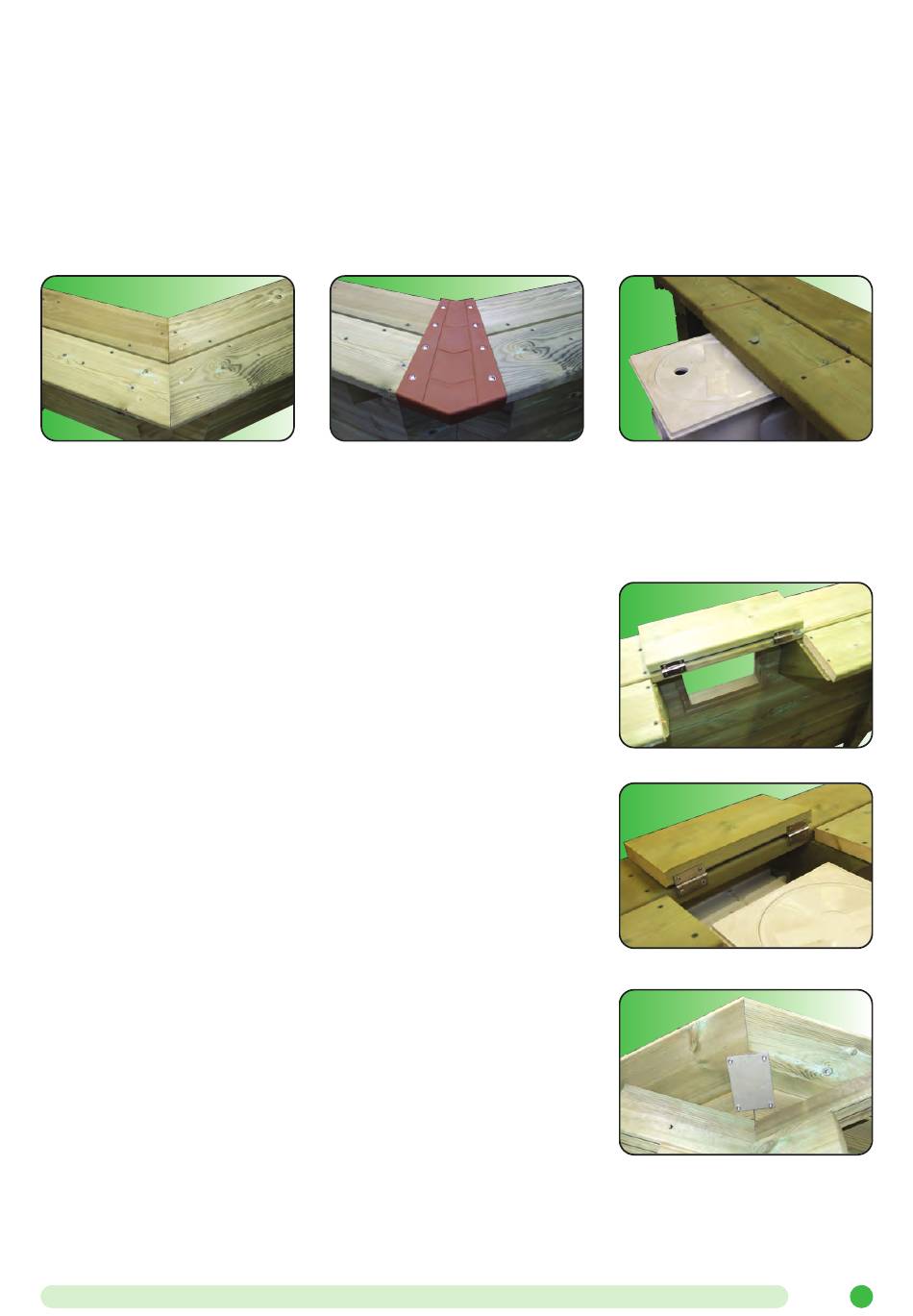

SECTION E: Fitting the Top Shelving

Position the Top Shelving

• The top shelving comes as 16 pieces, 8 inner planks and 8 outer planks.
• Lay the inner planks around the pool, resting them on the pool wall and top shelving brackets.
• The inner planks are designed to slightly overhang the installed liner, ensure that this overhang is consistent all around the pool.
• Lay the outer planks leaving a gap of approximately 4mm between the inner and outer planks
• Take the 8 plastic corner covers and trial fit them in place. Note there is a tab on the underside that determines the spacing
between the inner and outer planks
Figure 47
• It is worth taking time to arrange the inner and outer planks carefully, ensuring they are parallel to each other, the pool overhang
is consistent and they are correctly spaced apart. Above the skimmer
formed, see below.
• It is quite usual to have expansion space at the end of each top shelving plank.
• Temporarily fix each top shelving plank into place by using one screw at each end.

Create Hinged Skimmer Door

• For access to the skimmer a hinged "trap door" needs to be formed
• On the outer plank of the top shelving that passes over the skimmer mark both sides
of each shelving support.
• Remove this top shelving plank and mark positions to cut it. The cuts need to be
positioned so the hinged trap door will rest on about 15mm of either shelving
support. Also position the cut so the non-hinged part of the top shelving can be
screwed to the shelving supports
• Re-position the top shelving plank on the pool to double check the cut positions.
Check that: the skimmer lid will be removable, the main parts of the top shelving can
be screwed to shelving supports and the hinged part will also rest on the shelving
supports
[see figure
50].
• Cut the outer top shelving plank and fix it to the inner plank with the supplied hinges
and screws.
Fix the Top Shelving Corner Brackets
• Locate the 8 stainless steel top shelving corner Brackets, the thirty two M5 x 40mm
bolts and thirty two nyloc nuts.
• The brackets are designed to span all 4 top shelving planks underneath each corner.
One screw goes through each inner plank, and one screw through each outer plank.
• Hold the bracket in position on the underside of the top shelving and trial fit a plastic
corner cover to check it will hide the top shelving conrner brackets fixing bolts.
• Clamp the bracket in position. Using a 5mm drill make a hole upwards through the
top shelving. Countersink the top of this hole and pass a bolt down through the top
shelving and corner bracket making sure that the bolts head does not protrude. Fit
the nut onto the bolt and tighten against the corner bracket
• Check the bracket is still in the right place and repeat for the remaining 7 brackets.
[see figure
48].
Figure 48
[see figure
51].
[see figure
[see figure
[see figure 49]
be aware of the hinged trap door to be
[see figure
50].
52].
47].
Figure 49
Figure 50
Figure 51
Figure 52
