Inateck KTU3FR-5O2I Instruction Manual

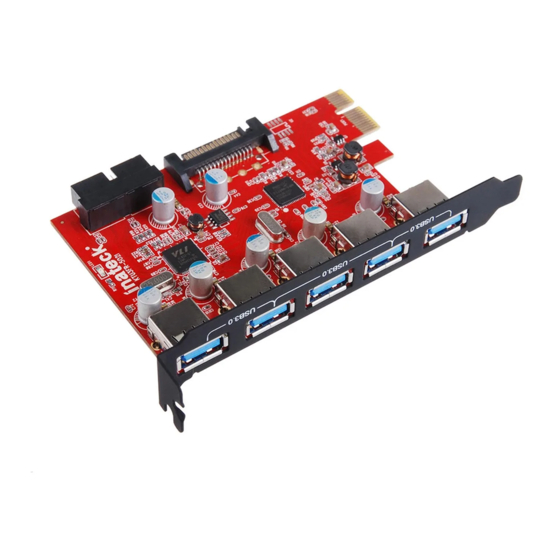

Usb 3.0 pci express card
Hide thumbs Also See for KTU3FR-5O2I:
Table of Contents

Advertisement

Quick Links

USB 3.0
PCI Express Card
Instruction Manual
w w w . i n a t e c k . c o m

Advertisement

Table of Contents
loading

Related Manuals for Inateck KTU3FR-5O2I

Summary of Contents for Inateck KTU3FR-5O2I

  • Page 1 USB 3.0 PCI Express Card Instruction Manual w w w . i n a t e c k . c o m...

  • Page 2: Chapter 1: Introduction

    Chapter 1: Introduction 1.1 Product Introduction Super-Speed USB 3.0 interface is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. with 10 times faster throughput than USB 2.0 standard and backward compatible with current USB device features, USB 3.0 interface will be the trendy of IT technology.
  • Page 3 1.2 Features • Fully compliant with PCI Express Base Specification Revision 2.0 • Single-lane (x1) PCI Express throughput rates up to 5 Gbps • Compliant with Universal Serial Bus 3.0 specification Revision 1.0 • Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices •...

  • Page 4: System Requirements

    1.3 System Requirements • Windows® XP/Vista/7/8 (32/64 bit) • One available PCI Express slot (Recommend PCI Express 2.0) 1.4 Package Contents • 1 x USB 3.0 PCI Express Card • 1 x Driver CD • 1 x User Manual • 1 x SATA to 4 pin Molex Power Converter •...

  • Page 5: Driver Installation

    If you cannot read the contents of the disk, please go to the following address to download the driver according to the product model: http://www.inateck.com/support 1. Insert the provided CD into your disk drive. 2. Run the “Autorun.exe”, click the "Drivers", and select...
  • Page 6 3. Click “OK” and then click “Next” to continue. 4. Please read and accept the license agreement, and then click “Yes” to continue. 5. Select the driver installation path, and then click "Next" to continue. 6. Click "Install" to begin installing the driver, and wait for a moment.

  • Page 7: Hardware Verify

    7. Click “Finish” to end of the driver installations steps. After driver installation is complete, your must restart your computer. Note: We do not provide USB 3.0 driver for Mac and Linux OSs. 2.3 Hardware Verify 1. Click on the “Device Manager” tab in the Windows Control Panel.

  • Page 8: Driver Uninstall

    2. Entry “Universal Serial Bus controllers” item, and you can read “Fresco Logic xHCI(USB3) Controller FL1100 Series” and “Fresco Logic xHCI(USB3) Root Hub” in the Device Manager. 2.4 Driver Uninstall 1. Click on the “Programs and Features” tab in the Windows Control Panel.

  • Page 9: Chapter 3: Troubleshooting Tips

    2. Entry “Uninstall or change a program” page, and double click “Fresco Logic USB3.0 Host Controller” to process driver uninstallation procedure. Chapter 3: Troubleshooting Tips...
  • Page 10 • If card and devices connected to the computer do not seem to be working properly, please perform below basic troubleshooting steps: 1. Check that all cables are correct and securely connected. 2. Make sure USB device’s power is turned on. 3.
  • Page 11 1. Please shutdown your computer and move the card to another available slot then re-install USB 3.0 driver. 2. Please point on this device then right-click on the mouse. Selecting “Update Driver” to renew USB driver. 3. This exclamation point usually means there is a resource conflict between this card and another card in your system.
  • Page 12 Tel: 0341-5199 8407 (Service time: Mon.- Fri. 9:00 - 17:00 PST) Email: support@inateck.com Website: Http://www.inateck.com...
