APT LW39-16N Series Instructions

Cam Switch
Instructions
Before installing the device, please read the instructions.
WARNING
Hazardous voltage
can cause electrical shock and burns
Disconnect power before proceeding
with any work on this equipment
Summary
Main application
LW39-16N switch is also used to control the start, brake,
clockwise and anti-clockwise of small capacity motor and
the speed governing of two-speed motor.
General product information:
Model specification
□ - □ - □
LW 39 - 16 N
① ② ③ ④ ⑤ ⑥
①
Switch type
②
Design number
③
Specification
④ Switch category
⑤
Function code
⑥ Operating characteristics of code
⑦
Relative of nodes or section code
⑧ Stages
⑨ Panel code
⑩
Illuminated code
⑪ Handle style
⑫
Protection grade code
⑬
Auxiliary code
Installation caution
1) We need to check whether the type meet selection requirement.
2) We must turn off power before installation and recondition.
3) Wiring refer to drawing and turn on the power after you check
carefully.
4) Choose the correct operational voltage and current.
5) To prevent impurities metal powder into the product inside.
6) Tighten all terminal screws even if not used.
7) Don't open the parts with red mark.
Technical feature
Parameters
1) Rated insulation voltage(Ui) : 690 V
2) Conventional thermal current(Ith) : 16 A
3) Power frequency withstand voltage : 1890 V / 5 s
4) Mechanical life : 30 X 10
5) Electrical life : AC / 20 X 10
DC / 10 X 10
6) Type of fuse used in test of rated conditional short-circuit
current：NT00-16A
7) The ability of terminals wire:
(1) The largest cross-section: 4 mm²; the maximum number
of conductors connected to the terminal : 2.
(2) The largest cross-section: 1 mm²; the maximum number
of conductors connected to the terminal: 2.
(3) Tightening torque: 1.2 N·m.
8) Usage category
Usage
Ue(V)
24 V
category
Ie(A)
DC-13 -
Ie(A)
AC-15 -
Ie(A)
AC-3 -
Ie(A)
AC-4 -
Ie(A)
AC-21A -
Ie(A)
AC-22A -
Siemens Electrical Apparatus Ltd., Suzhou, Tiantai Branch
Jigong Avenue 699- 10 Tiantai, Zhejiang,China
Sales Dept :Tsidi Building No.55,Lane 777,West Guangzhong Road Shanghai
Tel ： 021-56553757
□ / □ - □ - □ - □ □ - □ - □
··· ···
⑦ ⑧ ⑨ ⑩ ⑪
4
times
4
times
4
times
48 V 110 V 220 V 380 V
- 2.5 A 1.25 A -
- - 12 A 8 A
- - - 12 A
- - - 10 A
- - - 16 A
- - - 16 A
http://www.china-apt.com
Operation condition
1) Environment temperature : -25°C to +55°C
2) Relative air humidity ≤ 90%
3) Altitude ≤ 2000 meters
4) Installation category : Ⅲ
5) Pollution class : 3

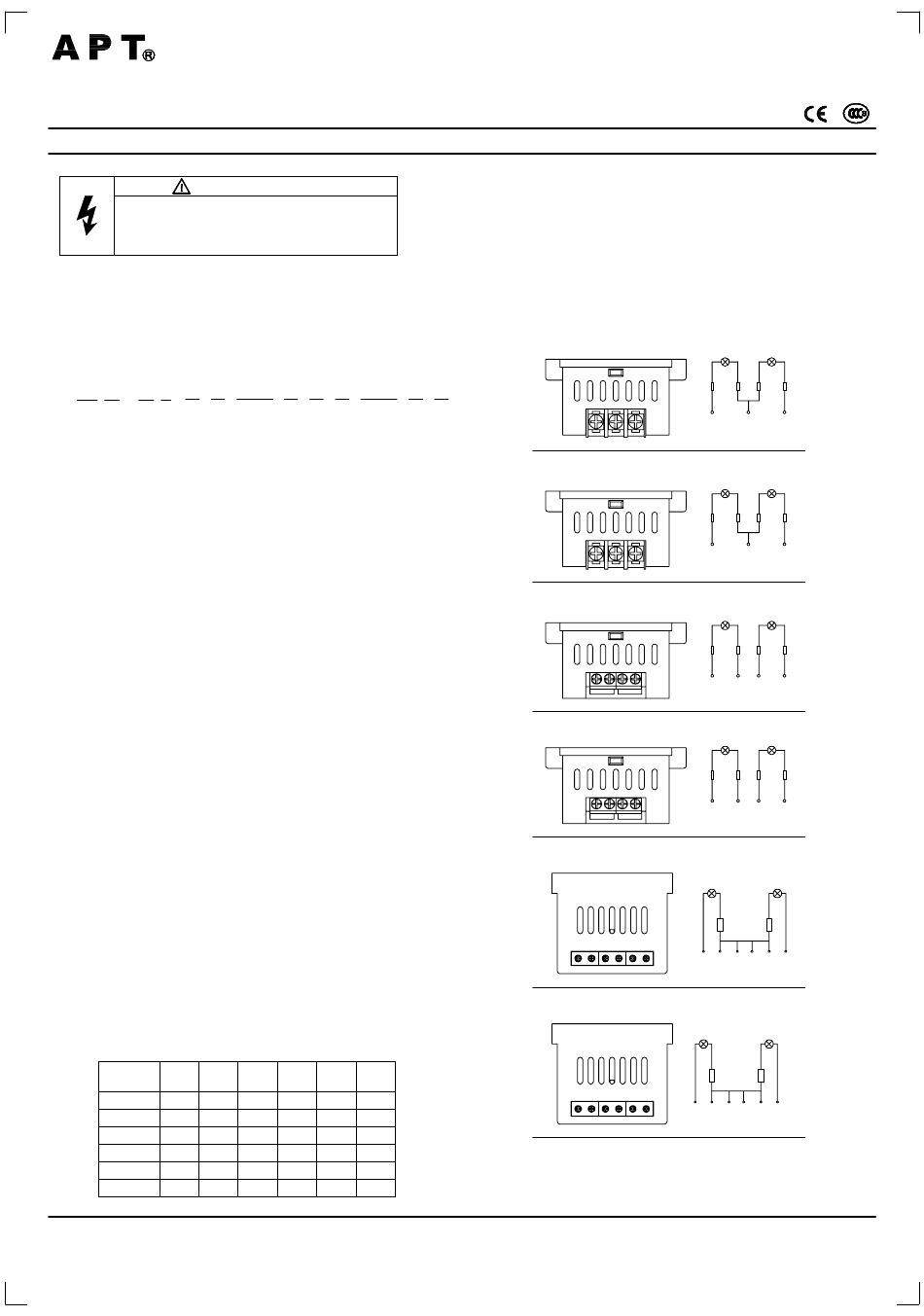

The light box schematic diagram
1) Three terminals
⑫ ⑬
2) Three terminals
3) Four terminals
4) Four terminals
5) Six terminals[The common is anode]
R- C+
6) Six terminals[The common is cathode]
R- C+
Note:Be careful to disassemble or assemble
light box , to avoid damaging them.
LW39-16N
， GB 14048.5
EN60947-5-1
Drawing No. : APT0.463.022.14
[The common is anode]
R R R R
X1 X0 X2
(+) (-) (+)
[The common is cathode]
R R R R
X1 X0 X2
(-) (+) (-)
[There is no common, Intermediate is cathode]
R R R R
X1 X0 X0 X2
(+) (-) (-) (+)
[There is no common, Intermediate is anode]
R R R R
X1 X0 X0 X2
(-) (+) (+) (-)
C+ G-
- -
+ +
C+ G-
- + + -
2017.1 4
