Sistemalux Continuous Line S.7006 Installation Sheet

CONTINUOUS LINE
MODELS: S.7006, S.7001, S.7016, S.7011, S.7012
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WARNING

ALWAYS USE 12" (300mm) OF GRAVEL FOR DRAINAGE
AND VERIFY THAT IT DRAINS WELL OR USE A CONCRET DRAIN
AT THE BOTTOM.
NEVER INSTALL PRODUCTS IN CASE OF FOG RAIN, OR HIGH
HUMIDITY.
CLEAN REGULARLY TO PREVENT SOIL HEAP
ON COVER AND SCREWS.
ALWAYS KEEP SURFACES CLEAN AND UNOBSTRUCTED.
KEEP SURFACES PROTECTED FROM SOIL
AND CHEMICAL ELEMENTS.
FIXTURE CAN BE INSTALLED IN GROUND OR WALL.
NEVER INSTALL THE FIXTURE IN THE CEILING.
USE ONLY FLEXIBLE CABLES (MAX. 14 AWG)

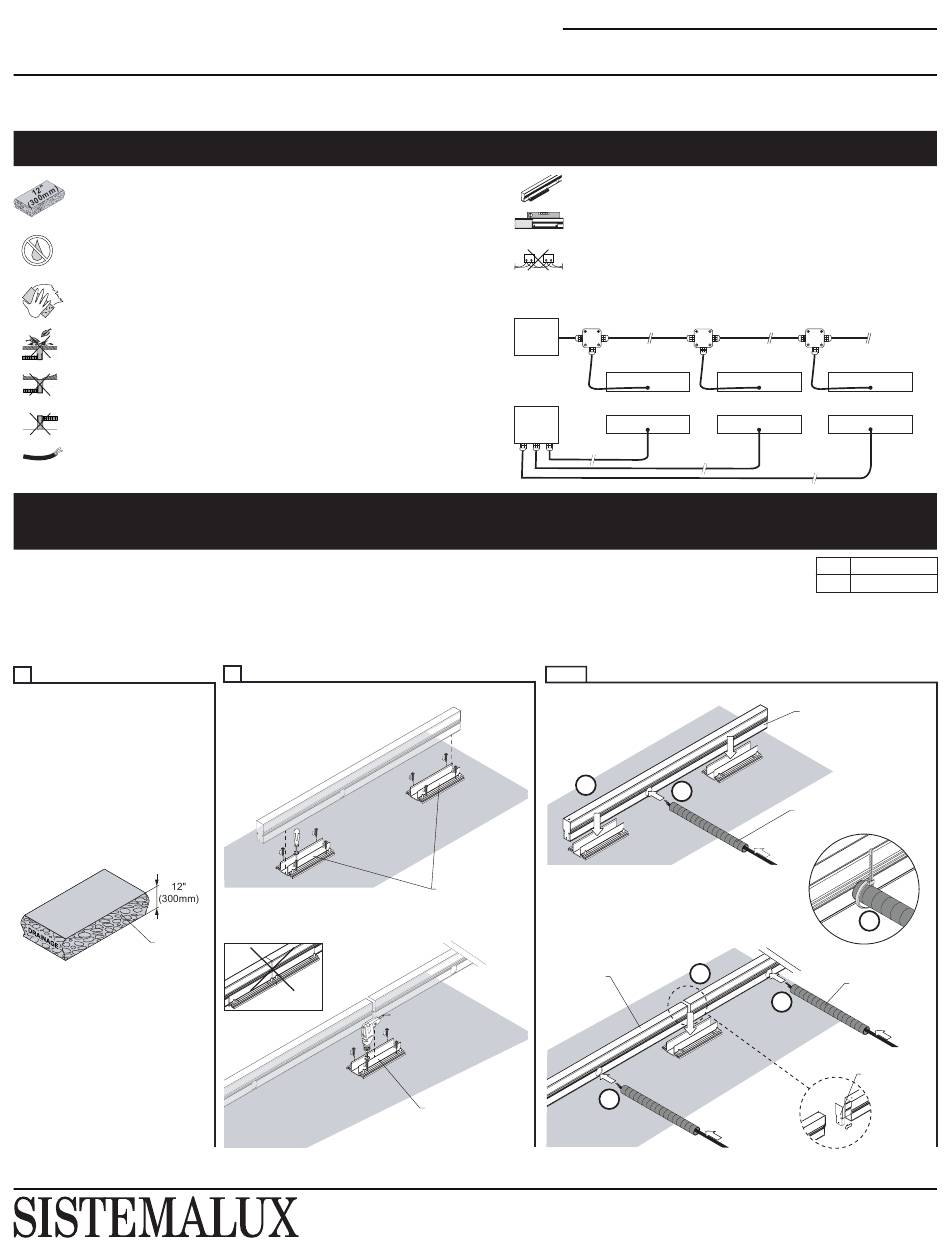

GROUND INSTALLATION IN CONCRETE WITH RECESSED BOX
TO REMOTE DRIVER (24V)
A- INSTALL DRAINING EQUIPMENT.
B- FASTEN MOUNTING BASE USING SCREWS (NOT INCLUDED). *FOR A CONTINUOUS ROW INSTALLATION MAKE SURE
THE MOUNTING BASE IS ALIGNED WITH THE FIXTURES JONCTION.
C- INSTALL RECESSED BOX IN THE MOUNTING BASE. *FOR A CONTINUOUS ROW INSTALLATION TAKE OFF ONE
END CAP AT EACH FIXTURES JONCTIONS, AS SHOWN.
D- CONNECT THE WIRING EQUIPMENT IN THE PRE-PERFORATED HOLE OF EACH RECESSED BOX (FOLLOWING POLARITY MARKING).
A
GRAVEL
INS-272
B
SINGLE FIXTURE
CONTINUOUS ROW*
NO!
INSTALLATION SHEET
ALWAYS USE MOUNTING COMPONENTS.
WHEN INSTALLING SURFACE, MAKE SURE THE FIXTURE IS
PERFECTLY LEVELED WITH THE SURFACE.
NO THROUGH WIRING, USE A CABLE CONNECTION
FOR EACH FIXTURE AS SEEN IN THE WIRING DIAGRAM BELOW.
WIRING DIAGRAM
OPTION 1:
DRIVER
OPTION 2:
DRIVER
C + D
SINGLE FIXTURE
C
MOUNTING BASE
CONTINUOUS ROW*
RECESSED
BOX
D
MOUNTING BASE
RECESSED BOX
D
WIRING
EQUIPEMENT
C
D
LAST UPDATE: MARCH 29, 2018
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 OF 2
- BLACK
+ RED
D
WIRING
EQUIPEMENT
END CAP
EV - R4
