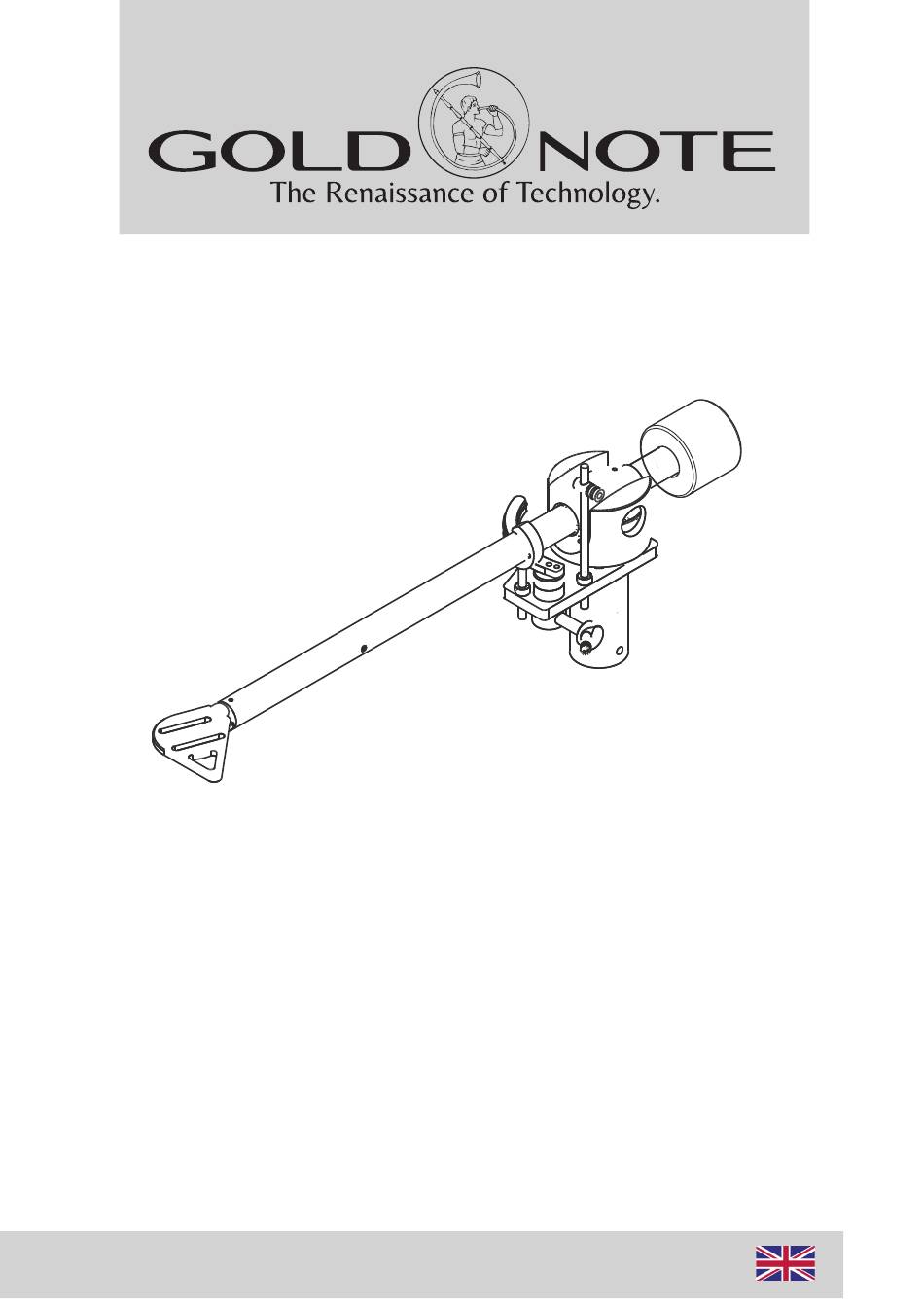

B-5.1
Prestige Italian Tonearm
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the B-5.1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gold Note B-5.1

Summary of Contents for Gold Note B-5.1

  • Page 1 B-5.1 Prestige Italian Tonearm OWNER’S MANUAL...

  • Page 2: Important Safety Information

    Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel.
  • Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.

  • Page 4: Introduction And Features

    15 gram mass. Optionally other extra weights are available to handle phono cartridges with higher mass. The B-5.1 effective length of 242mm with 19mm overhang let the arm easily installed in any turntable available on the market. OWNER’S MANUAL...

  • Page 5: Technical Specification

    Azimuth: adjustable through 2mm hex-bolt on headshell Internal cables: AWG36 Hyper Litz shielded 99,9999% External cable: 1m custom 4 poles DIN/RCA Firenze Phono cable standard Upgrades Special: Gold Note Firenze Phono cable Physical Total length: 315mm Total weight: 350g OWNER’S MANUAL...
  • Page 6 VTA (that requires the cartridge is installed). Below the two examples of Gold Note collar, on the left side the standard GN collar with three 3mm hex bolt to block with the 1,5mm Allen Wrench supplied. On the right side ten the Out of Axis...
  • Page 7 ANTI-SKATE, AZIMUTH & COUNTERWEIGHT ADJUSTMENT - Anti-Skate Nylon Wire with lead stopping spot supplied in the tone arm accessories. - Anti-Skate Nylon Nire arm Cylinder Eye - Anti-Skate Bullet Counterweight - Anti-Skate Bar - Adjusting Lift Bent Bar Hex-Bolt. The Lift Bent Bar can be adjusted loosing the hex-bolt with the 1,5mm Allen wrench supplied in the tone arm accessories.
  • Page 8 ANTI-SKATE, VTA & HEADSHELL AZIMUTH Setup CYLNDER EYE VTA SETUP Insert the supplied anti-skate weight Loose the indicated Hex-bolt of the arm (3)[see previous page] into the collar with the 1,5mm Allen Wrench sup- anti-skate Nylon then pass the Nylon plied in the tone-arm accessories, to lift Wire through the micro hole of the and down the arm...
  • Page 9 WARRANTIES WARRANTIES REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused.
  • Page 10 • Adjust the Azimuth of the HEad-Shell with the supplied 0,9mm Allen Wrench Angle of the arm is as described in the specific chapter of wrong this manual. For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 9...
  • Page 11 USER NOTE OWNER’S MANUAL page 10...
  • Page 12 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
