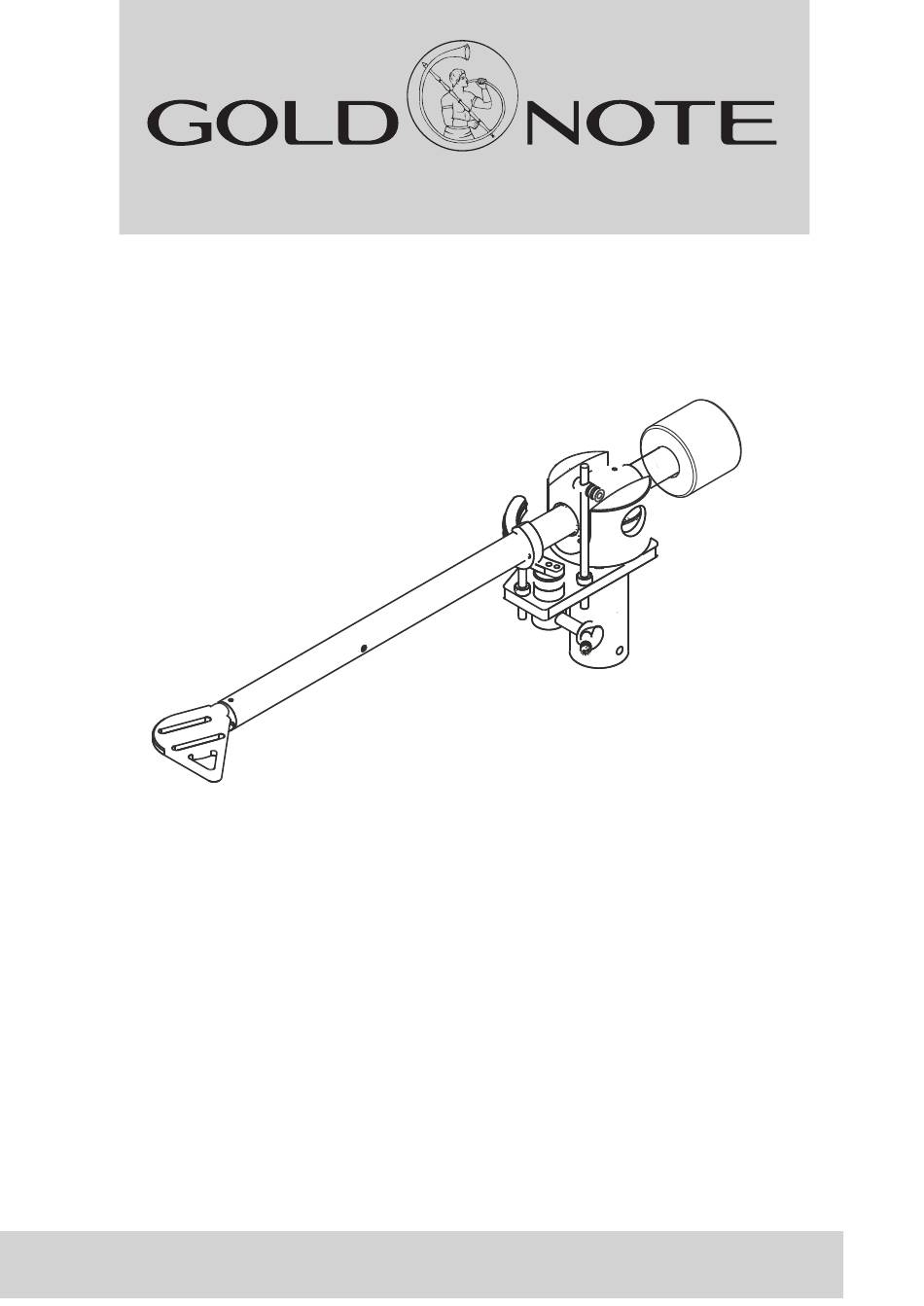

- Page 1 Italian Music Experience B-7 Ceramic High-Precision Tonearm OWNER’S MANUAL...
-
Page 2: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit. This appliance has a serial number located on the rear panel. - Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions and store them. 9 Protect the power cord from being walked on or pinched particularly plugs, convenience 2 Heed all warnings. receptacles, and the point where they exit from the apparatus. 3 Follow the instructions. 10 Only use attachments/accessories specified by the 4 Do not use this apparatus near water.
-
Page 4: Description And Specifications
B-7 Ceramic effective length of 242mm with 19mm overhang makes it easy to install on any turntable. The Azimuth is adjustable through a pair of 2mm micro bolts to set up the shell perfectly. - Page 5 DESCRIPTION & SPECIFICATIONS SPECIFICATIONS Typology: 9” Ball Bearing Tonearm Effective length: 242 mm Overhang: 19mm Offset: 24° Arm wand: Titanium with variable thickness (6 different sections) Shaft: 23mm Dynamic effective mass: 10g VTF: 0.186N (19g) VTA: adjustable on collar Lift: hydraulic and adjustable Anti skating: wire Azimuth: adjustable using the 2mm hex-bolts on the headshell CABLES...
-
Page 6: Installation
Insert the tonearm into the arm collar on the turntable and block it with the hex-bolts on the collar while adjusting the VTA (requires the cartridge to be already installed). See the images below in case you are using a Gold Note collar, otherwise refer to the User's Manual of the collar you are using. - Page 7 OVERVIEW & ANTI-SKATING 1 - ANTI-SKATING nylon wire with bullet counterweight - ANTI-SKATING support hoop - ANTI-SKATING adjustment bar - TONEARM COUNTERWEIGHT: to set up the correct tracking force depending on the phono cartridge in use - SHELL AZIMUTH ADJUSTMENT: to adjust the alignment of the tonearm head-shell (0,9mm Allen Wrench) INSTALLING THE ANTI-SKATING SYSTEM 1 - Slip the loop of the ANTI-SKATING nylon wire over the groove of the ADJUSTMENT BAR 2 - Feed the wire through the loop of the SUPPORT HOOP...
- Page 8 VTA & AZIMUTH VTA SETUP Loose the Hex-bolt indicated by the arrow on the collar using the 1,5mm Allen Wrench supplied to lift up or down the arm correctly adjusting the VTA as necessary. AZIMUTH After the cartridge has been properly installed on the tone arm, adjust the Azimuth of the shell with the supplied 0,9mm Allen Wrench.
-
Page 9: Warranty And Service
WARRANTY & SERVICE WARRANTY To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: www.goldnote.it/warranty If the unit is not registered correctly or has been purchased from a different country of the purchaser home address the unit will not be covered by any warranty and the registration will be refused. -
Page 10: Faq And Troubleshooting
• Adjust the Azimuth of the HEad-Shell with the supplied 0,9mm Allen Wrench Angle of the arm is as described in the specific chapter of wrong this manual. For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL... - Page 11 NOTE OWNER’S MANUAL...
- Page 12 Italian Music Experience www.goldnote.it...
