Digi AccelePort r Series Hardware Installation Manual

What Next?
At this point the hardware installation for your AccelePort 2r 920 host
adapter is complete. However, since the adapter must have software
downloaded to its RAM before it becomes functional, you must next
install the software drivers for your operating system.
• Read the instruction booklet for the CD-ROM that came with your
adapter for instructions on installing software.
• View the on-line documentation on the CD-ROM for more informa-
tion about AccelePort products.
The Digi logo and AccelePort are registered trademarks of Digi International. Xr 920 and 2r
920 are trademarks of Digi International.
All other brand and product names are trademarks of their respective holders.
© Digi International Inc., 1998
All Rights Reserved
http://www.dgii.com
Information in this document is subject to change without notice and does not represent a
commitment on the part of Digi International.
Digi provides this document "as is", without warranty of any kind, either expressed or
implied, including, but not limited to, the implied warranties of fitness or merchantability
for a particular purpose. Digi may make improvements and/or changes in this manual or in
the product(s) and/or the program(s) described in this manual at any time.
This product could include technical inaccuracies or typographical errors. Changes are peri-
odically made to the information herein; these changes may be incorporated in new editions
of the publication.
91000734 A
AccelePort
Installation Guide
Introduction
® ™
An AccelePort Xr 920 host adapter easily expands the number of
EIA-232 ports available on your computer, allowing you to attach addi-
tional peripheral devices, such as modems, ISDN terminal adapters, or
serial printers, directly to your computer.
As shown in the figure below, a 2r 920 host adapter has two connectors,
each providing an EIA-232 peripheral port connection.

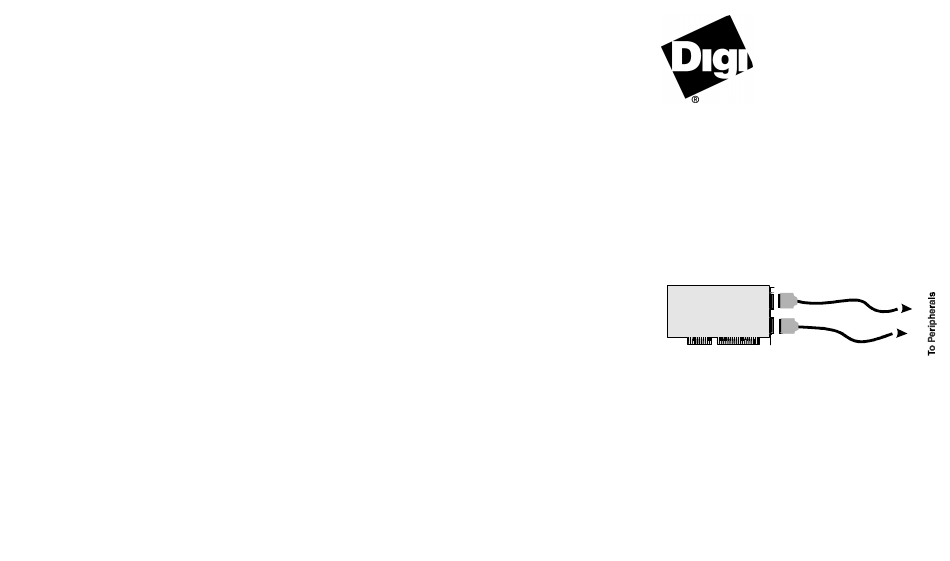

Figure 16. Example 2r host adapter
This installation guide describes how to plan your setup and install an
AccelePort 2r 920 host adapter..
Xr Family:
2r 920
PCI Host Adapter
EIA-232
Hardware
