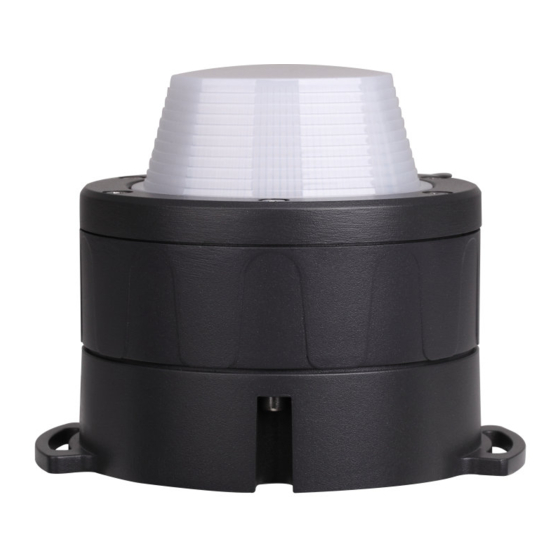

THIS MOUNTING GUIDE APPLIES TO THE FOLLOWING PROPOINT PIXEL MODELS:
ProPoint Pixel – Flat Lens (Clear or Diffused)
ProPoint Pixel – Drum Lens (Diffused)
This mounting guide uses the following special statement categories to alert
you to key items:
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE
Indicates information considered important for the proper operation of the product but not
hazard related.
Please review this manual completely prior to beginning the installation process and take
note of the following:
• The ProPoint luminaire and associated accessories must be installed by a qualified person
in conjunction with all applicable electrical codes and standards.
• The ProPoint luminaire does not contain any user-serviceable parts. Opening of the
luminaire will void the warranty.
• Do not use the product if the cables are damaged.
• Handle the luminaire carefully to prevent damage during installation. Rough handling may
damage the internal electronics and void the warranty.
• Do not attempt installation in wet or severe weather conditions.
• Do not stare directly into the light beam while the unit is illuminated.
• IP66 rated. The ProPoint luminaire is not suitable for direct immersion in water.
• Do not operate the ProPoint luminaire without a connection to earth ground.
• The ProPoint luminaire is designed for operation at 120-277V
range may damage the fixture and will void the warranty.
• The ProPoint luminaire housing may become hot during normal operation and present
a risk of burn injury and fire hazard. Exercise caution when working in proximity to the
luminaire and make sure that combustible material does not contact the housing or lens.
• Failure to keep the luminaire within the operating temperature range (-30°C to +55°C/
-22°F to +131°F) will result in improper operation and will void the product warranty.
• Do not use harsh chemicals, cleaning solvents or strong detergents when cleaning the
luminaire.
www.traxontechnologies.com
www.osram.us/traxon
©2020 TRAXON TECHNOLOGIES – AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON
PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Mounting Guide
ProPoint Pixel – Dome Lens (Diffused)
ProPoint Pixel – Prism Lens (Diffused)
. Voltages outside of this
ac
PLEASE READ THIS MOUNTING GUIDE COMPLETELY BEFORE BEGINNING THE
INSTALLATION PROCESS.
AN UPDATED INSTALL GUIDE MAY BE AVAILABLE THAT SUPERSEDES THIS
VERSION. THE MOST CURRENT RELEASE MUST BE USED BY THE INSTALLER.
For All Models:
Weight. . . . . . . . . . . . . . . . . . . . 1.4Kgs (3.09Lbs)
Power Consumption (Nominal) . . . . . . . . . . . . . . .20W
Power Factor . . . . . . . . . . . . . . . . . Greater Than 0.9
Input Voltage Range . . . . . . . . . . . . 120-277V
Operating Temperature . . . . . . . -30°C to +55°C (-22°F to 131°F)
Minimum Starting Temperature . . . . . . . . . . . -20°C (-40°F)
Additional product information is available on the Traxon web site:
www.osram.us/traxon & www.traxontechnologies.com
For additional support, please contact the following:
For Americas Regional Support
(978) 570-3189 – Business Hours Technical Support
(347) 556-3241 – After Hours Technical Support
TRXTechSupport2@osram.com
For Asia Pacific Regional Support
info@traxontechnologies.com
For Europe, Middle East and Africa Regional Support
info@ecue.com
support@ecue.com
AND TX CONNECT
®
ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U.
7/20 V1
P r o P oin t P ix e l
M o u n ti n g G u ide
50/60HZ
ac
1 of 6
