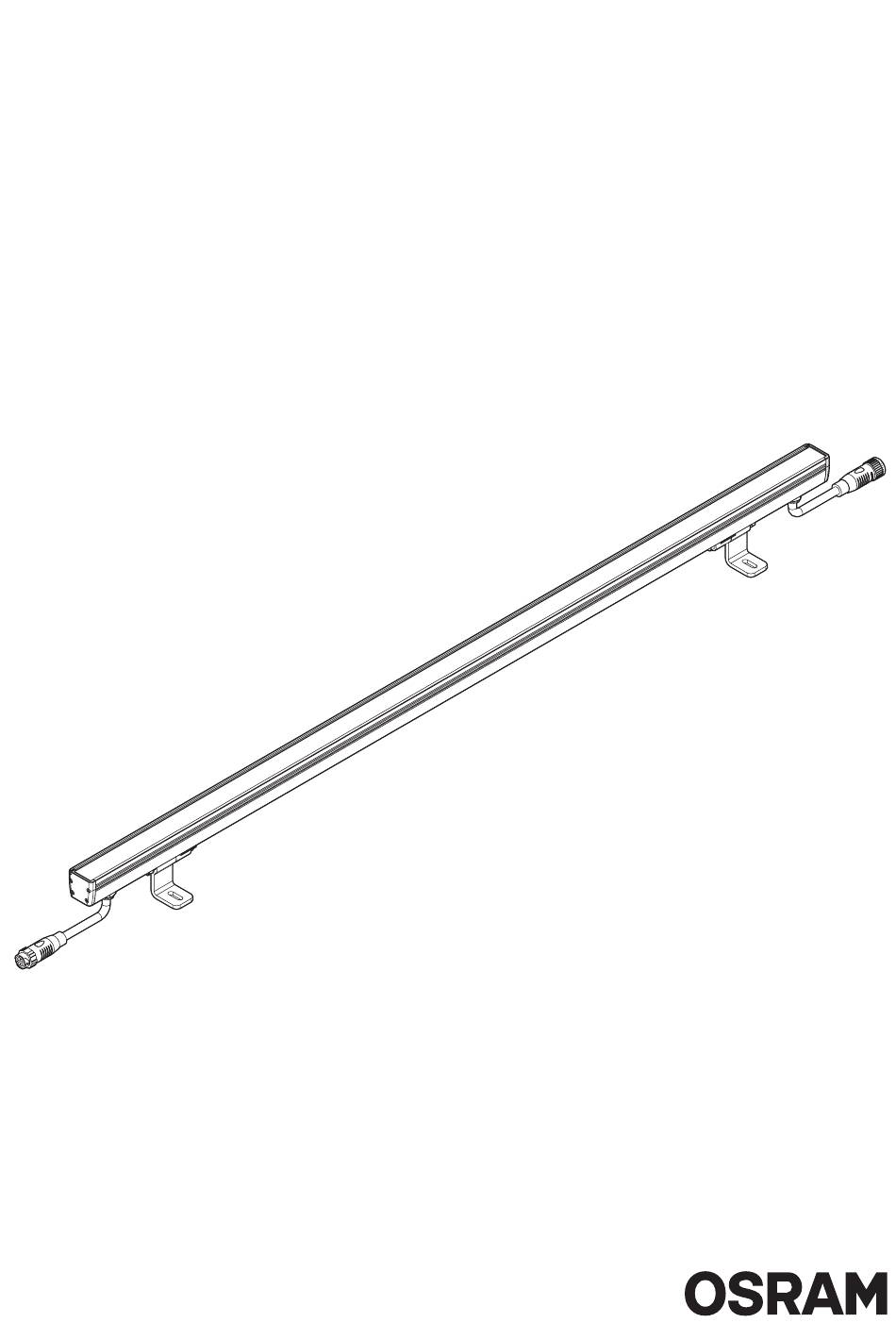

- Page 1 ARCHISHAPE 2.0 Linear MINI ® • Please read instruction carefully before assembling and installation • Please keep instruction as reference in the future...
- Page 2 ARCHISHAPE 2.0 Linear MINI ® 300mm 500mm 31mm 73mm 29mm 44mm 1000mm Rated Input Maximum Weight Rated voltage power current projected area 0.13 300mm 0.015 0.25 0.17 500mm DC 24 0.025 0.38 0.42 1000mm 1200 0.05 0.71 Max. connected qty. (1.5mm master cable) Rated power...
- Page 3 ARCHISHAPE 2.0 Linear MINI ® 6x35mm 300mm 100mm 500mm 300mm 1000mm 800mm 90° 90° “click”...
- Page 4 ARCHISHAPE 2.0 Linear MINI ® Brown: DC24V + Blue：DC24V – Label ASL 2-pin DC Power Starter Cable 600 CE ASL 2&3-pin Connector Socket End Cap CE EAN 4062172024686 EAN 4062172026673 the outside rubber cover cant move under 120N pull force ASL 2-pin DC Interconnection CAB 1000 CE EAN 4062172024693 ASL 2-pin DC Interconnection CAB 3000 CE...
- Page 5 ARCHISHAPE 2.0 Linear MINI ® Handle the fixture with care. Do not pull or handle the lead cables and connectors. After connecting the cables, tangle up with water-proof tapes for extra protection.
- Page 6 2m is not expected. IEC 60598-1:2014 IEC 60598-1:2014/AMD1:2017 IEC 60598-2-1:1979 IEC 60598-2-1:1979/AMD1:1987 OSRAM CHINA LIGHTING LTD. OSRAM (Malaysia) Sdn Bhd OSRAM Lighting Pte Ltd. No. 1 North Industrial Road, Foshan, (Company No: 491867 X)
