Remote Control Systems ALPHA-3 Instructions Manual

P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
E mail:

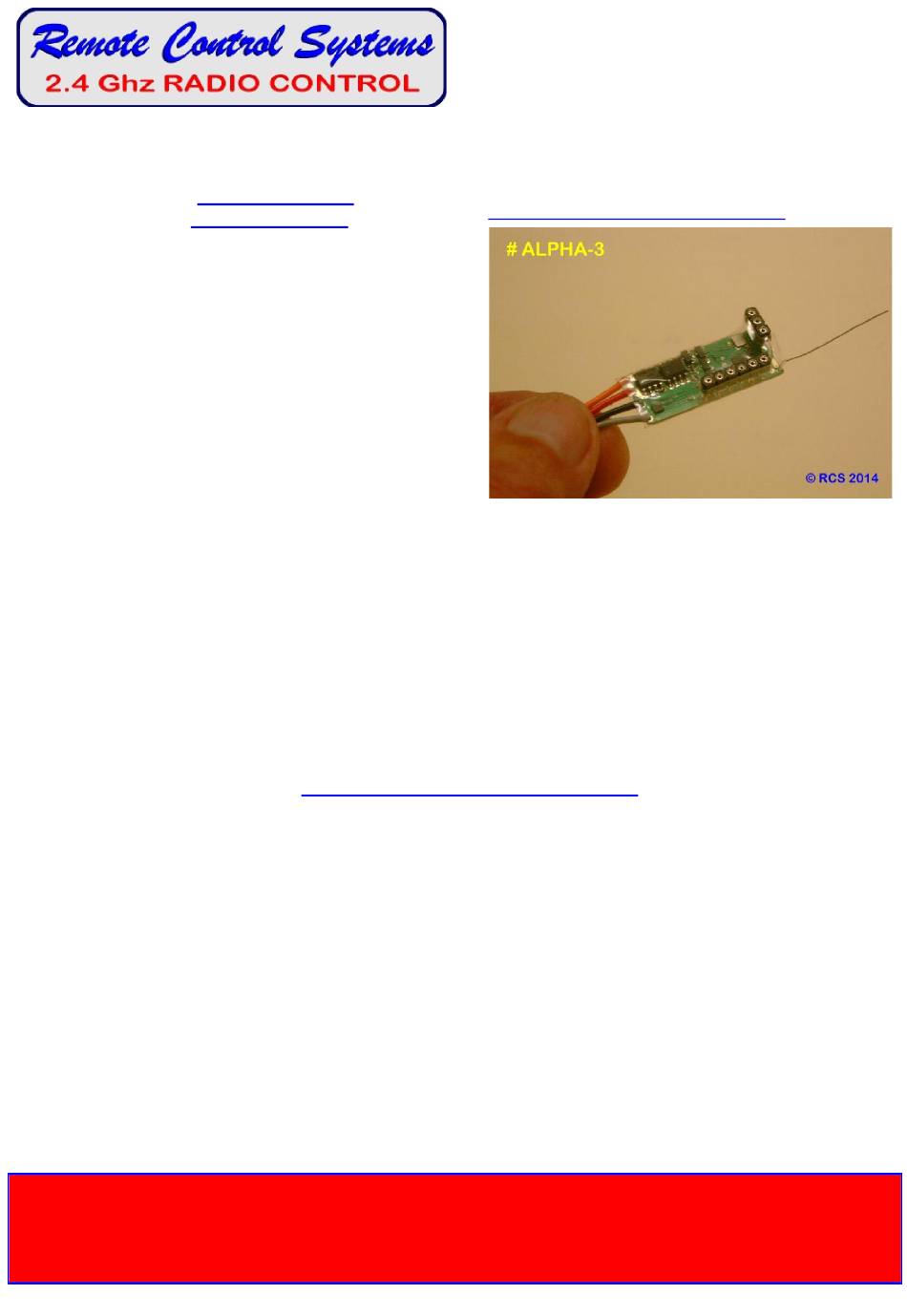

ALPHA-3
(DELTANG DSM2 R/C Rx65-2).
Electronic Speed Controller
Supplied as:
Version "A" Ch # 5 triggers pad # 3.
Ch # 4 (low) triggers pad # 4.
Version "B" Ch # 2 (low) triggers pad # 3.
Ch # 4 (low) triggers pad # 4.
Thank you for purchasing this Microprocessor based Electronic Speed Control
THIS NEW SYSTEM CAN USE ANY DSM2 R/C WITH 4 OR MORE CHANNELS.
THE RCS
THE SYSTEM IS READY TO USE AS IS, ONCE THE RX IS "BOUND" TO THE TX.
THE # ALPHA-3
THIS IS ONE OF THE MANY FEATURES WITHIN THE SYSTEM WHICH CAN BE RE-PROGRAMMED.
USERS CONTEMPLATING ALTERING THE OPERATING CHARACTERISTICTS SHOULD THOROUGHLY
READ UP ON HOW TO DO SO
THEY HAVE CONSTANT BRIGHTNESS DIRECTIONAL LIGHTS & 2 x SOUND TRIGGERS.
TAKE INTO ACCOUNT FULLY CHARGED BATTERIES CAN & DO EXCEED THE
VOLTAGE DROP FROM IN – OUT IS ABOUT ½ A VOLT UNDER A LIGHT LOAD.
We tested this system three times during manufacture. It was working normally when it left the factory.
If damage in transit has occurred, please return to place of purchase for attention.
THIS ESC IS GUARANTEED FOR ONE YEAR.
You will supply the DSM2 2.4 Ghz 4 channel (or more) Digital Proportional R/C TX handpiece.
You will also supply a locomotive or trail car, the 5 – 18 volt traction batteries, a fuse,
ON-OFF switch and wires where necessary, to connect the ESC to the battery and motor(s).
Where soldering is necessary, we recommend a low wattage soldering iron and resin core solder.
WE SUGGEST YOU MARK THE TX TO SHOW WHICH LOCO IT OPERATES.
DO NOT ATTEMPT TO ALTER THE TUNING OF THE RADIO EQUIPMENT.
CHILDREN UNDER 12:
http://rcs-rc.com
Info@rcs-rc.com
INSTRUCTIONS.
# ALPHA-3 SYSTEM IS IN ONE PART. THERE IS A BUILT IN 2.4 Ghz RX.
SERVO LEADS ARE NOT NEEDED.
THE # ALPHA-3
USES A "LOW OFF" CONTROL METHOD. THIS CAN BE CHANGED TO "CENTRE OFF".
http://www.deltang.co.uk/rx65a-v610-p.htm
IF YOU MESS IT UP WE CAN FIX IT FOR THE COST OF POSTAGE.
DO NOT CONNECT TO MAINS POWER (110 – 240V AC).
THE # ALPHA-3
USE 5v – 18v ABSOLUTE MAXIMUM
DO NOT USE RADIO CONTROL EQUIPMENT IN THUNDERSTORMS.
ADULT SUPERVISION RECOMMENDED DURING USE.
PROVIDED IN INSTRUCTIONS.
Page # 1 Introduction.
Page # 2 Installing the #
Page # 3 Operating the #
Page # 4 Setting up the system. Binding the RX.
PLEASE NOTE. PDF WIRING INSTRUCTIONS ARE HERE:
http://www.rcs-rc.com/pages/instructions
IS A REPRAMMED DELTANG R/C Rx65-2.
BEFORE ATTEMPTING TO MAKE CHANGES:
CAN BE USED WITH BATTERY POWER ONLY.
FOR THE # ALPHA-3.
CAUTION
TABLE OF CONTENTS
ALPHA-3
ALPHA-3
(ESC)
NOMINAL
ESC.
ESC.
R/C system.
VOLTAGE.
