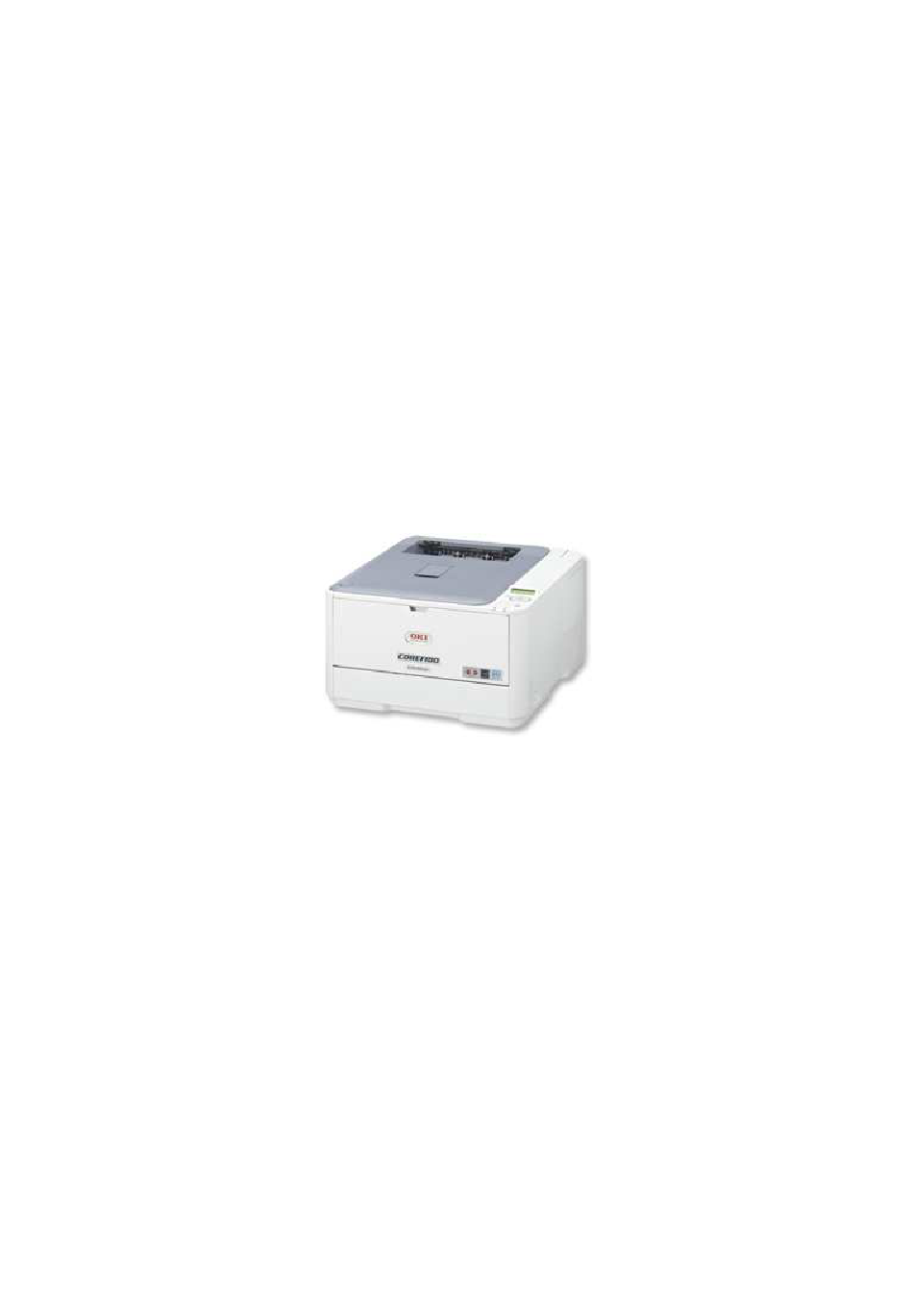

- Page 1 C310/C330/C510/C530 How to remove Jammed Paper C310/C330/C510/C530 How to remove Jammed Paper Rev 1.0 2010-07-07 <1> © Copyright 2010 Oki Data Corporation...
-
Page 2: Table Of Contents
C310/C330/C510/C530 How to remove Jammed Paper CONTENTS Error Message of Paper Jam (Displayed on LCD panel) ..........3 Media path......................3 Clearing Media Jams .................... 4 Error code: 370, 371 or 372.................. 4 Error code: 380, 381, 382, 385 or 389 ..............5 Error code: 390 .................... -
Page 3: Error Message Of Paper Jam (Displayed On Lcd Panel)
C310/C330/C510/C530 How to remove Jammed Paper Error Message of Paper Jam (Displayed on LCD panel) CODE # Operator panel display CHECK UNDER BELT 370:PAPER JAM CHECK UNDER BELT 371:PAPER JAM CHECK UNDER BELT 372:PAPER JAM OPEN TOP COVER 380:PAPER JAM... -
Page 4: Clearing Media Jams
C310/C330/C510/C530 How to remove Jammed Paper (4) Place a finger behind the belt unit lock levers (blue) and raise and Clearing Media Jams remove it. Error code: 370, 371 or 372 (1) Press the OPEN button and open the top cover. -
Page 5: Error Code: 380, 381, 382, 385 Or 389
C310/C330/C510/C530 How to remove Jammed Paper (7) Turn the lock levers inwards to lock the belt unit. (10) Install the image drum unit in the printer so as to situate the K toner cartridge toward the front of the printer. - Page 6 C310/C330/C510/C530 How to remove Jammed Paper (2) Take out the image drum unit, place it on a flat surface, and cover it with black Pull out toward the front of the printer any paper jammed at the fuser unit, with paper.
-
Page 7: Error Code: 390
C310/C330/C510/C530 How to remove Jammed Paper (4) Install the image drum unit in the printer so as to situate the K toner cartridge Error code: 390 toward the front of the printer. (1) Press the OPEN button and open the top cover. -
Page 8: Error Code: 392
C310/C330/C510/C530 How to remove Jammed Paper (2) Remove paper. Error code: 392 (1) Pull the tray 2 out of the printer. (3) Insert the tray 1 back into the printer. (2) Remove paper. (4) Press the OPEN button and open and close the top cover. -
Page 9: Error Code: 409
C310/C330/C510/C530 How to remove Jammed Paper (4) Press the OPEN button and open and close the top cover. (3) Remove any jammed paper in the direction of the arrow. Remove in the direction of the arrow any paper jammed the inside front of the printer. - Page 10 C310/C330/C510/C530 How to remove Jammed Paper (4) Move the fuser unit lock levers to the direction of the arrow to unlock the fuser unit, and then remove the fuser unit. (5) Place a finger behind the belt unit lock levers (blue) and raise and remove it.
- Page 11 C310/C330/C510/C530 How to remove Jammed Paper (10) Turn the lock levers inwards to lock the fuser unit. (11) Install the image drum unit in the printer so as to situate the K toner cartridge toward the front of the printer.
