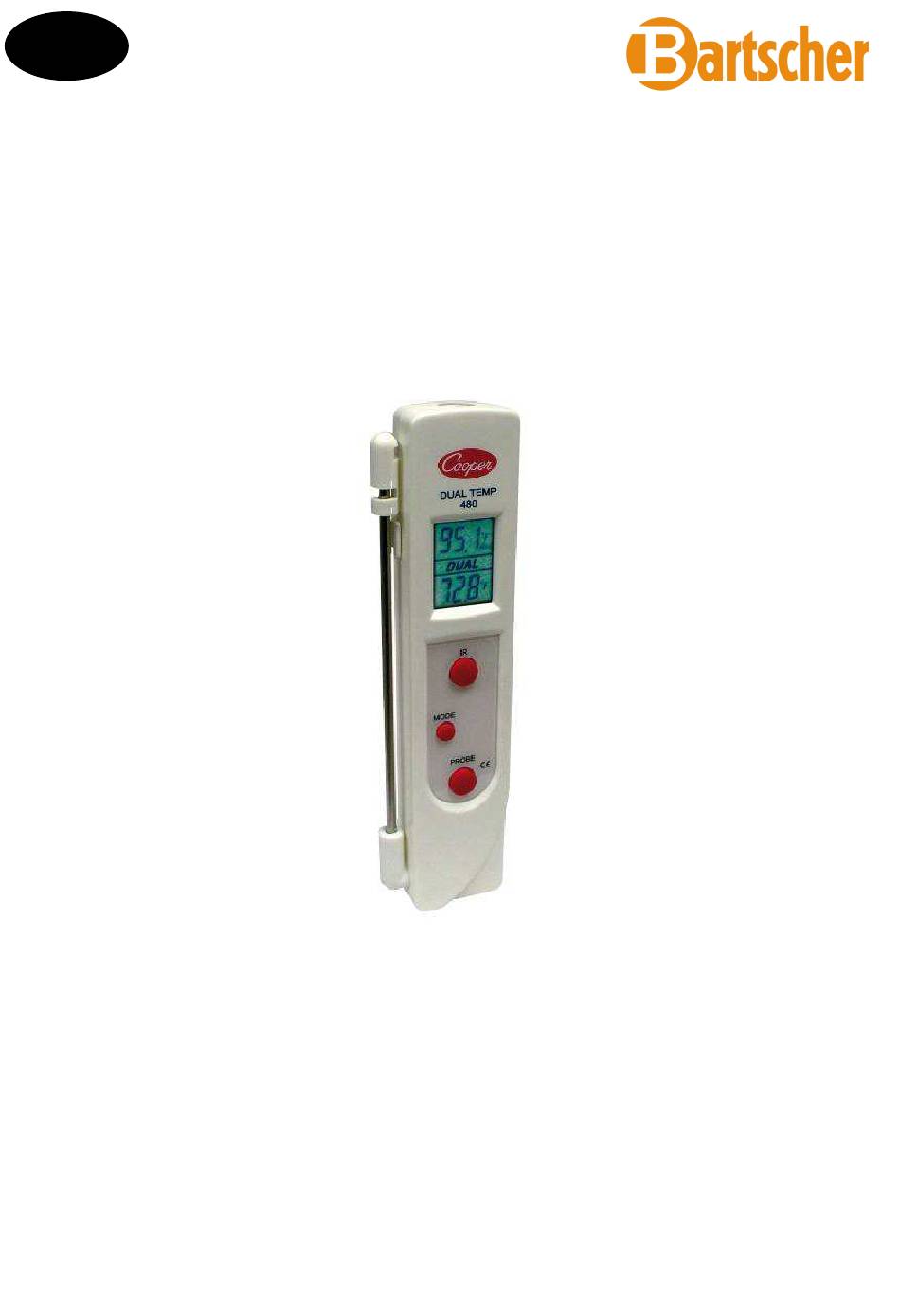

- Page 1 GB/UK Thermometer 480 infrared, for measuring surface temperature and internal temperature 292.480...
- Page 2 Description on back of packaging • IR measurement range: -27 to 428°F (-33 to 220°C) • Precision: ±4°F (2°C) or ±2% of measurement depending on greater value • Emission strength: 0.95 factory setting, set at intervals of 0.1 up to 1 •...

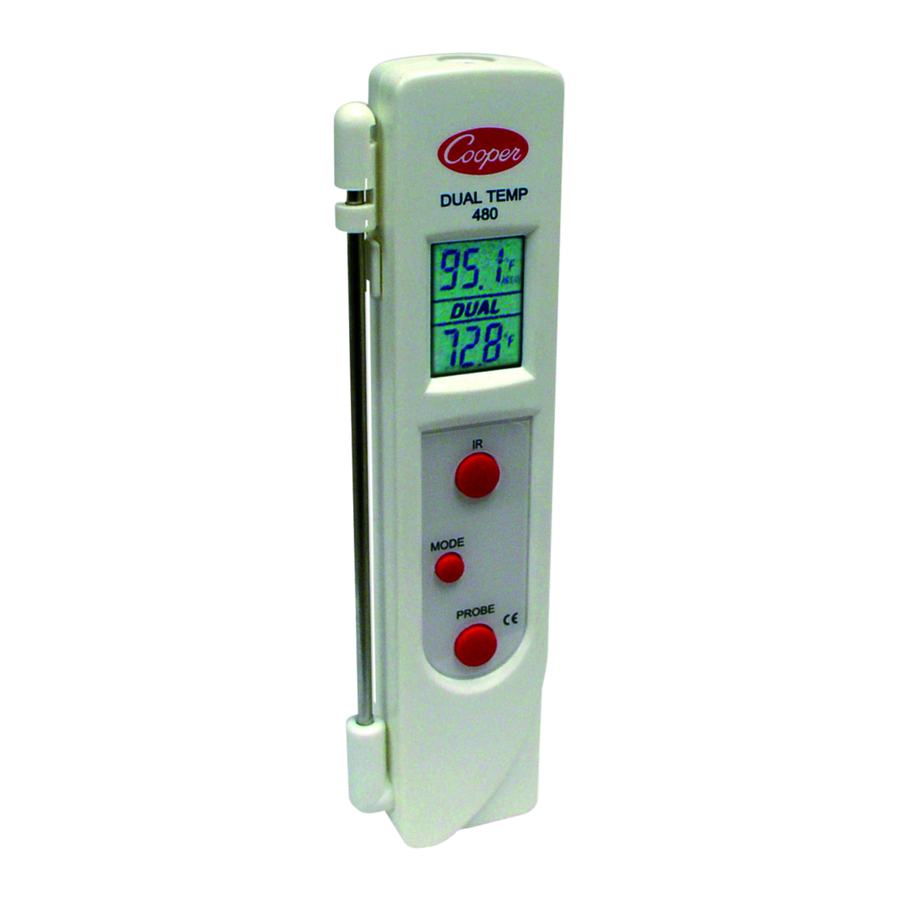

- Page 3 ③ Infrared Lens ⑧ Clip ④ Infrared ① Needle sensor measurement ⑤ Needle measurement ⑥ Begin ② Mode measurement (infrared) ⑦ Begin measurement (needle sensor) Instructions for use The thermometer is a touch-free infrared thermometer equipped with a needle thermal sensor. It can only function in one mode at a time, but those modes can be switched as desired.
- Page 4 Infrared touch-free thermometer function (IRT mode) Set the thermometer using ③ on the object being measured and press button ⑥ to display the surface temperature. The proportion of distance to target is 1:1. This is why the thermometer should be held as close as possible to the object being measured.
- Page 5 EMISSION STRENGTH The infrared thermometer comes factory preset at an emission strength of 0.95. This value can be changed by 0.10 (10E) up to 1 (100E). These changes can be made only by specially-trained personnel. Information concerning emission levels of particular materials can be received from your local sales agent. Tip: The touch-free infrared thermometer should not be used for measuring temperatures of shiny or polished metallic surfaces.
- Page 6 ERROR MESSAGES- LCD The thermometer displays the following diagnostic messages: "Hi" or "Lo" is displayed when the measured temperature exceeds the unit’s range. “Hi” if the temperature exceeds +428°F (+220°C) and "Lo" if it falls below -27°F (-33 °C) (both in touch-free infrared mode) (In “touch needle sensor mode”...
- Page 7 Measurements and readings can be affected if the unit is used in the vicinity of strong, high-frequency electromagnetic fields (e.g. radio frequencies) with a field strength of approx. 3 Volts/m, but this has no long-term effect on the measurement strength. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0...
