BLEMO ER23 Communication Variables Manual

BLEMO ER23 Communication Variables Manual

Variable speed drives for asynchronous motors

Advertisement

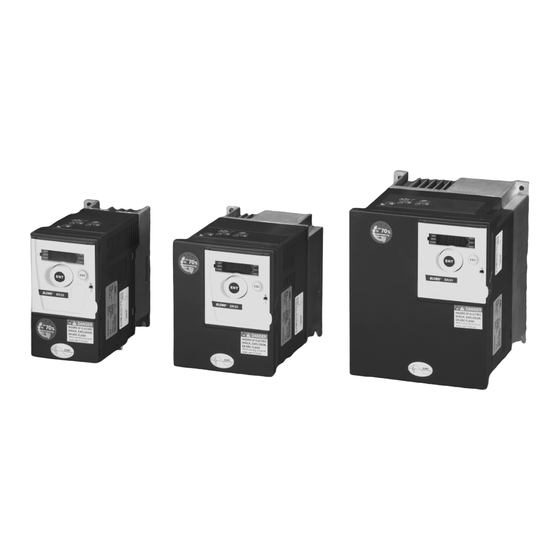

ER23
Variable speed drives for asynchronous motors

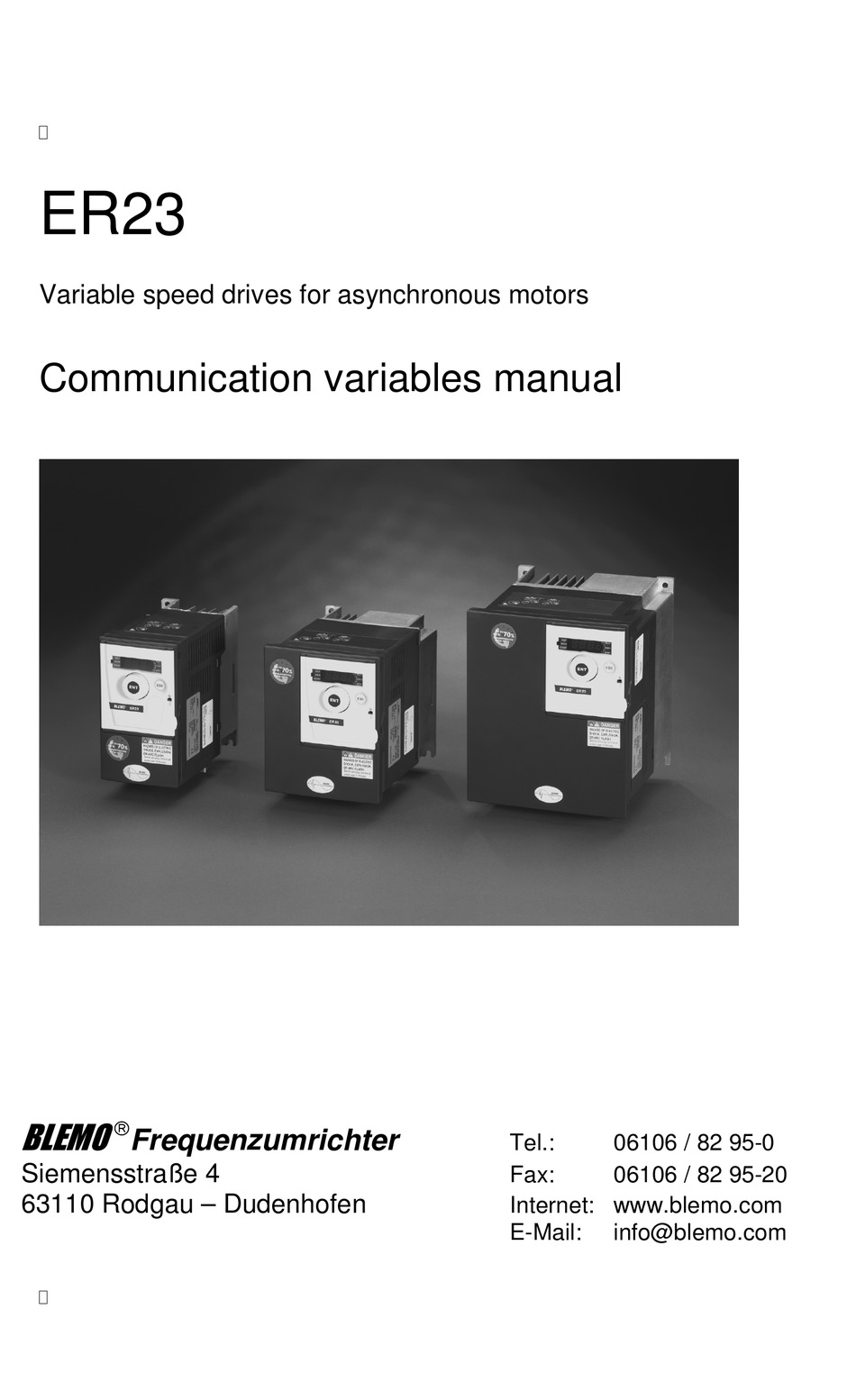

Communication variables manual
BLEMO
Frequenzumrichter
Siemensstraße 4
63110 Rodgau – Dudenhofen
Tel.:
06106 / 82 95-0
Fax:
06106 / 82 95-20
Internet: www.blemo.com
E-Mail:
info@blemo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER23 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLEMO ER23

  • Page 1 ER23 Variable speed drives for asynchronous motors Communication variables manual  BLEMO Frequenzumrichter Tel.: 06106 / 82 95-0 Siemensstraße 4 Fax: 06106 / 82 95-20 63110 Rodgau – Dudenhofen Internet: www.blemo.com E-Mail: info@blemo.com...
  • Page 3: Table Of Contents

    Function compatibility ________________________________________________________________________________________ 14 IEC 61800-7 variables ________________________________________________________________________________________ 16 Control variables ____________________________________________________________________________________________ 19 Monitoring variables __________________________________________________________________________________________ 21 Identification variables ________________________________________________________________________________________ 26 Configuration and adjustment variables __________________________________________________________________________ 27 Replacing an ER22 with an ER23 _______________________________________________________________________________ 57 Code index _________________________________________________________________________________________________ 58 Address index ______________________________________________________________________________________________ 63...
  • Page 4: Important Information

    The word "drive" as used in this manual refers to the controller portion of the adjustable speed drive as defined by NEC. Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by BLEMO for any consequences arising out of the use of this product. © 2009 BLEMO. All Rights Reserved.
  • Page 5: Before You Begin

    - Measure the voltage of the DC bus between the PA/+ and PC/– terminals to ensure that the voltage is less than 42 Vdc. - If the DC bus capacitors do not discharge completely, contact your local BLEMO representative. Do not repair or operate the drive •...
  • Page 6: Documentation Structure

    Documentation structure The following ER23 technical documents are available on the BLEMO website (www.blemo.com). Installation manual This manual describes how to install and wire the drive. Programming manual This manual describes the functions, parameters and use of the drive terminal (integrated display terminal, optional graphic display terminal and optional remote terminal).
  • Page 7: Presentation

    Presentation The ER23 can be connected directly to Modbus and CANopen buses by means of an RJ45 connector, which supports both protocols. The communication function provides access to the drive’s configuration, adjustment, control and monitoring functions. The "Communication variables" User's Manual defines the drive control processes and the drive variables which can be accessed by these buses.
  • Page 8 In line mode, stop requests which can be activated by the terminals or by the remote display terminal have priority: Type of stop From Drivecom state Actions for restoring control of the ER23 using the fieldbus reached Fast stop LI2 to LI6 "Operation enabled"...
  • Page 9: Communication Bus Monitoring

    Communication bus monitoring In the event of loss of communication the drive behaviour can be configured via the "SLL" or "COL" parameters (page 53). This configuration is saved if the power supply is disconnected. In its factory setting, loss of communication triggers a detected fault (COF, CNF, SLF) with freewheel stopping.
  • Page 10: Supervision And Control In Line Mode

    All states chart MSK - ETA masked by 16#006F Detected IEC 61800-7 drive status fault Drive status applied to ATV Drive status applied to ER23 Malfunction Not ready to switch on MSK= 16#xxxx reaction active ATV powered off ER23 powered off "ER23 terminal display"...
  • Page 11 Supervision and control in LINE mode The ER23 control process using the communication bus is based on the CANopen CiA 402 profile status chart compatible with the IEC 61800-7 standard. Each state represents an aspect of the internal behaviour of the drive.
  • Page 12 Supervision and control in LINE mode CMD control word (W8501) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Fault state Enable Quick stop Enable voltage Switch on reset operation (active at 0) bit 15 bit 14 bit 13...
  • Page 13 Supervision and control in LINE mode ETA status word (W3201) bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Switch on Quick stop Operation Ready to switch Alarm Malfunction Switched on disabled active at 0 enabled bit 15 bit 14...
  • Page 14: Function Compatibility

    Function compatibility Incompatible functions The following function will be inaccessible or deactivated in the cases described below: Catch on the fly This is only possible for 2-wire level detection control (tCC = 2C and tCt = LEL or PFO). This function is locked if automatic injection on stopping is configured as DC (AdC = Ct). Function compatibility table The choice of application functions may be limited by the number of I/O and by the fact that some functions are incompatible with one another.
  • Page 15 To activate "+/- speed", first unassign the preset speeds and summing input 2. The following table indicates the factory-set input assignments and the procedure for unassigning them. Assigned input Function Code To unassign, set to: Page ER23-... Reverse 2 preset speeds 4 preset speeds Reference 1 Anything but AI1 Forward...
  • Page 16: Iec 61800-7 Variables

    IEC 61800-7 variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8601 6040 CMDD R/W IEC 61800-7 control word Identical to CMD (page 19). bit 0: "Switch on": active at 1 bit 1: "Disable Voltage": active at 0 bit 2: "Quick Stop": active at 0 bit 3: "Enable Operation": active at 1 bits 4 to 6: Reserved: set to 0 bit 7: Fault state reset: active on rising edge 0 ->...
  • Page 17 = "SOF": Motor overspeed 2310H = "OCF": Overcurrent 2320H = "OCF": Impeding short-circuit or = "OCF": Power module, specific to ER23-15.0.. 2330H = "SCF": Motor short-circuit (to ground) 2340H = "OCF": Motor short-circuit (phase to phase) 3110H = "OSF": Line supply overvoltage 3120H = "USF": Line supply undervoltage...
  • Page 18 IEC 61800-7 variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8607 - 6046 / 1 SMIL R/W Min. speed 8608 CiA 402: vl velocity min amount IEC 61800-7: Speed min amount Low speed, equivalent to LSP (page 27), but in rpm Unit: 1 rpm 32-bit word (low order: 8607, high order: 8608) Adjustment range: 0 to HSP (page 27)
  • Page 19: Control Variables

    Control variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8501 2037 / 2 CMD R/W Control word bit 0: "Switch on": active at 1 bit 1: "Disable Voltage": active at 0 bit 2: "Quick Stop": active at 0 bit 3: "Enable Operation": active at 1 bits 4 to 6: Reserved: set to 0 bit 7: Fault state reset: active on rising edge 0 ->...
  • Page 20 Control variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8504 2037 / 5 Extended control word bit 0 = 0: No action bit 0 = 1: Recall factory settings command (1). This bit automatically resets to 0 when the request is taken into account.
  • Page 21: Monitoring Variables

    Monitoring variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3201 2002 / 2 Status word bit 0: Ready to switch on bit 1: Switched on bit 2: Operation enabled bit 3 = 0: No detected fault bit 3 = 1: Malfunction, detected fault (FAI) bit 4: Voltage disabled (still equals 0) bit 5: Quick stop bit 6: Switch on disabled...
  • Page 22 12 = 1: Fast stop in progress bit 14 = 0 and bit 13 = 0: ER23 controlled via terminal block or built-in keypad (ER23..) bit 14 = 0 and bit 13 = 1: ER23 controlled via the remote display terminal...
  • Page 23 Monitoring variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3252 2002 / 35 LRS3 R Extended status word No. 3 bit 0 = 0: The reference is given by Fr1 bit 0 = 1: The reference is given by Fr2 bit 1 = 0: The command is given by Fr1 or Cd1 bit 1 = 1: The command is given by Fr2 or Cd2 bit 2 = 0: ACC and DEC are used as ramp parameters...
  • Page 24 33 = "OPF": Motor phase loss - 3 phases 34 = "COF": Communication interuption, fault line 2 (CANopen) 35 = "bLF": Brake control 36 = "OCF": Power module, specific to ER23-15.0... 55 = "SCF": Power module or motor short-circuit, detected at power up. 7132...
  • Page 25 13 and 14 = Same as ETI.13 and ETI.14: - bit 14 = 0 and bit 13 = 0: ER23 controlled via terminal block or built-in keypad (ER23..) - bit 14 = 0 and bit 13 = 1: ER23 controlled via the remote display terminal...
  • Page 26: Identification Variables

    Unit: 0.1 A 3010 2000 / B Drive type 0 = ER23 1 = ER23……(drive without built-in keypad) Europe 3 = ER23……(drive with built-in keypad) Asia 3401 2004 / 2 Drive firmware type The firmware type is specified by an ASCII letter "128": ER23...
  • Page 27: Configuration And Adjustment Variables

    Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3105 2001 / 6 Low speed Unit: 0.1 Hz Factory setting: 0 Adjustment range: 0 to HSP (Motor frequency at min. reference) 3104 2001 / 5 High speed Unit: 0.1 Hz Factory setting: if bFr = 50: 500, if bFr = 60: 600 Adjustment range: LSP to tFr...
  • Page 28 R/WS Nominal motor voltage given on the rating plate Unit: 1 V Factory setting: According to drive rating Adjustment range according to drive rating: ER23-K: 100 to 240 V ER23 3K: 100 to 240 V -.../ ER23 4K: 100 to 500 V -.../...
  • Page 29 Factory setting: if bFr = 50: 500 if bFr = 60: 600 Adjustment range: 100 to 5000 UnS (in volts) Note: The ratio must not exceed the following values: FrS (in Hz) ER23-...K: 7 max. ER23 3K: 7 max. -.../ ER23 4K: 14 max. -.../ ER23 6K: 17 max.
  • Page 30 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 9608 2042 / 9 R/WO Motor control auto-tuning DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH • During auto-tuning the motor operates at nominal current. • Do not service the motor during auto-tuning. Failure to follow these instructions will result in death or serious injury.
  • Page 31 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 9607 2042 / 8 R/WS Selection of the type of voltage/frequency ratio Factory setting: 2 0 = "L": Constant torque for motors connected in parallel or special motors 1 = "P": Variable torque for pump and fan applications 2 = "n": Sensorless flux vector control for constant torque applications 3 = "nLd": Energy saving, for variable torque applications not requiring high dynamics (behaves...
  • Page 32 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3052 2000 / 35 R/WS Source configuration DANGER UNINTENDED EQUIPMENT OPERATION Ensure that the selected macro configuration is compatible with the wiring diagram used. Failure to follow these instructions will result in death or serious injury. Factory setting: 1 Choice of source configuration.
  • Page 33 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11101 2051 / 2 R/WS 2-wire/3-wire control DANGER UNINTENDED EQUIPMENT OPERATION • Modifying parameter tCC will cause parameters rrS, tCt and all other functions assigning logic input, to return to their factory setting. •...
  • Page 34 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 4601 2010 / 2 AO1t R/WS Configuration of the analog output Factory setting: 2 1 = "10U": 0 - 10 V configuration (use terminal AOV) 2 = "0A": 0 - 20 mA configuration (use terminal AOC) 3 = "4A": 4 - 20 mA configuration (use terminal AOC) 5031 2014 / 20...
  • Page 35 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 5002 2014 / 3 R/WS Relay r2 Factory setting: 0 0 = "nO": Not assigned 1 = "FLt": Drive detected fault 2 = "rUn": Drive running 4 = "FtA": Frequency threshold reached (Ftd parameter page 28) 5 = "FLA": High speed (HSP) reached 6 = "CtA": Current threshold reached (Ctd parameter page 28) 7 = "SrA": Frequency reference reached...
  • Page 36 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8414 2036 / F R/WS Configuration reference 2 Factory setting: 0 0 = "nO": Not assigned 1 = "AI1": Analog input AI1 2 = "AI2": Analog input AI2 3 = "AI3": Analog input AI3 16 = "AIV1": Potentiometer If LAC = L2 or L3, the following additional assignments are possible:...
  • Page 37 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 8424 2036 / 19 R/WS Configuration of control channel 2 Factory setting: 10 Active if CHCF = SEP and LAC = L3 1 = "tEr": Terminal block control 2 = "LOC": Keypad control 3 = "LCC": Remote display terminal control 10 = "Mdb": Control via Modbus...
  • Page 38 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 64003 2262 / 4 R/WS Control via remote display terminal Factory setting: 0 Parameter active only with the remote display terminal option and if LAC = L1 or L2. 0 = "nO": Function inactive 1 = "YES": Enables control of the drive using the STOP/RESET, RUN and FWD/REV buttons on the display terminal.
  • Page 39 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 9001 203C / 2 ACC R/W Acceleration ramp time Unit: 0.1 s Factory setting: 30 Adjustment range: According to parameter Inr Defined for accelerating between 0 and the nominal frequency FrS (page 29). 9002 203C / 3 Deceleration ramp time...
  • Page 40 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11201 2052 / 2 R/WS Normal stop mode Factory setting: 0 Stop mode on disappearance of the run command or appearance of a stop command. 0 = "rMP": On ramp 1 = "FSt": Fast stop 2 = "nSt": Freewheel stop 3 = "dCI": DC injection stop...
  • Page 41 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11211 2052 / C Total DC injection braking time selected as normal stop mode Note: This setting is not related to the "automatic standstill DC injection" function. Unit: 0.1 s Factory setting: 5 Adjustment range: 1 to 300...
  • Page 42 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11801 2058 / 2 R/WS Summing input 2 Note The "Summing inputs" function may be incompatible with other functions (see page 14). Factory setting: 2 Can be used to sum one or two inputs to reference Fr1 only. 0 = "nO": Not assigned 1 = "AI1": Analog input AI1 2 = "AI2": Analog input AI2...
  • Page 43 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11402 2054 / 3 R/WS 4 preset speeds Factory setting: if tCC = 1: 0 if tCC = 0 or 2: 132 Selecting the assigned logic input activates the function (1). Check that PS2 has been assigned before assigning PS4.
  • Page 44 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11410 2054 / B preset speed Unit: 0.1 Hz Factory setting: 100 Adjustment range: 0 to 5000 (1) 11411 2054 / C preset speed Unit: 0.1 Hz Factory setting: 150 Adjustment range: 0 to 5000 (1) 11412...
  • Page 45 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11110 2051 / B R/WS Jog operation Factory setting: if tCC = 0 or 2: 0 if tCC = 1: 132 Selecting the assigned logic input activates the function. 0 = "nO": Not assigned 129 = "LI1": Logic input LI1 130 = "LI2": Logic input LI2...
  • Page 46 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11942 2059 / 2B PI regulator integral gain Unit: 0.01 Factory setting: 100 Adjustment range: 1 to 10000 Contributes to static precision during slow changes in the PI feedback. 11903 2059 / 4 PI feedback multiplication coefficient...
  • Page 47 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 11960 2059 / 3D Restart error threshold ("wake-up" threshold) Unit: 0.1 Factory setting: 0 Adjustment range: 0 to 1000 If the "PI" and "Low speed operating time"(tLS) (see page 28) functions are configured at the same time, the PI regulator may attempt to set a speed lower than LSP.
  • Page 48 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 9202 203E / 3 R/WS Switching for second current limit Factory setting: 0 Function active only if LAC = L2 or L3 (page 35). Selecting the assigned logic input activates the function. 0 = "nO": Not assigned 129 = "LI1": Logic input LI1 130 = "LI2": Logic input LI2...
  • Page 49 Nominal motor voltage (motor 2) given on the rating plate Unit: 1 V Factory setting: According to drive rating Adjustment range: According to drive rating: ER23-...K: 100 to 240 V ER23-.../3K: 100 to 240 V ER23-.../4K: 100 to 500 V ER23-...6K: 100 to 600 V...
  • Page 50 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 9721 2043 / 16 StA2 R/W Frequency loop stability, motor 2 Unit: 1% Factory setting: 20 Adjustment range: 1 to 100 Parameter active only if UFt2 = n or nLd. Used to adapt the return to steady state after a speed transient (acceleration or deceleration), according to the dynamics of the machine.
  • Page 51 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 7122 2029 / 17 R/WS Automatic restart DANGER UNINTENDED EQUIPMENT OPERATION • The automatic restart can only be used on machines or installations which do not pose any danger to either personnel or equipment.
  • Page 52 If OPL = OAC, bLC is forced to nO (page 47). 7002 2028 / 3 R/WS Configuration of line phase loss detection Factory setting: 1 except for ER23 M2: 0 This parameter is only active on 3-phase drives. 0 = "nO": Ignored 1 = "YES": Fast stop...
  • Page 53 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 7008 2028 / 9 OHL R/WS Stop mode in the event of the drive overheating OHF Factory setting: 1 0 = "nO": Ignored 1 = "YES": Freewheel stop 6 = "rMP": Stop on ramp 7 = "FSt": Fast stop 7009...
  • Page 54 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 7003 2028 / 4 R/WS Stop mode in the event of a loss of 4 - 20 mA signal (LFF) Factory setting: 0 0 = "nO": Ignored (only value possible if CrL3 3 mA, see page 33) 1 = "YES": Freewheel stop 4 = "LFF": The drive switches to the fallback speed (LFF parameter)
  • Page 55 Configuration and adjustment variables The following parameters (page and 56) do not revert to their factory setting when using the "Return to factory settings" function. Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3120 2001 / 15 R/WS Operating time reset to zero Factory setting: 0 0 = "nO": No 2 = "rtH": Operating time reset to zero...
  • Page 56 Configuration and adjustment variables Modbus CANopen Read/ Code Name/Description/Possible values address address Write 3003 2000 / 4 Display terminal locking code Allows access to the drive configuration only through an access code. When access is locked using a code, only the monitoring parameters can be accessed, with only a temporary choice of parameter displayed.
  • Page 57: Replacing An Er22 With An Er23

    If necessary, it is easy to replace an ER22 with a ER23 in an installation communicating via Modbus. In fact, most of the variables used in the ER22 are found in the ER23 with the same addresses (double addressing). • To replace an ER22, the ER22 addresses in this table can be used, but only these. All the other ER22 addresses must be replaced with those for the ER23.
  • Page 58: Code Index

    Code index Code Modbus address CANopen address Name Page 9012 203C / D 2nd acceleration ramp time 9001 203C / 2 Acceleration ramp time 10401 204A / 2 Automatic standstill DC injection AdCO 6051 201E / 34 CANopen: Drive address 6001 201E / 2 Modbus: Drive address...
  • Page 59 Code index Code Modbus address CANopen address Name Page 7214 202A / F Status of past detected fault No. 4 7006 2028 / 7 Stop mode in the event of an external fault EPF ErCO 6056 201E / 39 CANopen: error word ERRD 8606 603F...
  • Page 60 Code index Code Modbus address CANopen address Name Page LRS1 3250 2002 / 33 Extended status word No. 1 LRS3 3252 2002 / 35 Extended status word No. 3 3105 2001 / 6 Low speed 9603 2042 / 4 Nominal motor current given on the rating plate nCr2 9703 2043 / 4...
  • Page 61 Code index Code Modbus address CANopen address Name Page 12001 205A / 2 USPL/USPH scale factor...
  • Page 62 Code index Code Modbus address CANopen address Name Page 3102 2001 / 3 Switching frequency 7010 2028 / B Stop mode in the event of a Modbus serial link interuption SLF 9625 2042 / 1A Slip compensation SLP2 9725 2043 / 1A Slip compensation, motor 2 SMAL 8609 - 8610...
  • Page 63 Code Modbus address CANopen address Name Page 9623 2042 / 18 IR compensation/Voltage boost UFr2 9723 2043 / 18 IR compensation/Voltage boost, motor 2 9607 2042 / 8 Selection of the type of voltage/frequency ratio UFt2 9707 2043 / 8 Selection of the type of voltage/frequency ratio for motor 2 3207 2002 / 5...
  • Page 64: Address Index

    Address index Address index Modbus address CANopen address Code Name Page 3003 2000 / 4 Display terminal locking code 3006 2000 / 7 Function access level 3010 2000 / B Drive type 3011 2000 / C Drive rating 3012 2000 / D VCAL Drive voltage 3015...
  • Page 65 Address index Modbus address CANopen address Code Name Page 7004 2028 / 5 Controlled stop on mains power break 7006 2028 / 7 Stop mode in the event of an external fault EPF 7007 2028 / 8 Derated operation in the event of an overvoltage 7008 2028 / 9 Stop mode in the event of the drive overheating OHF...
  • Page 66 Address index Modbus address CANopen address Code Name Page 8609 - 8610 6046 / 2 SMAL Max. speed 8611 - 8612 6048 / 1 SPAL Acceleration - Speed delta 8613 6048 / 2 SPAT Acceleration - Time delta 8614 - 8615 6049 / 1 SPDL Deceleration - Speed delta...
  • Page 67 Address index Modbus address CANopen address Code Name Page 10006 2046 / 7 Motor current threshold for brake release 10007 2046 / 8 Brake release pulse 10401 204A / 2 Automatic standstill DC injection 10402 204A / 3 tdC1 Automatic standstill DC injection time 10403 204A / 4 SdC1...
  • Page 68 Modbus address CANopen address Code Name Page 11908 2059 / 9 Internal PI reference enabled 11909 2059 / A 2 preset PI references 11910 2059 / B 4 preset PI references 11920 2059 / 15 Internal PI reference 11921 2059 / 16 2nd preset PI reference 11922 2059 / 17...
