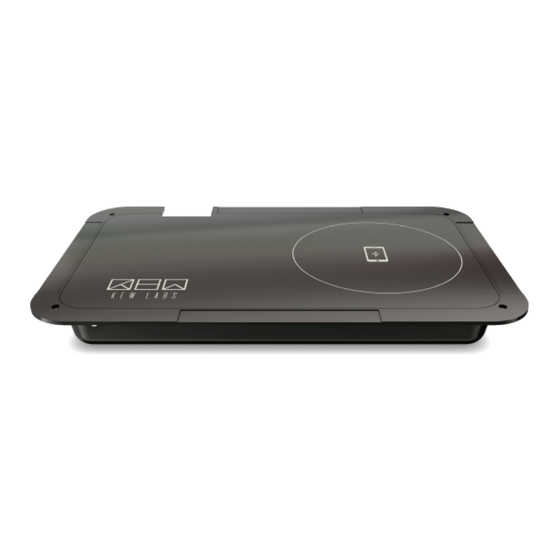

- Page 1 UTS-1 User Instructions Installation Guide...
- Page 2 IN THE BOX UTS - 1 charger Apple & Samsung phone calibration template User instructions 9cm + 8cm stickers Cable management clips Screws Country plug adaptor Power adaptor UTS-1 User Instructions Installation Guide 1 of 15...
-
Page 3: Check Before Installation
CHECK BEFORE INSTALLATION If you have a phone case please ensure it is flat and does not contain any metal, center magnets, card holders, pop sockets or kickstands. Ensure the surface under your table is flat. Prepare a pencil and screwdriver if needed. Check installation area is within 1.5m (4’... - Page 4 STAGE 1 - CHARGER INSTALLATION 1. Use the desk sizing tool on the box to measure your table’s compati- bility. If you are not within the coloured area, you should not install the charger. Please note the H (high) and L (low) setting indicators for later. 2.
- Page 5 Plug the power cable into either port. Use the second port to connect second UTS-1. 6. Connect up to two UTS-1 with daisy chain power adapator kit.* *Daisy chain power adaptor and cable sold separately from single charger unit. 4 of 15...
- Page 6 STAGE 2 - PHONE CALIBRATION Phone calibration - making sure your phone is positioned correctly and charging. 1. Switch the toggle to “C” position. 2. Select a sticker template guide according to personal preference. See suggested sizing below. Small phone 8cm Max or + model use template 9cm template...
- Page 7 4. Move the template and phone together gently holding the side handles to slowly move your device closer to the charging area and listen for the increasing speed of the audio beeps. - Please allow up to 1 second before moving your device to re-position.
- Page 8 To disable or enable buzzer Repeat the above step to disable or enable the buzzer depending on preference. Kew Labs advises using the audio confirmation system to start with to determine optimal phone placement accuracy. Note: The recalibration process or multiple calibration attempts will toggle the audio confirmation on/off.
-
Page 9: General Use Instructions
1. Place your phone face up aligning the center of your phone to the center of the sticker. 2. The UTS-1 will make an audio confirmation beep to indicate the accuracy of your phone positioning. A beep is confirmation that your phone has been placed in an optimal position for charging and fast charging. -
Page 10: Troubleshooting And Faqs
Why has my phone stopped charging? The UTS-1 is designed to recognise and react to temperature changes within your phone which can occur after extra long charging periods of 3 hours or more. In these instances, the charger may enter a standby mode to allow your device to cool if required by your phone until the device requests more power. - Page 11 ≥80% in IOS models due to Apple software requirements designed to limit battery deterioration during wireless charging. The UTS-1 recognises IOS charging signals and corresponds by adapting charging speeds until your device requests more power. Please try turning OFF ‘Optimised Battery Charging’ in your ‘Settings’.
-
Page 12: Specifications
SPECIFICATIONS Fast Charging Speeds Qi enabled Apple 7.5W / Samsung 9W Fast Charge. Charging Distance - 18mm ~ 25.4mm (0.71’ ~ 1.0’) L - 18mm - 21mm (0.71-0.83”) H - 22mm - 25.4mm (0.87-1.0”). Normal Charging Qi enabled Google , Huawei , Sony , Nokia , LG , Speed Xiaomi 5W Charge. -
Page 13: System Fault
SYSTEM FAULT Under Voltage Protect (UVP), Over Voltage Protect (OVP), Over Current Protect (OCP): Proper power is not reaching the charger. Can be caused by incorrect adaptor usage, overloaded multi-plug adaptor set up, improper table thickness setting, metal objects placed very near to the installation of charger. - Page 14 WARRANTY Kew Labs warrants to the purchaser that your product shall be free from defects in material and workmanship for the length of time, identified on your product package and/or at www.kewlabstech.com under the warranty specification for your product, from the date of purchase.
-
Page 15: Safety Instructions
SAFETY INSTRUCTIONS • Avoid contact with water and do not submerge. • Avoid extreme temperatures. • Avoid dropping. • Use original or certified cables. • Do not clean with corrosive substances or oils. • Do not disassemble. • This product is in compliance with the radio interference. requirements of the European Community. - Page 16 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or...
