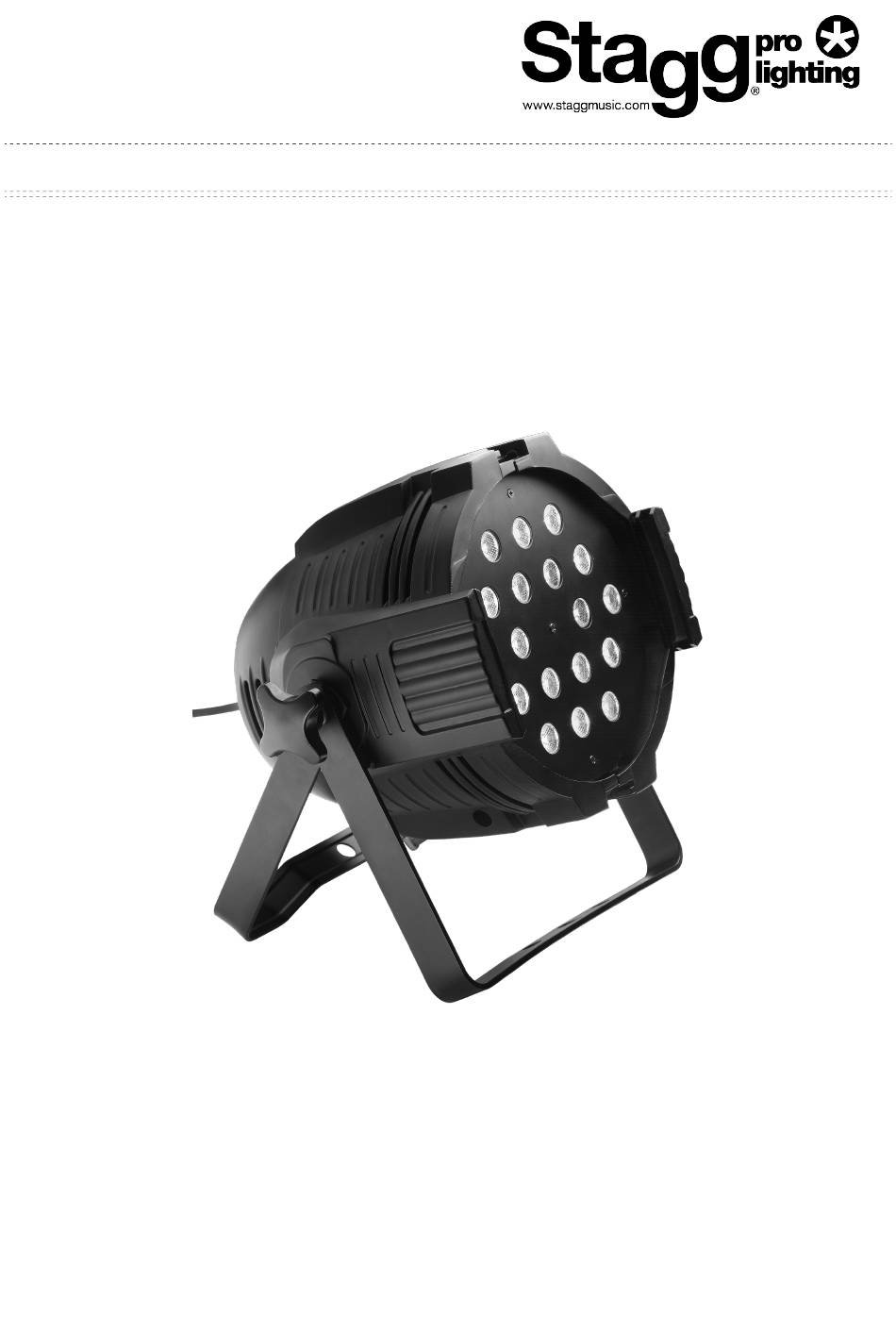

- Page 1 User Manual KINGPAR 5 SLI-KINGPAR5...
- Page 2 ...
- Page 3 Before Usage This package contains - 1x Kingpar 5 - 1x Power Cable - 1x User Manual Unpacking: Thank you for purchasing this product, it has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the packaging for damage that may have occurred during shipping.
- Page 4 Specifications: • Voltage: AC100V~240V, 50~60HZ • Power Consumption: 73W • LED Quantity: 6x Cool white, 12x Warm white • Beam Angle: 25° • IP Grade: IP20 • DMX channels: 5 • Packaging Size: 300*300*380 mm • Net weight: 3,1Kg •...
- Page 5 Installation 1. The product can be hung or placed on a solid surface with the double mounting brackets 2. If you install the light in a hanging position, always use a suitable mounting position and a clamp or screw that is strong enough to hold the product without stress.
- Page 6 DMX 512 Connection The DMX512 signal of the controller is connected to the Input and (1 Earth, 2 Negative, 3 Positive). The length of the signal cable should never exceed 100 meters in order to avoid the interference. Please refer to the details in following pictures.
- Page 7 Menu Map...
- Page 8 Operating Instructions [DMX address set up] • Press MENU then Up or DOWN until "Addr" is displayed, then press ENTER • By UP and DOWN to change the DMX address Press ENTER to confirm the DMX address [STATIC COLOURSET UP] •...
- Page 9 You can adjust each setting individually by selecting the setting with ENTER, and using UP or DOWN to change the value. Push ENTER to confirm, push MENU to go back to the main menu and use UP and DOWN to choose a different setting.
- Page 10 [slave mode] • Press MENU, then press UP or DOWN until SLAv is displayed, then press ENTER. The display will show "Sla" and follow the master's settings. [software version] • Press MENU, then press UP or DOWN until vEr is displayed, then press ENTER.
- Page 11 ...
- Page 12 IMPORTANT SAFETY INSTRUCTIONS READ AND KEEP THESE INSTRUCTIONS. HEED ALL WARNINGS. • If, after you have followed the instructions outlined above, this device fails to function, please contact your dealer. Under no circumstances should this device be opened. Leave all servicing to qualified personnel.
