Page 1: User Manual

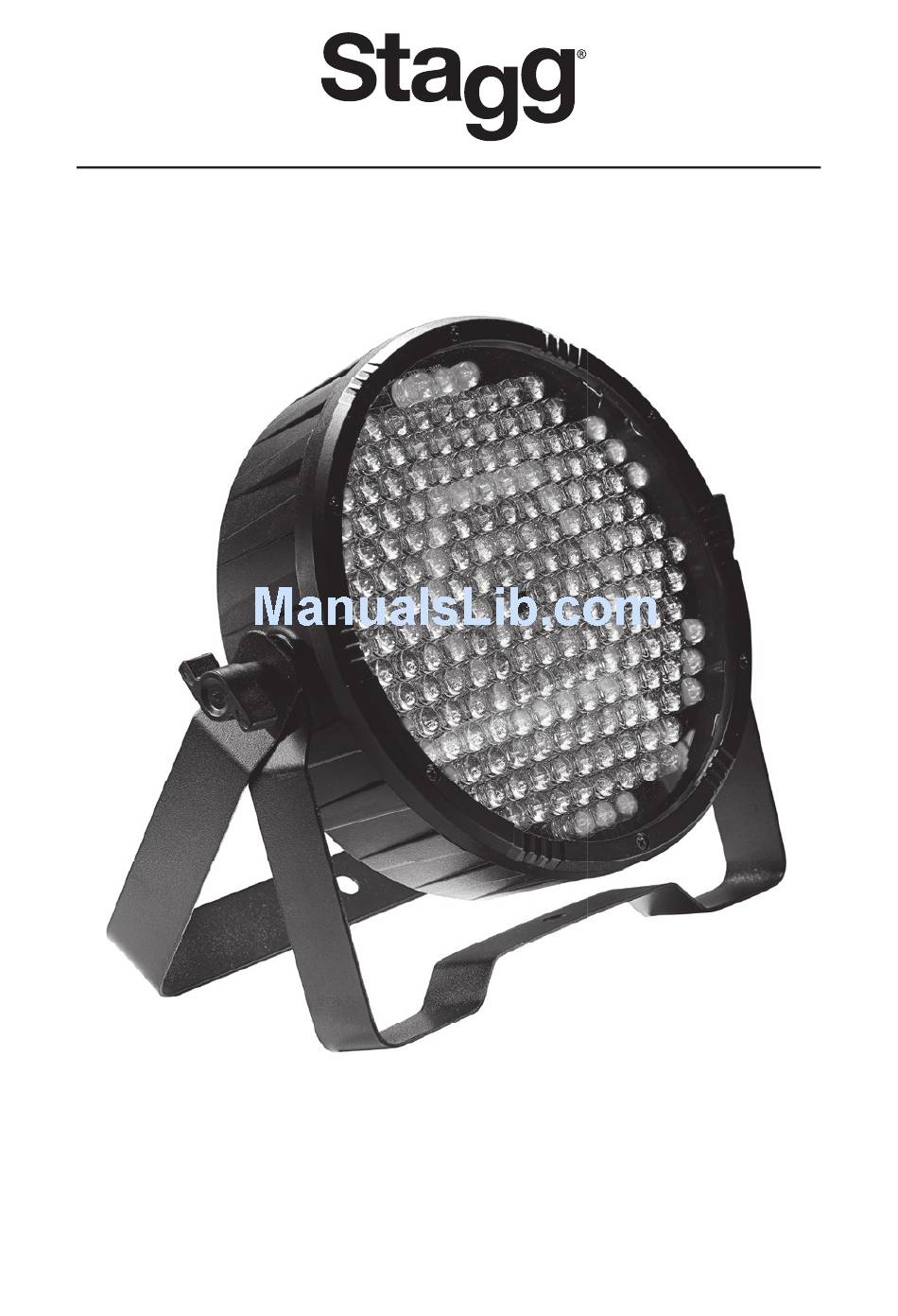

USER MANUAL EcoPar186 SLI-ECOPAR186 Please read the instructions carefully before use... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... -
Page 4: Installation
• Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. • Avoid placing power wires next to other cables. • Disconnect the mains power before replacing or servicing the fusewires or the lamp. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS - LED: 186 x 0.1 watt - Illuminance: 1200 lux at 3 metres (9.8’) - Beam angle: 25° - Protocol: DMX-512, 4 or 8 channels - Functions: Dimmer (0-100 %), strobe, auto, sound control, master/slave - Display: 4-digit 24 cm - Housing: ABS - Fixation: 2 brackets (to hang or lay the spotlight) - Page 6 SETTING THE FIXTURE DMX mode Addr Channel selection mode ChMd Master and slave mode SLMd MASt SL 1 SL 2 SL 3 SL 4 Performance mode ShMd CoLo Co 1-7 Stro FAde SP 1 SP 8 Soun Auto Switching on or off the display MENU Reversing the display dISP...
-
Page 7: Channel Selection Mode
DMX Mode With the menu button, select the DMX mode (Addr) and press the enter key to confirm. Then use the up and down buttons to choose the desired DMX channel (1 – 512) and press the enter key to confirm. Press the menu button to return to the main menu. -
Page 8: Performance Mode
Master and slave mode With the menu button, select the master and slave mode (SLMd) and press the enter key to confirm. Then use the up and down buttons to choose the desired option, that is master (MASt), slave 1 (SL1), slave 2 (SL2), slave 3 (SL3) or slave 4 (SL4), and press the enter key to confirm. -
Page 9: Manual Mode
White balance With the menu button, select the white balance mode (bALA) and press the enter key to confirm. Then use the up and down buttons to select the desired colour, that is red (red), blue (bLue) or green (Gree), and press the enter key to confirm. Then use the up and down buttons to select a value between 125 and 255 and therefore determine the colour temperature. -
Page 10: Dmx512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). -
Page 11: Fixture Cleaning
FIXTURE CLEANING An internal cleaning must be carried out periodically to optimize the light output. The cleaning frequency depends on the environment in which the fixture operates: a damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. Clean the fixture with a soft cloth and normal glass cleaning fluid. - Page 12 10/2016...
