Page 1: User Manual

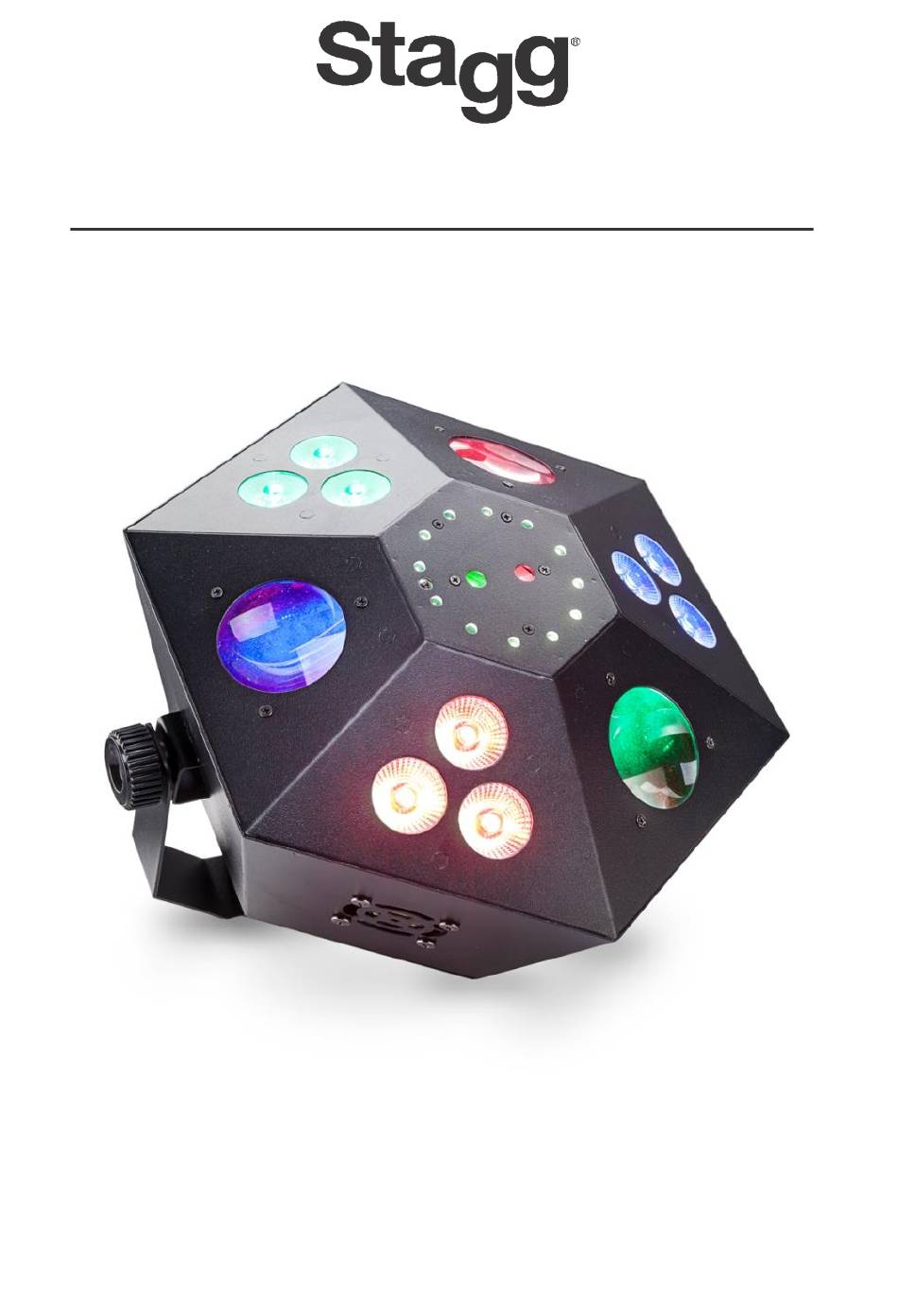

USER MANUAL TRANCE60 SLE-TRANCE60 Please read the instructions carefully before use. -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... - Page 3 • Do not operate in a dirty or dusty environment. Clean fixtures regularly. • Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. •...
-
Page 4: Laser Warnings And Safety
LASER WARNINGS AND SAFETY Our Trance fixtures contain high power laser devices internally. Do not open the laser housing, due to the potential exposure to unsafe levels of laser radiation. The laser power levels, if the unit is opened, can cause instant blindness, skin burns and fires. - Page 5 Do not think that because this laser splits the laser beam into hun- dreds of beams and that the laser beam is scanned out in high speed, that an individual laser beam is safe for eye exposure. This laser uses dozens of milliwatts of laser power (Class 3B levels inter- nally) before it splits into multiple beams (Class 3R levels).
- Page 6 Do not point lasers at people or animals. Never look into the laser aperture or laser beams. Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc. Do not point lasers at highly reflective surfaces, such as windows, mirrors and shiny metal.
-
Page 7: Installation
INSTALLATION The unit should be mounted via its screw holes. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support 10 times the unit’s weight. -
Page 8: Setting Up The Device
SETTING UP THE DEVICE... - Page 9 DMX MENU With the menu button, select the DMX mode and press the enter key. Then use the up and down buttons to choose the desired DMX channel (1 – 512) and press the enter key to confirm. The Trance 60 works on 11 or 23 channels. To select the channel mode, push on the menu button and go to Chmd.
- Page 10 23 Channels Module Channels Function Value Dimmer 000-255 0%~ 100% 000-008 Open Strobe 009-255 Stroboscope (Speed 0 - 100%) Color Wash 1 000- 255 See colour table Wash Color Wash 2 000- 255 See colour table Color Wash 3 000- 255 See colour table Wash Macro 000- 255 See Macro table Macro speed...
- Page 11 Wash Macro table 000-007 Blackout 008-024 Red 025-041 Green 042-057 Blue 058-074 White 075-090 Red +Green 091-107 Red +Blue 108-123 Red +White Color 124-140 Green+Blue 141-156 Green+White 157-173 Blue+White 174-189 Red +Green +Blue 190-206 Red +Green +White 207-222 Red +Blue +White 223-239 Green +Blue +White 240-255 Red +Green +Blue + White LED Beam table...
-
Page 12: Master/Slave Mode
Macro table 000-007 Blackout 008-037 Show 1 038-067 Show 2 068-097 Show 3 098-127 Show 4 Macro 128-157 Show 5 158-187 Show 6 188-217 Show 7 218-247 Show 8 248-255 Random Show MASTER/SLAVE MODE With the menu button, select the master/slave mode (SLnd) and press the enter key to confirm. - Page 13 LED MENU This menu activates the automatic shutdown of the led display. On “off” position, the led display will automatically shut down the display to make the fixture as discreet as possible. REVERSE DISPLAY MENU This menu allows you to reverse the LED display. This is useful if you hag the unit upside down for example.
-
Page 14: Dmx512 Connections
Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). FIXTURE CLEANING An cleaning must be carried out periodically to optimize the light output. The... - Page 15 For more info and the latest product updates: staggmusic.com EMD Music S.A. Boulevard Général Wahis 16A 1030 Brussels Belgium 05/2018...
