T83646v2 FAQS ................................................................................................................... 1
AC adapter .............................................................................. Error! Bookmark not defined.
Batteries ................................................................................................................................ 2
Weather Station Factory Restart .................................................................................. 2
Remote Temperature Sensor .......................................................................................... 2
Compatible Remote sensors ............................................................................................. 3
Quick Connect ..................................................................................................................... 3
Remote Temperature Signal Strength ............................................................................ 3
Dashes show for Remote Temperature ........................................................................... 3
Power Requirements .......................................................................................................... 4
Inaccurate Remote Temperature Reading ...................................................................... 4
Intermittent Remote Temperature .................................................................................. 4
Remote Temperature is stuck or HH.H, LL.L .................................................................. 4
Remote sensor drains batteries quickly .......................................................................... 5
Remote sensor fell. The sensor no longer works .......................................................... 5
Temperature/Humidity Trend Arrows .............................................................................. 5
MIN/MAX Temperature readings ...................................................................................... 6
Heat Index/Dew Point/Mold Risk...................................................................................... 6
Setup with Multiple Sensors .............................................................................................. 7
Mounting/Positioning Remote sensor .............................................................................. 7
Position Weather station .................................................................................................... 8
Distance/Resistance/Interference .................................................................................... 9
Temperature Alerts ........................................................................................................ 9
Weather Station .................................................................................................................11
Power Requirements .........................................................................................................11
12-Hour or 24-Hour time format ....................................................................................11
Fahrenheit/Celsius .............................................................................................................11
Dashes, HH.H, LL.L or stuck Indoor Temperature/Humidity ......................................11
Inaccurate Indoor Temperature Reading .......................................................................12
Set Time Alarm...................................................................................................................12
Activate/Deactivate time alarm .......................................................................................12
Snooze Alarm .....................................................................................................................12
Manually Set Time/Date: Program Menu .....................................................................13
Weather station is dim ......................................................................................................13
La Crosse Technology, Ltd.

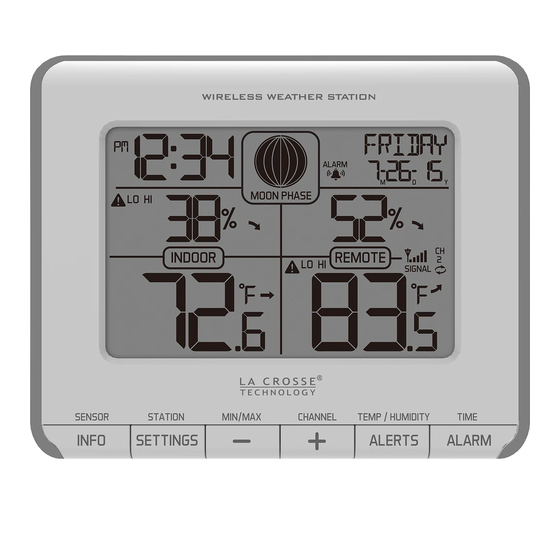

T83646V2 FAQS
CONTENTS
www.lacrossetechnology.com/support
Page 1
Advertisement
Table of Contents
Related Manuals for La Crosse Technology T83646V2
Summary of Contents for La Crosse Technology T83646V2
-
Page 1: Table Of Contents
The links below will work in most PDF viewers and link to the topic area by clicking the link. We recommend Adobe Reader version 10 or greater available at: http://get.adobe.com/reader CONTENTS T83646v2 FAQS ........................1 AC adapter ................Error! Bookmark not defined. Batteries ..........................2 Weather Station Factory Restart .................. 2 Remote Temperature Sensor .................. -
Page 2: Batteries
For optimum 433MHz transmission, place the remote sensor no more than 300 feet (91 meters, open air) from the weather station. See the section on mounting distance/resistance/interference for details on mounting the remote sensor. Remote Temperature Sensor La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 2... -
Page 3: Compatible Remote Sensors
Turn the weather station 90 degrees towards the remote sensor to provide better reception. This allows more antenna surface to face the remote sensor signal. Try the quick connect factory restart. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 3... -
Page 4: Power Requirements
If the temperature remains on while in the house, then it is likely a distance/resistance issue. Move the remote sensor to different locations outside to find a location where the temperature reading will hold. Remote Temperature is stuck or HH.H, LL.L La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 4... -
Page 5: Remote Sensor Drains Batteries Quickly
Note: Be sure to order the correct model and frequency to avoid receiving the incorrect item. Call La Crosse Technology® Store at 608-785-7939 or e-mail from the store website if you are unsure about the correct item to order. Each item carries the original new product warranty and includes access to La Crosse Technology®... -
Page 6: Min/Max Temperature Readings
Dew Point will show instead of the remote ambient temperature. The words “Dew Point” will show near remote temperatures. Note: Dew Point is lower than the actual temperature. Mold Risk (Remote and Indoor): La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 6... -
Page 7: Setup With Multiple Sensors
First: Place the remote sensor in the desired shaded location and the weather station in the home. Wait approximately 1 hour before permanently mounting the remote sensor to ensure that there is proper reception. POSITION La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 7... -
Page 8: Position Weather Station
Be aware of electrical wires and plumbing within a wall. This will interfere with RF (radio frequency) signal reception. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 8... -
Page 9: Distance/Resistance/Interference
Explanation: The remote and indoor temperature alerts are set in two separate steps. Set the alert value. Arm/Disarm the alert. Select Temperature Alert Values: The forecast station offers individual, programmable high and low temperature and humidity alerts. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 9... - Page 10 3. The HI or LO alert icon appears when each alert is armed. 4. Press the − button to disarm the selected alert. 5. The HI and LO alert icon will not show when disarmed. Temperature Alert Sounds La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 10...
-
Page 11: Weather Station
First Quarter and Last Quarter moons occur when the moon is at a 90 degree angle to the earth and sun. We see half of the moon illuminated and the other half is in shadow. Dashes, HH.H, LL.L or stuck Indoor Temperature/Humidity La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 11... -
Page 12: Inaccurate Indoor Temperature Reading
To stop alarm for one day, press ALARM button, while in snooze mode. The bell icon will remain solid. Note: When the alarm sounds, it continues for 2 minutes and then shuts off completely. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 12... -
Page 13: Manually Set Time/Date: Program Menu
25.Confirm with the SETTINGS button and select date format. 26.M/D will flash. 27.Press and release the + or – buttons to select date format M/D (month/day) or D/M (day/month). 28.Confirm with the SETTINGS button and exit. Weather station is dim La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 13... - Page 14 Weather station has missing segments Explanation: When parts of numbers, letters, or pictures are missing on the display, it is often power related. Batteries may be overpowered or underpowered. Remove batteries from weather station. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 14...
- Page 15 Press any button 20 times. Leave the weather station unpowered for 1-2 hours. Install fresh alkaline batteries with correct polarity. La Crosse Technology, Ltd. www.lacrossetechnology.com/support Page 15...
