Replacing a SCSI Card

Removing and Replacing the SCSI Card

Remove the PCI retention clip.
1
The PCI retention clip is the plastic component located at the rear of the server.
Lift the clip out of the server and set it aside.
Remove the failed SCSI card from its slot.
2
Install the new SCSI card.
3
2
Copyright © 2004, Snap Appliance, Inc. All rights reserved. Information in this document is subject to change without notice and does not
represent a commitment on the part of Snap Appliance or any of its subsidiaries.
Snap Server 4200/4500

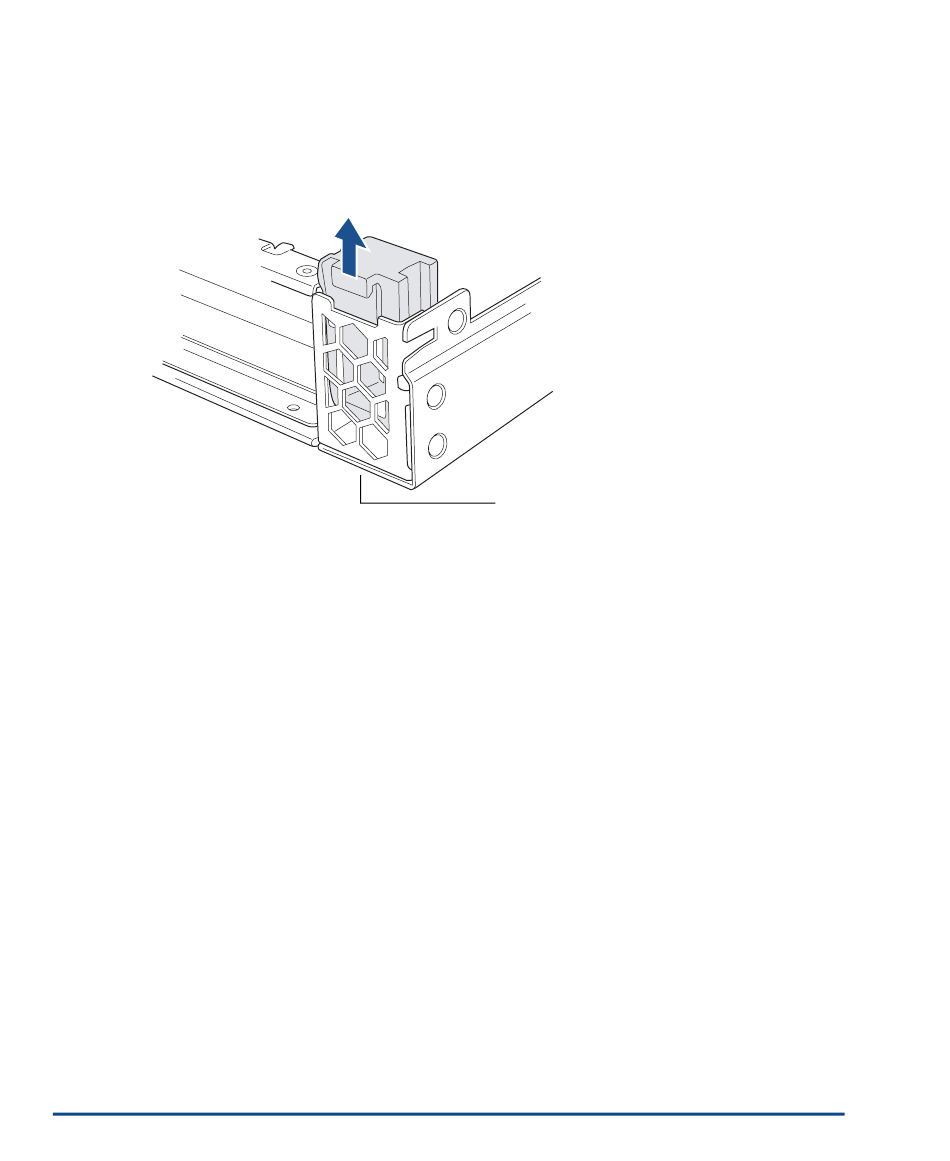

Back right corner of server (back view)
